Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m

China Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m supplier
Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m supplier Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m supplier

Large Image :  Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: aluminum crimped wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: pallets or wood case
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 1000 meter per week
Contact Now
Detailed Product Description
Wire Diameter: 2mm Mesh Openning: 1/2" X 1/2"
Size: 1.20m Width X 100m Length Name: Aluminum Crimped Wire Mesh
Wire Materials:: Stainless Steel Wire General Use:: Screening In Mine

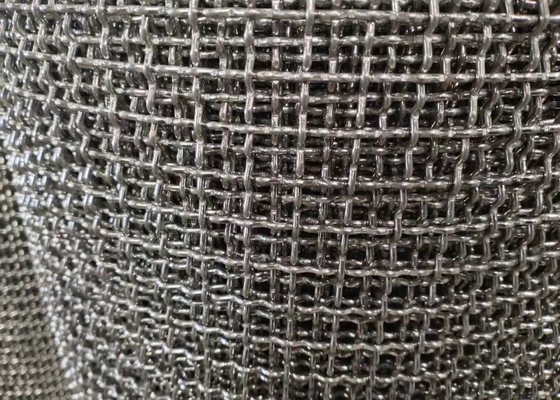

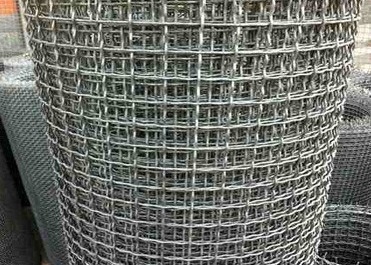

1/2" x 1/2" 2mm Wire Diameter Aluminum Crimped Wire Mesh 1.20m width x 100m Length



Crimped wire mesh can be also known as the iron crimped mesh, stainless steel crimped mesh and black iron crimped mesh according to different materials. It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type.

They enjoy the features of strong structure, loading capacity and keeping forms.

Crimped wire mesh products are used as fence or filter in a lot of industries. Heavy type crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Light type crimped wire mesh can be used to roast for food or meat. It has the advantage of heat resistance, corrosion resistance as well as nonpoisonous, tasteless and convenient for handling.



Crimped Wire Mesh Netting



Wire Materials: stainless steel wire, brass wire, high carbon steel wire, galvanized iron wire, galvanized steel wire, non-ferrous metal wire, high quality 65Mn(65 Manganese steel)

Weaving Patterns: Weaving after crimping,Double Crimp,flat top,inter crimp,rectangular Slot and long Slot.



Hot Products:
SS 316 wire mesh, plain weave, crimped, 3mm × 1" aperture, 1m wide × 15m long.
Crimped mesh made by carbon iron 12 mesh / inch, wire diameter 0.8mm, width of mesh 1700mm. length 30m for testing.
Steel Wire Cloth for vibratory mining screen, with 4.76/15.87/50.80/76.20/101.60mm opening.
Aluminum crimped wire screen panel with 2 inch openings and 1/4 diameter mesh, used for fabricating into balcony rail fillers.
Plain weaving woven cloth with pre-crimped (warp and weft wire) mesh in hard hot-dip galvanized wire 8 mesh × 8 mesh × 0.70mm, 0.9m - 2.0m width.



General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.





Crimped Wire Mesh
Wire Gauge(SWG) Wire Diameter(mm) Mesh/Inch Aperture(mm) Weight(kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5

2





Weave type of crimped wire mesh

plain crimped

double inter crimped

single inter crimped

lock crimped

flat top crimped



aluminum crimped woven wire mesh

Aluminum Crimped Woven Wire Mesh Partern



Type of crimped wire mesh

stainless steel crimped bend mesh

black steel wire crimped bend mesh

electric or hot dipped galvanized before woven

electric or hot dipped galvanized after woven



Aluminum crimped wire mesh-a0001

Aluminum crimped wire mesh-a0001

Aluminum crimped wire mesh-a0002

Aluminum crimped wire mesh-a0002

Aluminum crimped wire mesh-a0003

Aluminum crimped wire mesh-a0003

Aluminum crimped wire mesh-a0004

Aluminum crimped wire mesh-a0004



Welded Stainless Steel Woven Wire Mesh , Aluminum Crimped Metal Mesh Panels 1.20m X 100m

Aluminum crimped wire mesh-a0005



aluminum crimped wire mesh-a0006

Aluminum crimped wire mesh-a0006



Aluminum Crimped Woven Wire Mesh - A0007

Aluminum Crimped Woven Wire Mesh - A0007
