Twisted Bar Galvanized Steel Grating Wire Mesh Screen Driveway Grates 1000x5800mm

China Twisted Bar Galvanized Steel Grating Wire Mesh Screen Driveway Grates 1000x5800mm supplier

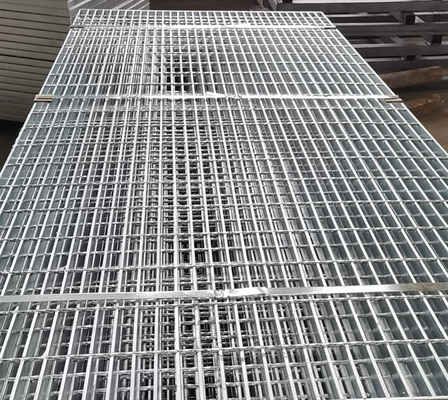

Large Image :  Twisted Bar Galvanized Steel Grating Wire Mesh Screen Driveway Grates 1000x5800mm

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: G325/30/100

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 1000pieces per week
Contact Now
Detailed Product Description
Type: G325/30/100 Bar Type: Twisted Bar
Size: 1000x5800mm Name: Galvanized Steel Driveway Grates Grating

G325/30/100 Twisted Bar Galvanized Steel Driveway Grates Grating 1000x5800mm

1, Introduce:



Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.



2. steel grating specification- galvanized steel driveway grates grating

panel size available(black grating): 1000x5800mm or 1000x6000mm



Bearing bar pitch Cross bar pitch load steel size ( Width ×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch load steel size (Width ×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50





3. Specification of  galvanized steel driveway grates grating

Bearing bar type Flat bar I bar Serrated bar
Cross bar type Twisted bar Round bar flat bar
Production process welded Pressure locked
Surface treatment Self-colour Galvanized painted
application Platform walkway&floor Trench cover Steel stair treads
  Suspended ceiling Barrier fence



bearing bar types:

serrated type,flat type,I type



4.Steel Grating Standard-- Galvanized Catwalk Steel Grating



Steel Grating Standard
  Steel Grating Standard Steel Standard Galvanizing Standard
China Standard YB/T 4001.1-2007 GB700-88 GB/T13912-2002
USA Standard ANSI/NAAMM (MBG531) ASTM (A36) ASTM (A123)
U.K. Standard BS4592 BS4360 (43A) BS729
Australia Standard AS1657 AS3679 AS1650
Deutsche Standard DIN24537 DIN17100-80 DIN50976
