Flattened Heavy Gauge Expanded Metal Mesh Fabric Raised Surface 1.2x2.4 M Size

Flattened Heavy Gauge Expanded Metal Mesh Fabric  Raised Surface 1.2x2.4 M Size

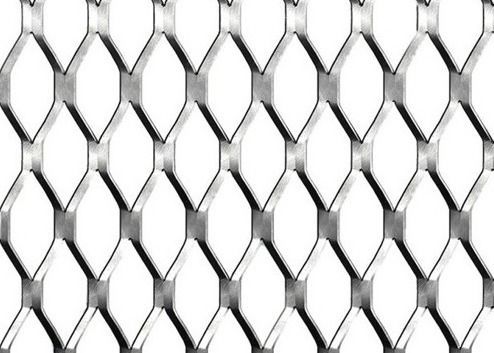

Flattened Heavy Gauge Expanded Metal Mesh Fabric  Raised Surface 1.2x2.4 M Size Flattened Heavy Gauge Expanded Metal Mesh Fabric  Raised Surface 1.2x2.4 M Size

Large Image :  Flattened Heavy Gauge Expanded Metal Mesh Fabric Raised Surface 1.2x2.4 M Size

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-707
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loosed packed or palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 5000 pcs one month
Detailed Product Description
Material: Aluminum Sheet, Stainless Steel Sheet Thickness: 1.0 - 6.0 Mm
Mesh: 30 X 60 Mm, 50 X 100 Mm Surface Finish: Nature
Hole Shape: Diamond Size: 1.0 X 2.0 M, 1.2 X 2.4 M, 1.0 X 30 M
High Light:

expanded metal lath

,

expanded mesh sheet

Raised Surface Expanded Metal Mesh with 1.2 x 2.4 m Size





Product descriptions

Manufactured by passing the standard expanded sheet through a cold-roll reducing mill. The metal sheets are slit and stretched with each stroke of the upper die, forming a uniform diamond pattern. Stretched metal mesh has flat neat surface with no burrs. The stretched metal sheet ( black steel or galvanized steel) is available with different hole apertures and sheet thicknesses for construction of fencing system, ventilation sheet or wall cladding decoration uses.



Standard Expanded Metal Mesh diamond-shaped openings have a slightly raised surface unlike the Flattened Expanded Metal Mesh patterns. This product comes in a wide variety of opening sizes (long way of the diamond – 3.375 to .345 inches), gauges (thickness of strand), and materials (plain or galvanized steel, aluminum or stainless steel).



Expanded Metal Mesh exhibits a high weight to strength ratio, and is often used to protect people or machines by stopping a specific size material from entering a specific area. All Metals such as Stainless Steel Alloys, Aluminum, Steel, Titanium, & Copper, can all be expanded for various uses including enclosures, support, protection, decoration or filtration.



Standard Expanded Metal (available in aluminum, stainless and galvanized.)

Size (inch)& style No. Weight per 100sq.ft Center to center opening strand Overall thickness (inch)
inches inches inches
A B C D
width length width length width thick
3/16 # 24 50 0.200 0.50 0.166 0.437 0.050 0.024 0.086
  # 22 62 0.200 0.50 0.166 0.437 0.050 0.030 0.088
  # 20 75 0.200 0.50 0.166 0.437 0.050 0.036 0.090
1/4 # 20 86 0.255 1.00 0.172 0.719 0.073 0.036 0.125
  # 18 114 0.255 1.00 0.172 0.719 0.073 0.048 0.125
1/2 # 20 43 0.500 1.20 0.438 0.938 0.072 0.036 0.124
  # 18 70 0.500 1.20 0.438 0.938 0.088 0.048 0.155
  # 16 86 0.500 1.20 0.375 0.938 0.086 0.060 0.157
  # 13 147 0.500 1.20 0.313 0.938 0.096 0.092 0.182
3/4 # 16 54 0.923 2.00 0.813 1.750 0.099 0.060 0.186
  # 13 80 0.923 2.00 0.750 1.688 0.096 0.092 0.195
  # 10 120 0.923 2.00 0.750 1.625 0.144 0.092 0.282
  # 9 180 0.923 2.00 0.688 1.563 0.148 0.134 0.300
1-1/2 # 18 20 1.330 3.00 1.313 2.625 0.067 0.048 0.140
  # 16 40 1.330 3.00 1.250 2.625 0.107 0.060 0.211
  # 13 60 1.330 3.00 1.188 2.500 0.104 0.092 0.215
  # 10 79 1.330 3.00 1.188 2.500 0.137 0.092 0.289
  # 9 120 1.330 3.00 1.125 2.375 0.142 0.134 0.295
  # 6 250 1.330 3.00 1.000 2.313 0.201 0.198 0.425



Features:
It is easily processing, has uniform stretched holes and has versatile applications.

Flat metal mesh sheet offers high rigidity in a variety of sizes and weights. The angles of the diamond strands allow maximum air circulation and distribute stress on the metal to supporting frames. The galvanized steel and black steel expanded diamond mesh is the most versatile expanded sheet materials. It can be made with different hole apertures and metal thicknesses to suit specific individual applications.



Uses: Standard Diamond Mesh fabricated from low carbon steel plates is ideal for use wherever a strong, durable, lightweight surface is needed, some of typical uses as following:

• Sunshade and Ventilation Screening effect - light and vision can be controlled
• Processed in forms of angle beads or corner beads. Working as A reinforcing agent - in concrete, plaster and wall buildings.
• Heat conduction and diffusion sheet - for grills and high temperature processing
• Security and safety - for fencing, cages and enclosures, machine guarding, shielding panels
• Architectural Cladding Panels - for protection and decoration of roof, wall, facade and interior and exterior partitions.



Standard Expanded Metal Mesh Standard Expanded Metal Mesh
Standard Expanded Metal Mesh Standard Expanded Metal Mesh
Standard Expanded Metal Mesh Standard Expanded Metal Mesh
