Product Details:
Payment & Shipping Terms:
|
| Diameter: | 500mm | Material: | Stainless Steel 304 |
|---|---|---|---|
| Slot (mm): | 0.010, 0.015, 0.02, 0.05, 0.3mm | Length (mm): | 50~6000 |
| Feature: | Easy For Installation | Size: | Customized |
| High Light: | metal mesh panels,metal mesh fabric |
||
stainless steel 304 v wire wedge water well sand johnson screen

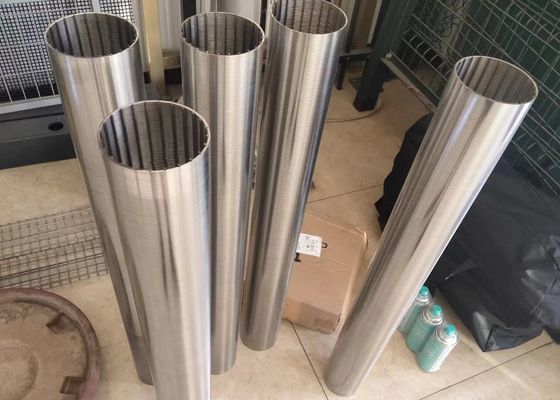

Johnson screens

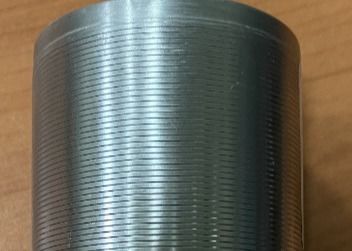

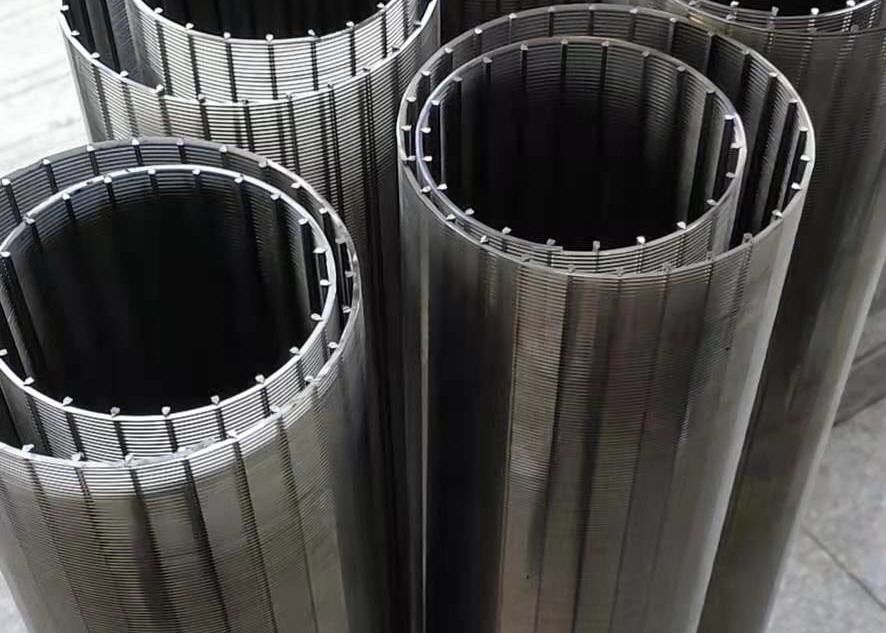

Johnson screens consist of V-shape profile wire and the longitudinal support rods.
Material:
carbon steel and stainless steel(302,304,304L,316,316L etc).
Product Property and Characteristics:
1.Unique design of filter ring;
2. With side opening exterior protection cover (optional);
3.Center tube has unique spiral pattern;
4. Easy for installation, less work time.
Application Scope:
Sand screen can be used for vertical wells, the inclined shaft, horizontal wells and various gas, oil and water wells. Can be used individually as sand control tube, also can be used together with filling.
We can produce length up to 20’ (6.096m),Meanwhile, the slot can change according to the real condition of the earth.
