200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48"X100" Anti Corrosion

Good quality Perforated Metal Mesh for sales
Good quality Perforated Metal Mesh for sales
Hi Jack: Yes we have received the reinforcing mesh and we are pretty happy with the quality. Many thanks! Chris

—— Chris Johnson

I have been ordering powder coated T 316 fly screen mesh from Qijie; unlike others, they never cut orders and always supply quality material to me.

—— Michael Jr. Venida

I had very bad purchasing experience with the previous supplier, for they always postpone shipment time. To my excitement, Qijie is always punctual.

—— Susan Miller

I'm Online Chat Now

200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48"X100" Anti Corrosion

China 200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll  48"X100" Anti Corrosion supplier
200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll  48"X100" Anti Corrosion supplier 200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll  48"X100" Anti Corrosion supplier

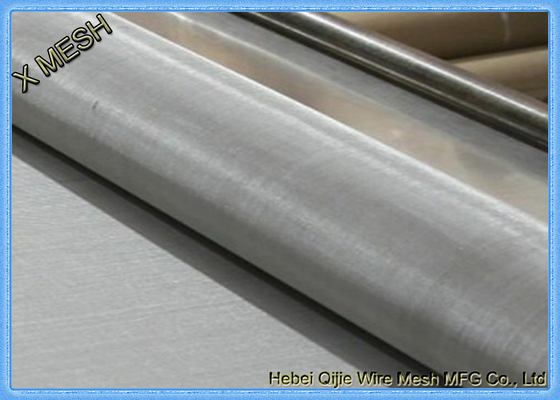

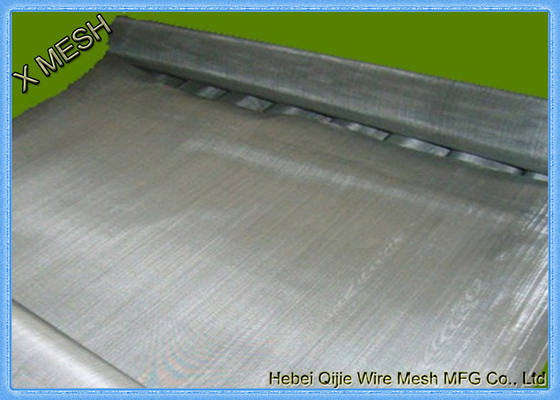

Large Image :  200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48"X100" Anti Corrosion

Product Details:

Place of Origin: Hebei, China
Brand Name: Xmesh
Certification: SGS
Model Number: QJ-0200

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Wood case or pallets
Delivery Time: 20-25days
Payment Terms: TT or LC
Supply Ability: 100rolls per month
Contact Now
Detailed Product Description
Mesh: 200mesh Size: 48" X 100"
Material: Stainless Steel Alloy Wire 304 Weave: Plain Weave
Diameter:: 0.023mm-0.100mm Material:: ASI304,AISI304L,AISI316,AISI316L

200mesh Plain Weave 304 Stainless Steel Alloy Wire Mesh 48" x 100"







(1) Material:ASI304,AISI304L,AISI316,AISI316L



(2) Mesh Count: 2mesh/inch to 400mesh/inch

(3) Diameter: 0.023mm-0.100mm

(4) Weaving: plain weave, twill weave, dutch weave

(5) Width: 1m, 1.2m, 1.5m,2m, at your request.

(6) Standard Length per Roll:30m/roll: 50m/roll at customers' request Packing: in waterproof
paper and pvc bag.custom packing avaliable at request.

(7) Characteristics: acid resistant, alkali resistant, heat resistant, corrosion resistant.







Specification:

Stainless Steel Woven Wire Mesh( Plain Weave)
mesh/inch wire diameter
mm
aperture
mm
mesh/inch wire diameter
mm
aperture
mm
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385
Stainless Steel Wire Mesh( Dutch Weave)
Mesh Wire Dia. (MM) Material (AISI)
12mesh x 64mesh 0.58 x 0.40 304 or 316
24mesh x 110mesh 0.36 x 0.25 304 or 316
14mesh x 88mesh 0.50 x 0.33 304 or 316
30mesh x 150mesh 0.18 x 0.14 304 or 316
40mesh x 200mesh 0.14 x 0.11 304 or 316
50mesh x 250mesh 0.10 x 0.071 304 or 316
80mesh x 700mesh 0.06x 0.05 304 or 316
165mesh x 800mesh 0.071 x 0.040 304 or 316
165mesh x 1400mesh 0.05 x 0.032 304 or 316
200mesh x 1800mesh 0.05 x 0.03 304 or 316
325mesh x 2300mesh 0.030 x 0.025 316L
400mesh x 2800mesh 0.030 x 0.02 316L



 200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll  48"X100" Anti Corrosion
