|Thickness:||25mm - 60mm||Material:||Polyurethane Material And Steel Frame|
|Hole Type:||Square||Hole Size:||2.5mm - 130mm|
|Hook Type:||Metal Or Polyurethane||Hook Direction:||Transverse Or Longitudinal|

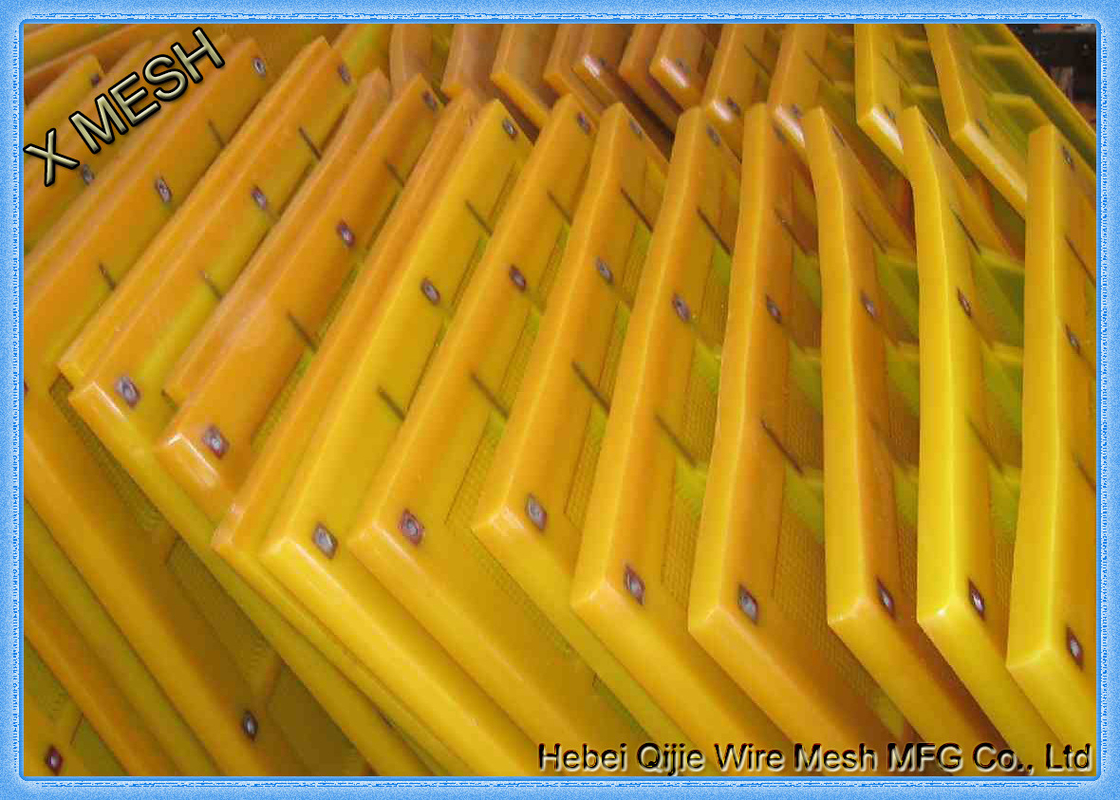

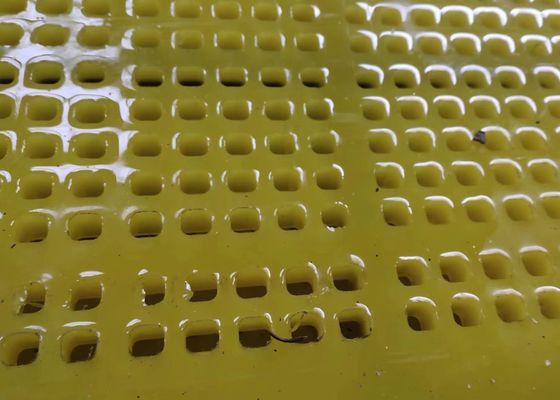

25mm Polyurethane Screen Mesh with yellow color for coal industrial
POLYURETHANE SCREENING SYSTEMS
Several polyurethane screening systems and polyurethane screening surfaces are available from Qijie. Polyurethane screening systems and polyurethane screening surfaces offer the advantages of much longer wear-life and greater screening efficiency in many screening applications. Both modular polyurethane screening media and tensioned polyurethane panels are available to suit your specific screening application.
Modular Screening Systems
Qijie supplies replacement panels for most modular screening systems. 1’x1′, 1’x2′ and 1’x4′ replacement panels offer our customers equal or greater wear-life, reduced blinding and much faster delivery, and all at lower cost. Superior polyurethane composition and abrasion-resistant compounds are used by Qijie to produce all of our replacement panels.
Tensioned Polyurethane Screening Panels

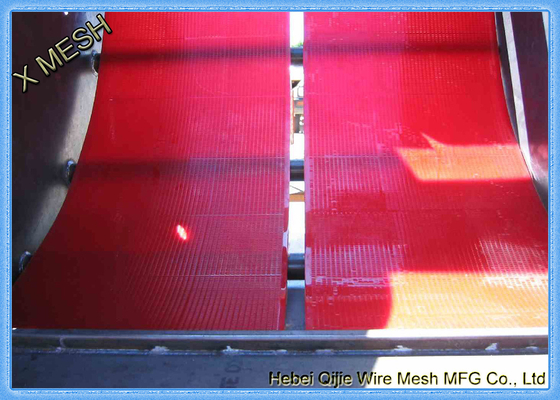

Many tensioned panels are readily available to increase wear-life and improve screening efficiency in circumstances where material specifications frequently change. The ease of installation and the extended wear-life easily justify this change to polyurethane in many severe and abrasive screening situations. Heavy-duty impact panels can be supplied for the feed area, while greater production polyurethane-tensioned panels can be used on the discharge positions (see photo) where screening efficiency is the primary concern. The combination of polyurethane impact panels, high-efficiency polyurethane tensioned panels and abrasion-resistant woven wire cloth distinguishes Qijie as a screening consultant of screen media.
Polyurethane elastomer and abrasion-resistant rubber afford the highest protection against wear and tear. Polyurethane Screens made from these materials are longer lasting and reduce noise and are self-cleaning. Their modular layout and conical openings prevent the screen from clogging and they are very suitable for wet sorting and dewatering.
Polyurethane Screens are used for the separation of Sand, Gravel, Granite, Quartzite, Limestone and Coal to name a few of the many applications with the added advantages of:
Reduced wear and tear
Our industry standard cost effective, long lasting polyurethane / modular screens can be produced to fit individual requirements, equipment size and location.
These type of polyurethane screens are the best solution for mining, sand and gravel screening, compost/wood chip processing and aggregate-ore processing as they offer a similar open area ratio of woven wire screens but the polyurethane screens coating means that they last up to five times longer than steel meshes.
olyurethane Modular Screens – with a high strength polyurethane coating and an extremely wear and tear resistant surface, the Polyurethane Screens are manufactured with reinforcement bars parallel to the panel width. Modular Polyurethane Screens are a cost effective modular system achieving optimal results mainly used in applications to separate Gravel, Quartzite, Sand, Gravel, Limestone and Coal just to name a few.
Polyurethane Tension Screens – fitted to vibrating screens and these Polyurethane Tension Screens are an ideal cost effective alternative to metal with improved productivity used in the separation of aggregate both in the dry and wet conditions. We are capable is manufacturing these Tension Screens to custom installations and can be configured to single or double crown, side tensioned, flat clamped or end tensioned.
