Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Sheet | Thickness: | 0.25 - 0.55 Mm |
|---|---|---|---|
| Surface: | Nature | Width: | 450 Mm |
| Technic: | Metal Mesh | Length: | 2100 - 2500 Mm |
| High Light: | metal mesh panels,metal mesh fabric |
||

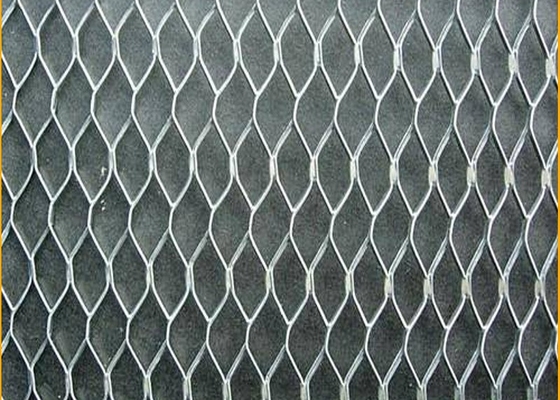

galvanized plate wall plaster expanded metal lath with diamond hole
Product Information
1.Material :hot dipped galvanized plate
2.Mesh Type:diamond
3.Thickness:0.5mm-8mm
4.SWD :2.5mm-50mm
5.LWD:4.5mm-100mm
6.Wire Sterm Width:0.5mm-8mm
7.Width:0.5m-2m
8.Length:1m-10m
9.Application:construction ,civil building .
| Weight Per Square Yard Flat and High Rib Mesh |
||
| 2.75 lb. / sy | Flat Rib | Galvanized |
| 3.4 lb. / sy | Flat Rib | Galvanized |
| 3.4 lb. / sy | 3/8" High Rib | Galvanized |
| 4.0 lb. / sy | 3/8" High Rib | Galvanized |
3/8” RIB LATH (HIGH RIB)
Due to its heavy construction with seven longitudinal ribs, each 3/8” deep and eight small flat ribs it is used almost exclusively for ceiling and soffit applications. The herringbone mesh pattern allows excellent keying of the stucco to the lath for horizontal or
ceiling installations spanning up to 24” o.c. Rib lath is not generally recommended for vertical or wall installations.
Application
1.Applied as platforms and stair treads for constructions, vessels, bridges and boilers.
2.Used as reinforcement for light vehicles.
3.Used as air compressors, safety guards for gear-drive equipment on various kinds of machines.
4.Decoration for hotels, conference rooms, hotels, stadiums, television indoor .
5.Ceiling and outdoor curtain wall
