Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable

China Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable supplier
Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable supplier Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable supplier Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable supplier

Large Image :  Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: CBT65

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Inside waterproof paper , outside plastc weaving bags or carton box
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 100ton per week
Contact Now
Detailed Product Description

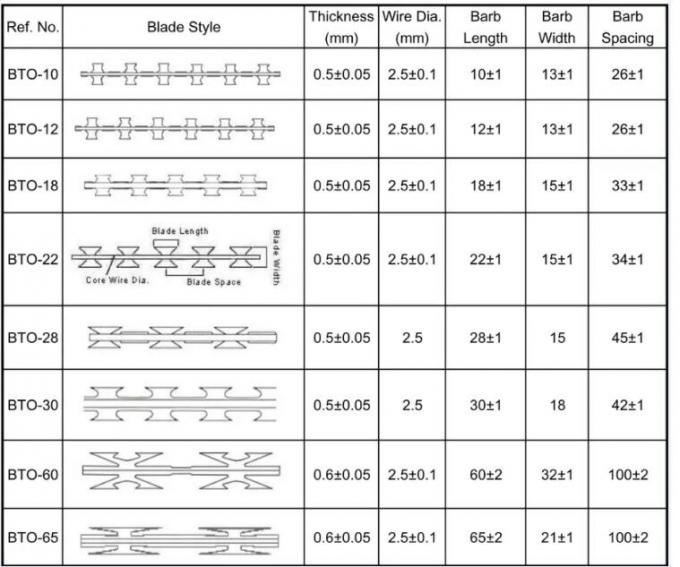

Surface Treatment: Hot Dipped Galvanized Type: BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28, BTO-30,CBT-60,CBT-65
Loops: 56 Loops , 33 Loops , 55 Loops , 144 Loops Clips: 5clips , 3 Clips , Without Clip
Packing: Inside Waterproof Paper Material: Hot-dipped Galvanized , Stainless Steel 430,

Low Price Concertina Hot Dipped Galvanized Razor Barbed Wire



Concertina coils are the most popular high security fencing for military and high grade residences safety. Two main types available for concertina coils: one is the single coil and the other is crossed concertina coils. Crossed concertina offers the highest security grade among all the razor wire fencings.

Concertina type razor coil wire is installed without clips and it runs in natural loops on walls. It costs less with easy installation.



High security perimeter fencing material items are as follows:

  • PVC coated straight razor wire: BTO-22.
  • PVC coated spiral concertina coil: BTO-22, 610 mm diameter, 125 clips, 50 turns, core wire: 2.60 mm.
  • PVC coated barbed wire: 2.24 mm × 2.24 mm with 75 mm spacing.
  • Welded razor wire mesh BTO 22 or 12, mesh size 100 mm × 100 mm, panel size 2 meter × 3 meter.
  • Double concertina razor wire.
  • Mobile security barriers.
  • Wall spikes of different types.

Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable

Concertina wire razor blades

  • In the form of barbed wire are individual diameter pulley be 65 cm ± 2 cm.
  • Concertina wire consists of a single smooth wire diameter of 2.5 mm ± 0.2 mm.
  • Tensile strength of the wire 60 ± 5 kg / mm2.
  • Galvanized wire thickness not less than 120 g/m2.
  • Provides wire blades of galvanized sheet installed on it well and with a thickness of 0.5 mm and spacing (4 cm ± 2 mm spacing axes).
  • Razor and be of four headers sharp.
  • Razor dimensions 1.5 × 2 cm (height × length).
  • The length of the reel during the individuals 15-17 m.

PVC coated razor wire fencing

  • Diameter: 20".
  • Length: 150 feet long.
  • Colour: green.

Wire concertina coils CBT-60:

  • Length of the barb 60±2 mm.
  • Height 31/32 mm.
  • Outer diameter of the coil 730 mm.
  • In one coil not less than 56 strands.
  • Length of covering when spread out 10-12 m.

Concertina razor wire 60 cm, wire 2.5 mm

  • Diameter of 60 cm (before expansion).
  • Loop 56 ± 1 nos.
  • Roll length 8.00 m, weight 15 kgs.
  • Thickness of core wire ø2.5±0.05 mm hot dip galvanized steel wire (zinc cover 80-120 gr/m2).
  • Wire tensile strength 1310-1960 N/mm2.
  • In thickness of 0.5±0.05 mm galvanised sheet.
  • Tensile strength of min. 1500 MPa (Galvanized 140-270 gr/m2).
  • 5 clips on two coils.

Barbed razor wire

  • Material: stainless steel, grade 304.
  • Diameter of wire: 2.5 mm.
  • Blade size: length=65 mm, width=21 mm.
  • Spacing of blades: 100 mm C/C.
  • Coil diameter: 3'-2" or 960 mm.
  • Spiral turns per coil: 53 Nos.
  • Stretch length per coil: 11 m or 15 m.
  • Type: CBT-65 (Galvanized).
  • S.S wire dia 1.2 mm (SS-304).

Galvanized concertina wire (65cm coils)

  • In rolls 65cm diameter.
  • A coil wire 2.3 mm dia.
  • Power of strength 50kg/mm2 + 5kg/mm2.
  • Wire to be galvanized with a thickness + 120g/m2.
  • Razor galvanized with thickness 0.5 mm.
  • Distance between razors 40 mm.
  • Length of rolls 30 m.

Reinforced barbed tape double coil for fence toppings

  • Fabricated from 430 series stainless steel.
  • Stainless steel strip 0.6 mm thick by 25 mm wide before fabrication.
  • Each barb 30.5 mm in length, in groups of 4, spaced on 102 mm centers.
  • The stainless steel core wire 2.5 mm diameter with a minimum tensile strength of 9.68 MPa in accordance with ASTM A478.



Concertina Hot Dipped Galvanized Construction Binding Wire , Razor Barbed Wire Durable



Concertina clipped
Coil Diameter No. of Spirals No. of Clips Recommended Stretch
300mm (12") 33 3 4m
450mm (18") 55 3 8-10m
610mm (24") 55 3 10-12m
730mm (30") 55 3 15-20m
730mm (30") 55 5 10-12m
980mm (38.5") 55 5 10-15m
1250mm (50") 55 9 8m
Spiral unclipped
Coil Diameter No. of Spirals No. of Clips Recommended Stretch
300mm (12") 33 - 8-10m
450mm (18") 33 - 12-15m
600mm (24") 33 - 12-15m

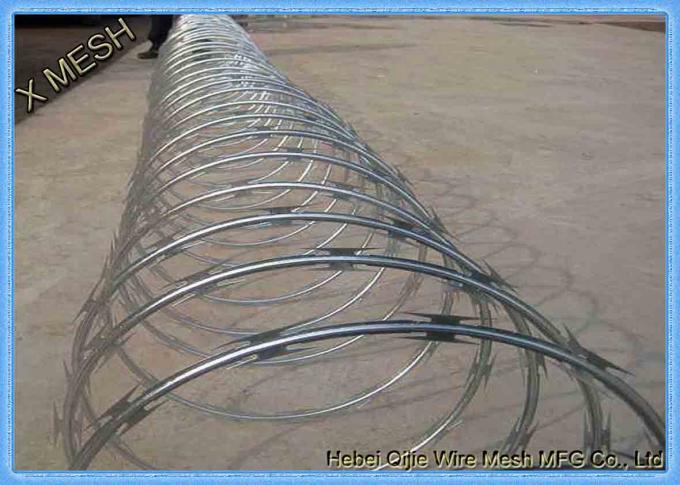

concertina razor wire-001

concertina razor wire-001

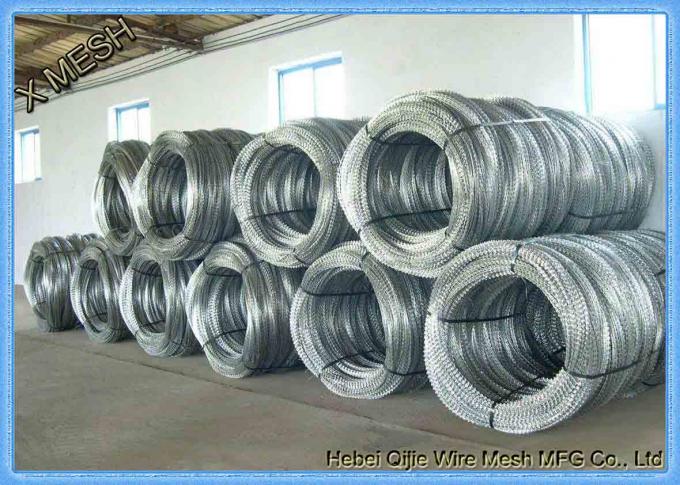

concertina razor wire-002

concertina razor wire-002
