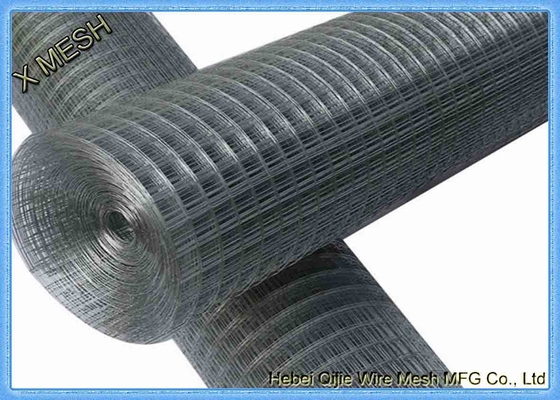

12 Gauge Hot Dipped Galvanized 2 Inch Welded Wire Mesh Roll with SGS Certifacate
The welded wire mesh is welded by excellent lowcarbon steel wires and Passivated and plasticized
through cold plating(electroplating), hot dipping And PVC plastic coating. With flat surface, even
mesh count, firm welding, spots and stable structure, it features its strong completeness, partial good
machining performance, stability, excellent corrosion resistanceand rush prevention.
Stainless Steel Welded Wire Mesh Panels or Mesh Sheets
Length up to 6500mm
Width up to 2500mm
Mesh 25mm to 100mm
Wire Diameter 2mm to 10mm
Applications of Stainless Steel Welded Wire Mesh Panels or Mesh Sheets
Stainless steel welded wire mesh panels or mesh sheets are widely used for mechanical equipment protection, express way protection fence, fencing mesh of sports areas and protecting net of greenbelts in mining, petroleum, chemical, foodstuff, medicine and machine manufacturing industries. Welded stainless steel mesh is also used as reinforcing steel in construction industry, highway and bridge building.
Characteristic compared with PVC or Galvanized welded wire mesh:
- High Tensile Stainless Steel Welded Mesh has flat even surface and strong structure, its high intensity makes it has long service life, even up to several decades.
- The wire itself has excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistance, so it can meet your demands of long exposure in corrosion environment.
- Compared with other material welded wire mesh or PVC-coated welded iron wire mesh, it is non-toxic, so it can used for food.
- By its very nature stainless steel wire need no additional finish, such as galvanizing or PVC to protect it, so it can compensate for its seemingly higher cost.
- Due to this wire mesh panels has beautiful and bright luster, it looks cleanliness and hygiene, furthermore, this kind of product is easy to clean.
- Welded wire mesh with strong integration, strong welded points, well-proportioned meshes, so it has a good strength to hold heavy weight.
Owing to the stainless steel material has unique advantage, the stainless steel welded wire mesh has a wide application, for example:
- It is traditionally utilized as floor heating, ceiling tiles, in buildings and construction; as the cover to protect machines and equipment in industry.
- In aquaculture, it used as animal enclosure, like restrain goat, horse, cow, raise chickens ,ducks, geese, rabbits, pigeons, and so on.
- In agriculture, it used for the tree, lawn, ranch in various size and shapes, for greenhouse benches and corn storage.
- In transportation, it used as highway fence, it also served as the road green belt protection net.
- In production, it used as wire mesh decking in logistics warehouse, display stand for goods in supermarket.
- In our daily life, it used as window resection fender, food baskets, shopping trolleys, porch or channel fence.
- For the birds, the stainless steel welded wire mesh is the only way to prevent zinc poisoning in birds, its strong structure and heavy wire also makes it become the best choice of zoo fence.
Product Specification :
|Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m )
|Opening in inch
||Wire diameter (bwg)
|1/4 '' x 1/4 ''
||22 , 23, 24
|3/8 '' x 3/8 ''
||19 , 20 , 21 , 22
|1/2 '' x 1/2 ''
||16 , 17 , 18 , 19 ,20 , 21 , 22 , 23
|5/8 '' x 5/8 ''
||18 , 19 , 20 , 21
|3/4 '' x 3/4 ''
||16 , 17 , 18 , 19 , 20 , 21
|1 '' x 1 ''
||16 , 17 , 18 , 19
|1 '' x 1/2 ''
||16 , 17 , 18 , 19 , 20 , 21
|1 '' x 1/4 ''
||14 , 15 , 16 , 18
|1 '' x 2 ''
||14 , 15 , 16
