Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh

China Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh supplier
Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh supplier Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh supplier Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh supplier Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh supplier

Large Image :  Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh

Product Details:

Place of Origin: Hebei ,China
Brand Name: Xmesh
Certification: SGS
Model Number: MVSM

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: Manganese Steel, 65mn, 45#, 72#, Stainless Steel Wire #304 #316 Size: 1400mm X 2400mm, 1200mmx1500mm 1500mmx2000mm 1500mmX2470mm
Wire Diameter: 6mm, 5mm, 4mm, 3mm Aperture: 19.1mm, 12.7mm, 9.5mm, 6.0mm
Hook: 45degree Mesh Type: Square, Rectangle, Diamond, Corrugated, Triangle
Finish: Brush Rust Resistant Oil

Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh



Manganese Steel Mining Vibrating Screen has the wires pre-undulated with strict steps in order to obtain regularity in the mesh.
Due to its high percentage of screening surface, they are used to classify, with great precision and a high performance, materials that do not have a tendency to block. The high resistance to traction of the steel used allows obtaining a great resistance to vibration and a long service time.


Material: Stainless steel wire, high carbon steel, carbon steel, nickel steel and nonferrous wire.
Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.
Application: Screening in mine, petroleum, chemical, building and food industry.
Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc..



Specifications

  • · Screen Mesh Type: Woven wire mesh, Polyurethane sieve mesh, Stainless steel wire mesh.
  • · Material: 65 Manganese Steel, Polyurethane, Stainless Steel #304 #316
  • · Wire diameter: 0.1mm - 12mm.
  • · Opening size: 0.11mm - 100mm.
  • · Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
  • · Mesh type: Square, Rectangle, Diamond, Corrugated, Triangle
  • · Surface treatment: Brush rust resistant oil.
  • · Edge preparation: Plain, bent, reinforced shroud.
  • · Regular Curved Edge: Hooking (wire dia.>4.5mm), Wrapping (wire dia. ≤6mm)
  • · Hook type: C or U hook for 30° - 180°



Features:

  • Varied lengths
  • Require less maintenance
  • Sturdy construction

Application:
The Manganese Steel Mining Vibrating Screen can be used in the following fields as:

  • * Safety grids (e.g. car industry, mechanical engineering, building industry)
  • * Filling elements for gates and fences in buildings and gardens
  • * Booth construction
  • * Plant breeding
  • * Pigeon barriers
  • * Noise protection

Specification:



S/No Hole size Thickness Panel size
1 0.5mm 0.3mm 1200mmx1500mm
1500mmx2000mm
1500mmX2470mm
1600mmX3100mm
1600mmx2550mm
1630mmX2550mm
1750mmx4500mm
1850mmx2070mm
2000mmx3000mm
2030mmX2050mm
2070mmx2470mm
...
Customized size is available.
2 1.0mm 0.75mm
3 1.5mm 1mm
4 2.0mm 1.5mm
5 3.0mm 2mm
6 4.0mm 2.5mm
7 5.0mm 3mm
8 6.0mm 3mm
9 7.00mm 3mm
10 8.0mm 3mm
11 9.0mm 3.5mm
12 9.5mm 3.5mm
13 10.mm 4mm
14 11.0mm 4mm
15 12.0mm 4mm
16 12.5mm 4mm
17 13.0mm 4mm
18 14.0mm 4mm
19 15.0mm 4mm
20 16.mm 4mm
21 17.mm 4.5mm
22 18.mm 5mm
23 19.mm 5mm
24 20.0mm 6mm
25 21.0mm 6mm
26 22.0mm 6mm
27 23.0mm 6mm
28 24.0mm 6mm
29 25.0mm 6mm
30 26.0mm 6mm
31 30.0mm 6.5mm
32 32.0mm 7mm
33 35.0mm 7mm
34 38.0mm 8mm
35 40.0mm 8mm
36 45.0mm 8mm
37 50.0mm 8mm
38 55.0mm 8mm
39 60.0mm 8.5mm
40 65.0mm 8.5mm
41 75.0mm 9 mm
42 80.0mm 9 mm
43 90.0mm 9mm
44 100.0mm 10MM



Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh



Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh

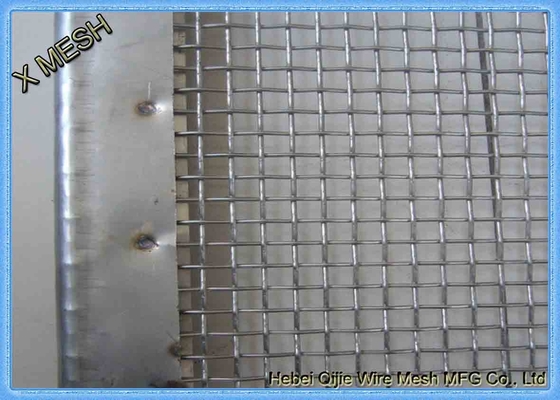

Photo:



Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh



Crimped Mesh, Mine Linear Vibrating Screen, Mineral Screen Mesh
