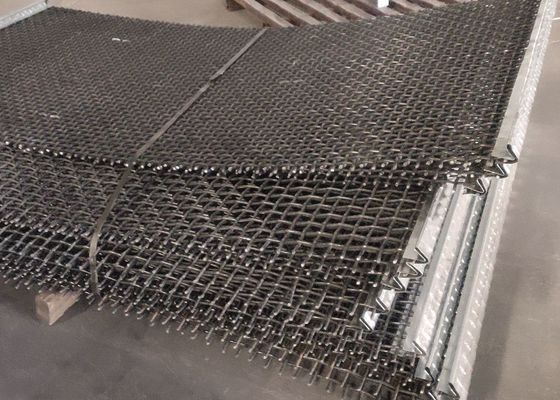

65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen

65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen
65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen

Large Image :  65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 4mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pieces per week
Detailed Product Description
Material: Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire Aperture: 0.8 - 8 Mm
Size: 1.5mx1.95m Install: Hooked
Surface Treatment:: Galvanized Or Painted Mesh Size: 1mm - 100mm
Hole Type: Square, Rectangular And Long Slot.
High Light:

vibrating sieve screen

,

vibrating screen wire mesh

65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen

Crimped wire mesh also called square wire mesh is cloth made from wire strands.The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires).The cross and line wires are interwoven.That is, the wires cross over and under each other.Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size.Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher, building, house fencing and so on.



1, Product name: Vibrating Screen Mesh
2, Hardness: HB 220~240
3, Production capability: More than45000tons/year
4, Material & Standard: High manganese steel, Mn14Cr2, Mn18Cr2, Mn24Cr3, Cr20, Cr24up, Carbon steel, Cr-Mo alloy steel; Standards as following: JIS, DIN, ASTM, BS
5, Molding processing: Lost wax process or waterglass sand
6, Melting facilities: Medium frequency electric induction furnace/electric arc furnace.
7, Casting Inspection: Direct-reading spectrum instrument, metallographic analysis, ultrasonic inspection, magnetic particle inspection, mechanical properties inspection.
8, Heat treatment facilities: Special heating electric furnaces, special water pools etc. Special quenching equipments.
9, Surface treatment: Shot blast cleaning.







Specification:




No Steel Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37

0.50-0.80



2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



Mesh/inch Wire Diameter Aperture Open Area Weight(LB)/100square foot
Inch MM Inch MM
2x2 0.063 1.6 0.437 11.1 76.4 51.2
3x3 0.054 1.37 0.279 7.09 70.1 56.7
4x4 0.063 1.6 0.187 4.75 56 104.8
5x5 0.041 1.04 0.159 4.04 63.2 54.9
6x6 0.035 0.89 0.132 3.35 62.7 48.1
8x8 0.028 0.71 0.097 2.46 60.2 41.1
10x10 0.02 0.51 0.08 2.03 64 26.1
12x12 0.023 0.584 0.06 1.52 51.8 42.2
14x14 0.023 0.584 0.048 1.22 45.2 49.8
16x16 0.018 0.457 0.0445 1.13 50.7 34.5
18x18 0.017 0.432 0.0386 0.98 48.3 34.8
20x20 0.02 0.058 0.03 0.76 36 55.2
24x24 0.014 0.356 0.0277 0.7 44.2 31.8
30x30 0.013 0.33 0.0203 0.52 37.1 34.8
35x35 0.011 0.279 0.0176 0.45 37.9 29
40x40 0.1 0.254 0.015 0.38 36 27.6
50x50 0.009 0.229 0.011 0.28 30.3 28.4
60x60 0.007 0.178 0.0097 0.25 33.9 20.4
70x70 0.0065 0.165 0.0078 0.2 29.8 20.8
80x80 0.0065 0.165 0.006 0.15 23 23.2
90x90 0.005 0.127 0.0061 0.16 30.1 15.8
100x100 0.0045 0.114 0.0055 0.14 30.3 14.2
110x110 0.004 0.1016 0.0051 0.1295 30.7

12.4


Carbon Steel Parameter:


65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 0



Photo:



65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 1



65 Mn Stainless Steel Crimped Mine Sieving Wire Mesh for Vibrating Screen 2
