9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence

China 9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence supplier
9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence supplier 9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence supplier 9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence supplier

Large Image :  9 Gauge Zinc / Aluminum / Polymer Coated Chain Link Tennis Court Fence

Product Details:

Place of Origin: China
Brand Name: Qijie
Certification: SGS
Model Number: QJ-5136

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Each roll wrapped with plastic film and weave bags
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 8500 rolls per week
Contact Now
Detailed Product Description
Height: 4 Foot On Top: 3 Strands Of Barbed Wire
Accessories: With Heavy-duty Sliding Gates Wire Diameter: 3mm, 9 Gauge
Mesh Openning: 50x50 Mm Feature: Quick To Install
Length: 150ft Surface Treatment: Hot Dipped Galvanized
Color: Silver Material: Galvanized Iron Wire

9 Gauge Zinc, Aluminum, Polymer Coated Chain Link Tennis Court Fence





Chain-link fencing around tennis courts is built from various types of chain-link fabric and framework materials. Usually, 10 ft or 12 ft (3050 or 3660 mm) high chain-link fencing as complete enclosures around single or multiple tennis courts, or as backstops at either end of tennis courts. Wind screens may be used upon local wind conditions. The specification of chain link tennis fence and gates is accordance with ASTM F969.

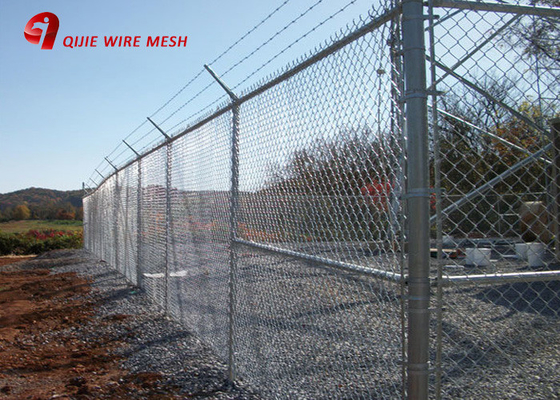

Galvanized chain link tennis courts fence.

Galvanized chain link tennis courts fence.

Polymer-coated tennis courts fence with double gates.Polymer-coated tennis courts fence with double gates.



Type of chain link fabric coating:

  • Type I: aluminum-coated steel chain-link fence.
  • Type II: with zinc-coated steel chain-link fence fabric, Class 1 or Class 2 coating.
  • Type III: zinc-5% aluminum-mischmetal alloy-coated steel chain-link fence fabric, Class 1 or Class 2 coating.
  • Type IV: polymer-coated steel chain-link fence fabric, Class 1, Class 2a, or Class 2b coating.
    Colors for polymer-coated: dark green, olive green, brown, black.

chain link fence specification

Notice: select the same type and color for polymer-coated chain link fence materials such as chain link fence fabric, framework, tension wire, posts, rails, gate frames, and fittings.

Materials of chain link fabric tennis fence:

  • Size of core wire: 0.120 in. (3.05 mm) 11 gauge or 0.148 in. (3.76 mm) 9 gauge.
  • Size of fabric mesh: 13/4 in. (44 mm).
  • Height of fence: 10 ft. or 12 ft. (3050 or 3660 mm) as selected.
  • Ground clearance: no more than 1 in. (25.4 mm).
  • Fabric selvage: knuckled top and bottom.



Specification of chain link fence:



Mesh Wire Thickness Surface Treatment Panel Width Height

40X40mm

50X50mm

60X60mm

65X65mm

75X75mm

2.0mm

-

4.8mm

Galvanized and

PVC coated

Or

Hot dipped galvanized

10m

15m

18m

20m

25m

30m

1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2500mm
3000mm
3600mm



Profile Wall Thickness Surface Treatment Length Rain hat
Φ60

1.50mm

-

5.20mm

Galvanized and

Electrostatic polyester powder

Coated or hot dipped galvanized

On the basis of panel height Metal
Φ75



Note: Normally single branch crack or V type crack will be installed at top of the post, barbed wire and razor wire will be fixed at top of the fence to enhance secure class.



DIMENSIONS OF GALVANIZED CAGE WIRE
Dimension 2.00mm 2.20mm 2.50mm 2.70mm 3.00mm 3.50mm 4.00mm
30×30mm - - + + + - -
40×40mm - - + + + + -
50×50mm - + + + + + +
60×60mm - - + + + + +
70×70mm - - + + + + +
75×75mm - - + + + +

+





Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-001

Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-001



Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-002

Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-002



Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-003

Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-003



Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-004

Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-004



Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-005

Hot Dipped Galvanized Chain Link Garden Security Wire Mesh Iron Metal Farm Fence-005
