Expanded Metal Mesh Panels Perforated Metal Plate For Architectural

Expanded Metal Mesh Panels Perforated Metal Plate For Architectural
Expanded Metal Mesh Panels Perforated Metal Plate For Architectural Expanded Metal Mesh Panels Perforated Metal Plate For Architectural

Large Image :  Expanded Metal Mesh Panels Perforated Metal Plate For Architectural

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-811
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loosed packed or palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: Galvanized Steel Plates, Stainless Steel Plates Thickness: 0.5 - 8.0mm
Mesh: 5-10mm Diameter Surface Finish: Galvanized
Hole Shape: Round Size: 1.0x2.0m, 1.2x2.4m
High Light:

perforated metal screen

,

perforated mesh panels

Perforated Metal And Expanded Metal Mesh Panels For Architectural Uses



Product descriptions

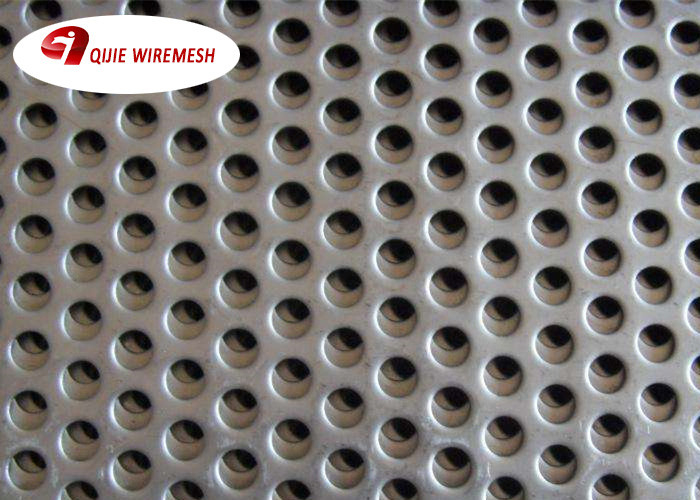

Round perforated is a sheet or coil of material made from metal or plastic that contains holes punched by a die. The shape of the hole is determined by the shape of the die. For perforated with a round hole pattern, the die is circular. The die's diameter can vary from approximately twice the thickness of the material being punched to over two inches.



Perforated metal mesh panels, also known as perforated metal mesh sheets, are used in countless industrial and architectural applications. With options in shape, size and material, perforated or woven metal mesh panels can be crafted for virtually any purpose.

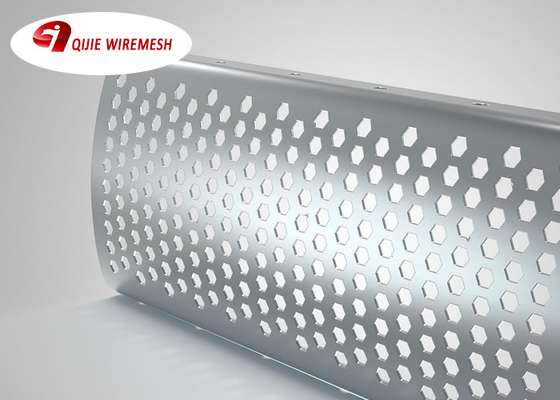

Perforated Metal Mesh is created by punchinga series of holes in a solid material. Holes can be round, square, rectangular,slotted, or decorative. It is available in wide range of hole sizes andpatterns. The perforated pattern can be straight or staggered. It has anunpolished surface. To improve the service life or beauty, the surface can begalvanized or powder coated.

round hole sheets

Material:

We specializes in manufacturing round hole perforated sheets in various high quality materials including steel ( mild steel or carbon steel, no painting, galvanized or PVC coated), stainless steel, aluminum, copper and brass or other materials as your request.



Round hole perforated sheets are the most common and most requested. There are several types of hole diameters: very small, medium and large size. Hole pattern is of primary importance: the most popular arrangement is the 60 degree angle pattern, which combines a high rigidity and a decent proportion between open and full areas. The 90° pattern is equally popular, above all for aesthetic needs whereas the 45° pattern is now almost disused.



Round hole perforated sheet offers the widest options of hole sizes, gauges, materials and sheet size for all types of applications. For example:

* Cladding and ceiling panels
* Sunshade and sunscreen
* Filter to sieve seed, stone and other bulk materials
* Decorative banister
* Protective fences of overpasses and machine equipments.

Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 1

Specification:



Code Hole size (diameter) Hole center Hole type Open area Code Hole size (diameter) Hole center Hole type Open area
RHPS-1 0.02" 0.043" 45° staggered 20% RHPS-21 5/32" 3/16" 60° staggered 63%
RHPS-2 0.023" 0.042" Straight 22% RHPS-22 5/32" 1/4" 60° staggered 34%
RHPS-3 0.027" 0.05" Straight 23% RHPS-23 3/16" 7/32" 60° staggered 67%
RHPS-4 1/32" 1/6" 45° staggered 23% RHPS-24 3/16" 1/4" 60° staggered 50%
RHPS-5 0.033" 0.055" Straight 28% RHPS-25 3/16" 5/16" 60° staggered 32%
RHPS-6 0.045" 0.066" Straight 36% RHPS-26 3/16" 3/8" 60° staggered 23%
RHPS-7 0.045" 5/64" 45° staggered 32% RHPS-27 3/16" 1/2" Straight 10%
RHPS-8 0.05" 0.083" Straight 29% RHPS-28 1/4" 5/16" 60° staggered 58%
RHPS-9 3/64" 3/32" 60° staggered 23% RHPS-29 1/4" 3/8" 60° staggered 42%
RHPS-10 1/16" 3/32" 60° staggered 41% RHPS-30 1/4" 3/8" Straight 34%
RHPS-11 1/16" 7/64" 60° staggered 27% RHPS-31 1/4" 1/2" 60° staggered 23%
RHPS-12 1/16" 1/8" 60° staggered 23% RHPS-32 1/4" 1/2" Straight 20%
RHPS-13 5/64" 1/8" 60° staggered 36% RHPS-33 5/16" 7/16" 60° staggered 46%
RHPS-14 3/32" 5/32" 60° staggered 33% RHPS-34 3/8" 1/2" 60° staggered 52%
RHPS-15 3/32" 3/16" 60° staggered 23% RHPS-35 3/8" 9/16" 60° staggered 40%
RHPS-16 0.117" 5/32" 60° staggered 51% RHPS-36 3/4" 1" 60° staggered 51%
RHPS-17 1/8" 3/16" 60° staggered 40% RHPS-37 1/2" 11/16" 60° staggered 49%
RHPS-18 1/8" 7/32" 60° staggered 30% RHPS-38 5/8" 7/8" 60° staggered 46%
RHPS-19 1/8" 1/4" 60° staggered 23% RHPS-39 1" 1-3/8" 60° staggered 48%
RHPS-20 9/64" 3/16" 60° staggered 51%



Function:

  • Used in architecture decoration,chemicalmachinery,Pharmaceutical equipment,food and beverage machines.
  • They are mainly applied in mine,medicine ,sieving grain,noise elimination,machine-protecting and decoration etc.

Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 2



Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 3



Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 4



Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 5



Expanded Metal Mesh Panels Perforated Metal Plate For Architectural 6
