304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh

China 304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh supplier
304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh supplier 304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh supplier

Large Image :  304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh

Product Details:

Place of Origin: Hebei, China
Brand Name: Qijie
Certification: ISO, SGS
Model Number: ss-07

Payment & Shipping Terms:

Minimum Order Quantity: 10 rolls
Price: USD 50-400/roll
Packaging Details: Water-proof paper, Plastic bag, wooden cases
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 500 rolls/month
Contact Now
Detailed Product Description
Technique: Woven Application: Woven Wire Mesh,Filters
Type: Weave Wire Mesh,Wire Cloth,Crimped Wire Mesh Material: Stainless Steel Wire,316,304
Weave Style: Plain Weave,twill Weave,Dutch Weave Product Name: 5 Micron 316L 2500 Mesh Stainless Steel Woven Wire Mesh,304 316L Plain SS Stainless Steel Woven Wire Mesh Disc.
Color: Silver Wire Diameter: 0.010 To 1.20mm
Hole Shape: Square Hole Length: 30m Per Roll Or As Required
Usage: Liquid Filter,chmical Industry,oil,filtration,filtering And Sieveing Width: 0.5m-3m Or Customized
Feature: Corrosion Resistance,Anti-corrosion,alkali-resisting Etc Mesh Count: 2-650mesh
Mesh: 1-2300 Name: 304 316 20Mesh Plain Woven Stainless Steel Wire Mesh,Stainless Steel Square Wire Mesh Woven Aluminum Wire Mesh
Sample: Avaliable





304L stainless steel filter mesh 1 micron 5 micron 10 micron stainless steel wire mesh

Product Description



Material 304L
Thickness 0.3-12.0mm
Mesh size plain weave and twill weave from 5 to 600 mesh.
Wire diameter 0.018-2.03mm
Weaving Type Plain weave, twilled weave, Dutch weave.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Feature High tension,high precision,low elongation,high yield strength,high wear resistance,static electricity,thermal resistance
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.



Normal mesh sieze:



plain dutch weave:10X64mesh to 80X700mesh;

twill dutch weave:20x250mesh to 400X2800mesh;

reversed dutch weave: 48x10mesh to 720x150mesh.

Other weave type is also available:

plain weave: 0.5X0.5mesh to 635X635 mesh;

twill weave:20x20mesh to 400x400mesh;





Wire diameter:0.025mm-1.8mm



Apeature: 0.038mm-10.9mm



Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.



Roll length:30m or 50m,any length available at request.



Sample:Free sample sent on request.



Performance : Corrosion-resisting, Wear-resisting, Tear-resisting.

Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.



We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.



Stainless steel wire mesh

Weave Style plain weave

Material 304, 316, 316L or customized
Weave style plain weave, twill weave and dutch weave
Type weave wire mesh, wire cloth, filter elements
Application screen, filters, woven wire mesh
Technique woven
Mesh Count 1x1-635x635mesh/inch
Thread Diameter 0.008-0.08inch (0.0203-2.03mm)

Mesh Opening 0.0008-0.92inch(0.0203-23.37mm)
Commonly Roll details 30m length X 1m width (length and width can be customized)





Twill Weave Dutch Mesh



Mesh (mesh/inch)

Warp x Weft
Warp x Weft (mm) Aperture Size (um)
20x270 0.25x0.2 119
20x200 0.35x0.28 118
24x300 0.28x0.18 110
20x150 0.45x0.355 101
30x340 0.28x0.16 89
30x270 0.28x0.20 77
40x540 0.18x0.10 70
40x430 0.18x0.125 63
50x600 0.125x0.09 51
50x500 0.14x0.11 47
65x600 0.14x0.09 36
70x600 0.14x0.09 31
78x760 0.112x0.071 31
78x680 0.112x0.08 29
80x680 0.112x0.08 28
90x850 0.10x0.063 26
90x760 0.10x0.071 24
100x850 0.10x0.063 22
130x1500 0.063x0.036 21
100x760 0.10x0.071 20
130x1200 0.071x0.045 18
130x1100 0.071x0.05 17
150x1400 0.063x0.04 15
160x1500 0.063x0.036 15
165x1500 0.063x0.036 14
174x1700 0.063x0.032 13
165x1400 0.063x0.04 13
174x1400 0.063x0.04 11
203x1600 0.05x0.032 10
216x1800 0.045x0.03 10
203x1500 0.056x0.036 9
250x1900 0.04x0.028 8
250x1600 0.05x0.032 8
285x2100 0.036x0.025 7
300x2100 0.036x0.025 6
317x2100 0.036x0.025 5
325x2300 0.036x0.024 4
363x2300 0.032x0.022 4
400x2700 0.028x0.02 4
500x3500 0.025x0.015 3

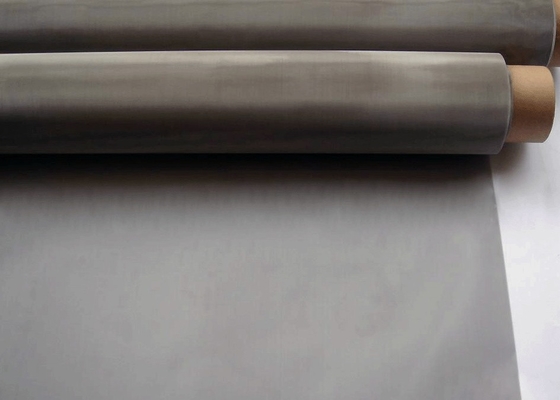

304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh

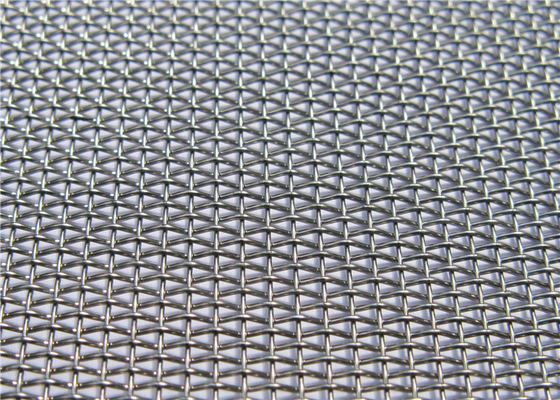

304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Woven Mesh

Q&A:



1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What’s the main market of your company?
A: We have customers all over the world.
6. Q: How much production capacity of your company one year?
A: This depends on your needs.
7. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Anping county,Hengshui City, Hebei, China,
Near Shijiazhuang Airport and Beijing Airport. We offer transportation service.
