S275JR Professional Galvanized Steel Grating Solution Mild Steel Heavy Duty Zinc Coating

China S275JR Professional Galvanized Steel Grating Solution Mild Steel Heavy Duty Zinc Coating supplier
S275JR Professional Galvanized Steel Grating Solution Mild Steel Heavy Duty Zinc Coating supplier S275JR Professional Galvanized Steel Grating Solution Mild Steel Heavy Duty Zinc Coating supplier

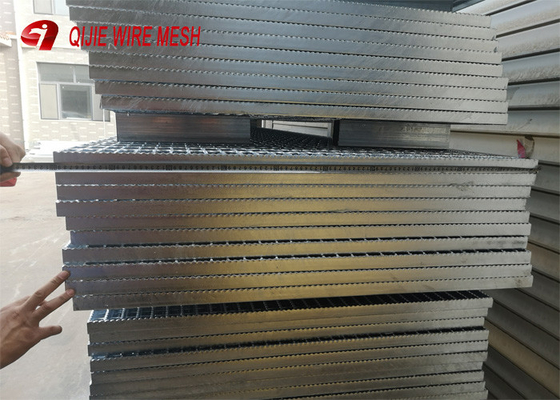

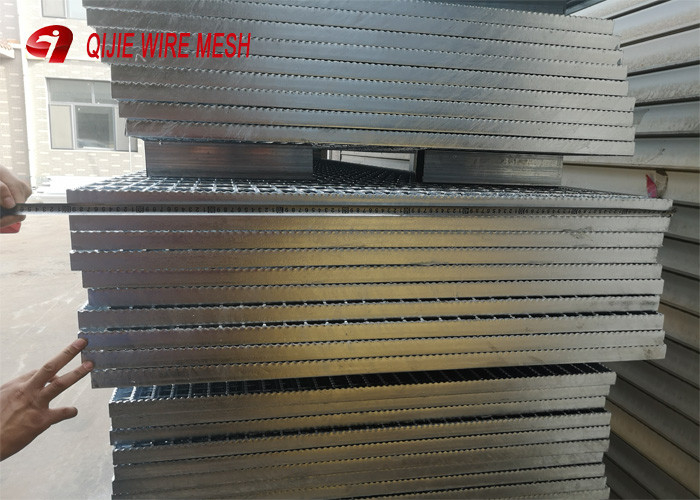

Large Image :  S275JR Professional Galvanized Steel Grating Solution Mild Steel Heavy Duty Zinc Coating

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-711

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Steel palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 5000 pcs one month
Contact Now
Detailed Product Description
Material: Mild Steel Sheet Pitch: 40 X 100 Mm
Type: 25 X 3.0 Mm Surface Finish: Galvanized
Surface: Serrated Size: 1.8 X 6.0 M



Mild Steel Heavy Duty Zinc Coating S275JR Professional Steel Grating Solution​



Steel Grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.



1. Bearing bar size: from 20mm x 3mm to 100mm x 10mm
2. Bearing bar mesh: 12.5mm, 15mm,20mm, 23.85mm,25mm, 30mm,30.16mm, 32.5mm,34.3mm,35mm, 40mm, 41.4mm,50mm, 60mm
3. Cross bar mesh: any mesh below 120mm
4. Max panel length: 7500MM
5. Max panel width: 1010mm
6. Grating type: Plain, Serrated, I Bar and Serrated I bar
7. Finish: Mill finish, Galvanized finish, Painted finish, Powder coating finish





Learn Steel Grating

Steel Grating Standard Steel Material Standard Hot galvanizing Standard
China: YB/T4001.1-2007 China: GB700-2006 China: GB/T13912-2002
U.S.A: ANSI/NAAMM U.S.A: ASTM(A36) U.S.A: ASTM(A123)
U.K: BS4592 U.K: BS4360(43A) U.K: BS729
Australia: AS1657 Australia: AS3679 Australia: AS1650



drawing of steel grating

1. Bearing bar pitches may be 12.5 to 15, 20, 30,32.5,34.3, 40,60mm,of which 30mm & 40mm are recommended.
2. Cross bar pitches may be 38,50,60, to 100mm, of which 50mm & 100mm are recommended.
3. Sign of the shape of bearing bars. F – Plain style (may be omitted in the symbol of steel grating); S – Serrated style; I – I-shape style
4. Sign of surface treatment. G – Hot galvanizing (may be omitted in the symbol of steel grating); P – Painted; U – untreated



FIELDS OF APPLICATION :
1. Light chemical industry/Petro-chemistry/Machinery industry/Textile chemistry/Port engineering
2.Oil and grease chemistry/Agriculture husbandry/Horticulture/Steel industry/Waste disposale
3.Food processing/Aquatic breeding/Fertiliazer industry/Phamaceutical industry/Parking lots
4.Cement plants/Oil refinery/Mining and refinery/Power plants/Public utilties
5.Marine engineering/Shipbuilding/Construction material industry/Defense projects/Airport projects
6.Water plants/Sewage disposal/Paper and pulp industry/Construction industry/Transportation industry/Automotive industry
COMMON USES OF GRATING :
Flooring Catwalks Mezzanines/decking Stair tread Fencing
Vault bin floors Ramps Docks Trench covers Window and machinery safe guards
Entilation screens Storage racks Suspended ceiling Drainage pit cover Wash racks



Type of Steel Grating

Comparison of Feature:

plain steel grating

Plain:One of the most widely used grating, available for flooring, sidewalk, dranage pit cover, stair tread, etc.

serrated steel grating

Serrated:Better non-skid property & safety comparing to plain grating

I shape steel grating

I-shape:Lighter, more economical and practical comparing to plain grating.



walkway grating



walkway grating
