19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating

China 19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating supplier
19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating supplier 19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating supplier 19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating supplier 19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating supplier

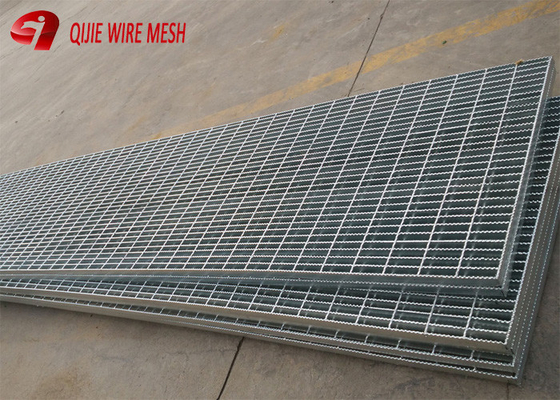

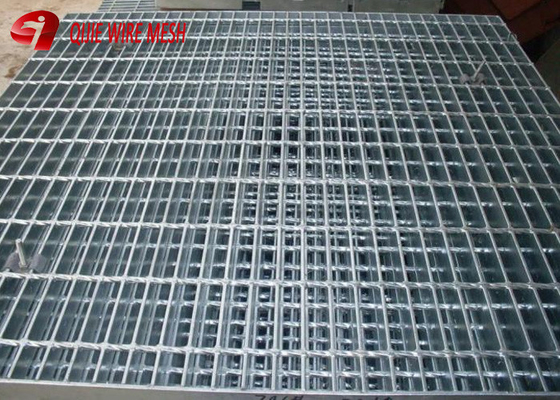

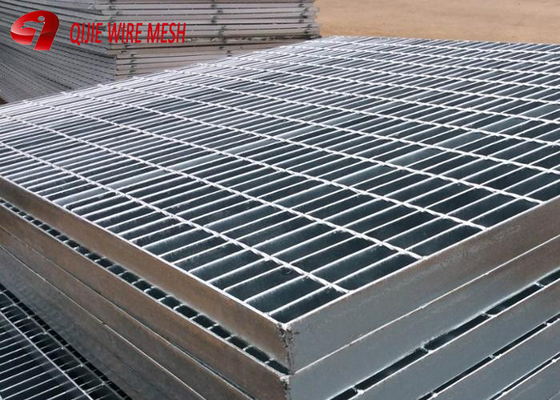

Large Image :  19- W -4 Steel Grating Platform Hot Dipped Galvanized Mild Steel Bar Grating

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-711

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Steel palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 5000 pcs one month
Contact Now
Detailed Product Description
Material: Mild Steel Sheet Pitch: 40 X 100 Mm
Type: 25 X 3.0 Mm Surface Finish: Galvanized
Surface: Serrated Size: 1.8 X 6.0 M



19-w-4 Platform Steel Grating Hot Dipped Galvanized Mild Steel Bar Grating



Steel grating is usually provided with one of three finishes, bare steel (no finish), painted with one

coat of manufacturers red, black or silver paint, or hot dip galvanized in accordance with ASTM A-123.

Aluminum products are commonly supplied mill finish but they are also available with optional chemically

cleaned or anodized finishes. Due to discoloration that occurs during welding and fabrication, Stainless

Steel grating products typically require secondary finishing



Commercial cleaning, passivation or abrasive blasting can provide a uniform matte surface and a bright

stainless finish can be provided by electro-polishing. All grating products can be provided with specialty

finishes including enamel or epoxy paints or powder coating. When considering specialty finishes,

consultation with the coating manufacturer is essential.



  • Specifications of serrated welded steel grating

  • Materials: low carbon steel, stainless steel.
  • Surface treatment: galvanized, powder coating, painted color.
  • Height of bearing bar: 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm.
  • Thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.
  • Mesh size: 34 mm × 38 mm
  • Packaging:Strap packing.
  • Pallet packing.
    Screw rod fixation.
    Features of serrated welded steel grating

TOP SURFACE
Typically supplied with a plain surface. On our most popular products a Serrated surface (S) is also available. Please refer to the loading charts in this section of the catalogue to see which Mild Steel grating types are available with a Serrated surface.



Steel Grating Common Size Table List:



No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc



5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating



Main Product Model:



Modle Model Model Model
253/40/50 253/40/100 253/30/50 253/30/100
254/40/50 254/40/100 254/30/50 254/30/100
255/40/50 255/40/100 255/30/50 255/30/100
303/40/50 303/40/100 303/30/50 303/30/100
304/40/50 304/40/100 304/30/50 304/30/100
305/40/50 305/40/100 305/30/50 305/30/100
323/40/50 323/40/100 323/30/50 323/30/100
324/40/50 324/40/100 324/30/50 324/30/100
325/40/50 325/40/100 325/30/50 325/30/100



use of steel grating

use of steel grating



High strength and high bearing capacity:

  • Non-slip, anti-corrosion, not easy to deform.
  • High safety performance.
  • Do not accumulate rain, snow and dust.
  • Simple and beautiful appearance.
  • Easy to install and remove to extend the lifespan.
  • Applications of serrated welded steel grating
  • Serrated welded steel grating is widely used as platforms, stair treads, walkaways and floors in industrial, civil and commercial buildings.

Advantage:

  • No corrosion traps around joints
  • High strength to weight ratio
  • Allows shaping without loss of strength
  • Available plain or serrated
  • Allows passage of heat, light, water and ice.





The applications of steel grating:

  • steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed

  • Power plant
  • Chemical plant
  • Oil Refinery
  • Steel plant
  • Machinery plant
  • Paper-making factory
  • Cement plant
  • Civil engineering
  • Wastewater treatment
  • Pharmacy industry
  • Food processing

application of steel grating

Steel grating standard:



Country Steel grating standard Steel material standard Hot galvanizing standard
China YB/T4001-1998 GB 700-88 GB/T13912-2002
USA ANSI/NAAMM(MBG531-88) ASTM (A36) ASTM(A123)
England BS4592-1987 BS4360 ( 43A) BS729
Australia AS1657-1992 AS3679 AS1650

Type of Steel Grating

Comparison of Feature:

plain steel grating
Plain:One of the most widely used grating, available for flooring, sidewalk, dranage pit cover, stair tread, etc.

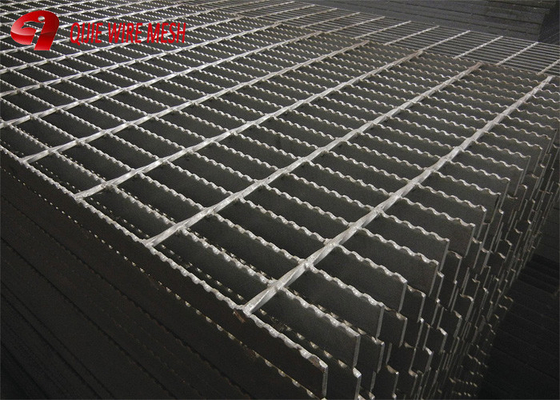

serrated steel grating
Serrated:Better non-skid property & safety comparing to plain grating

I shape steel grating
I-shape:Lighter, more economical and practical comparing to plain grating.



Process of steel grating:

process of steel grating

steel grating steel grating
steel grating steel grating
