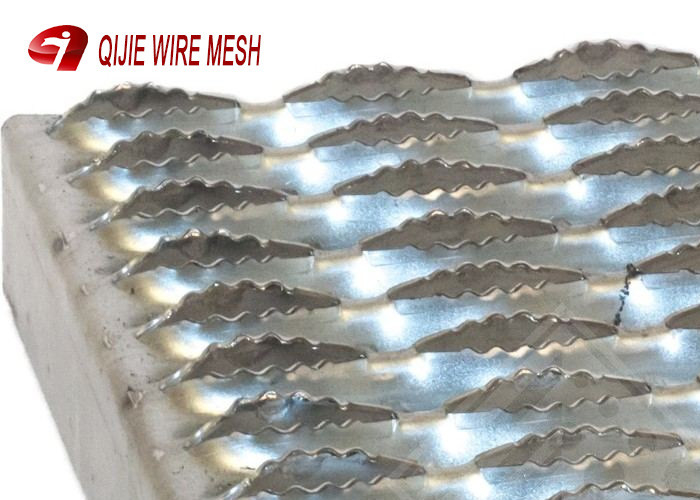

3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity

3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity
3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity 3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity 3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity 3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity

Large Image :  3mm Stainless Galvanized Steel Grating High Strength Good Bearing Capacity

Product Details:
Place of Origin: hebei,China
Brand Name: QIJIE
Certification: iso
Model Number: grip strut grating
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Aluminum,Galvanized Steel Wire Products Name: Grip Strut Grating
Type: Perforated Mesh,Etching Or Stamping Technique: Perforated
Weave Style: Perforated,Punched,Punching Hole Shape: Round,diamond,etc,plum Blossom,octagonal
Surface Treatment: Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca Color: All The Color Chip Have,White,blue,Silver,golden
Product Name: Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh Thickness: 0.5-8mm,0.3MM- 8MM
Feature: Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance Width: 1m Or 1.22m,1.22 M Or Below
Usage: Etc.,decorative,oil/air Filter,food Length: 2m Or 2.44m
Size: Customized Size,standard Shape: Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch: 1.0mm-100MM,or As Request.
High Light:

galvanized grating

,

galvanised grating

3mm Stainless Steel Grip Strut Safety Grating High Strength Good Bearing Capacity



Stainless steel plate SS304 material is good used in production of grip strut grating, strength and working life is superior to carbon steel and aluminum plate, of course the cost is higher too. Few clients use stainless steel 201 or 316L, SS201 material is hardness, if no bending, plate after punching is easy deformed, SS316L is good one just cost is higher more.



Because of good performance, thickness of 1.5mm is available too, you can choose 1.5mm, 2.0mm, 2.5mm, and 3.0mm.



Custom Design:

  • All Guorun safety gratings are also available as flat blanks without folded edges.

  • In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.

  • For manufacturing reasons, these flat cuts have a slightly curved finish.

  • Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.

  • Gratings with unperforated edges or surfaces on one or both front surfaces are also available.

  • We can also be supplied with ø 5-mm drain holes.

  • Please contact us for further technical questions.



Materials of grip strut plank grating, stairs trends grating

  1. Pre-Galvanized Steel (ASTM A-924-G90): 12 Gauge or 14 Gauge.
  2. Hot Rolled Steel: 12 Gauge or 14 Gauge.
  3. Aluminum Alloy 5052H32: 0.080" Thick or .100" Thick .
  4. Stainless Steel Type 304 or Type 316: 16 Gauge.

grip strut grating

2 Diamond / 9-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
2 Diamonds 9-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamond / 13-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
3 Diamonds 13-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamond / 23-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
5 Diamonds 23-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
6 Diamond / 27-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
6 Diamonds 27-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
8 Diamond / 36" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
8 Diamonds 36" 1-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")





pattern of grip strut grating

drawing of grip strut grating

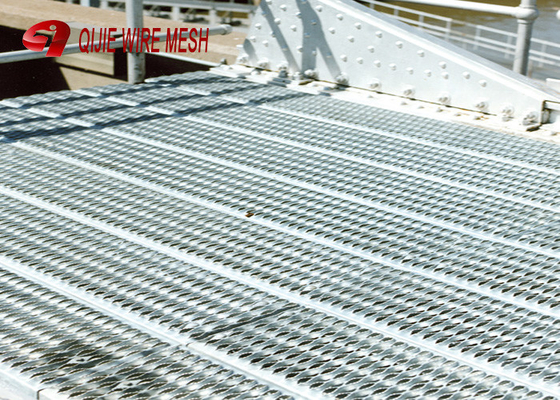

Applications of Grip Strut Plank

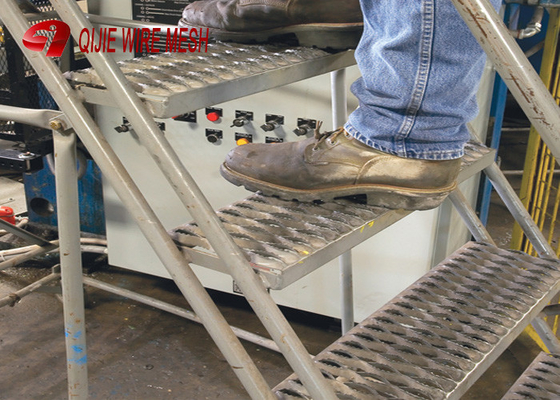

Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.





Characteristics of the perforated Grtp Strut Grating:



With non-slip, anti-rust, anti-corrosion, durable features and beautiful appearance. Punching hole type with raised herring

bone, raised crosswise, round, crocodilelips type, tear-type. These hole types are all CNC punching holes.



Advantages of grip strut grating

Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.

• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.

• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.

• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

• These light weight yet brawny panels permit substantial reduction in structural steel requirements.



Versatility of grip strut grating

Available in a variety of standard widths and channel heights.

• Numerous non-standard shapes and sizes.

• One piece construction with no welds or rivets to fail, minimizes need for plant fabrication.

• Special shapes and forming can be accomplished to suit unusual requirements.



Safer, serrated surface of grip strut grating

• Grips soles securely in all directions.

• Non-slip surface is ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.

• Openings are small enough to catch most falling tools and other dangerous objects.

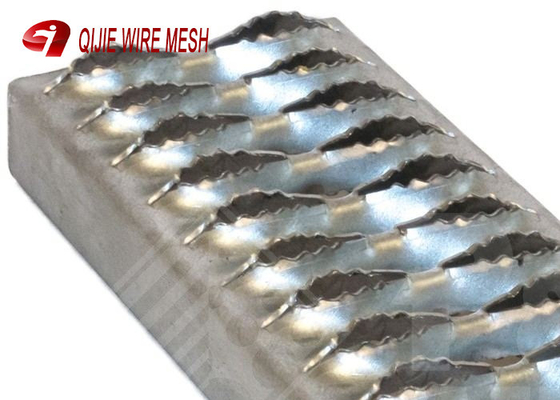

grip strut grating



grip strut grating grip strut grating
grip strut grating grip strut grating
grip strut grating grip strut grating
