Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates

Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates
Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates

Large Image :  Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates

Product Details:
Place of Origin: hebei,China
Brand Name: QIJIE
Certification: iso
Model Number: grip strut grating
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Aluminum,Galvanized Steel Wire Products Name: Grip Strut Grating
Type: Perforated Mesh,Etching Or Stamping Technique: Perforated
Weave Style: Perforated,Punched,Punching Hole Shape: Round,diamond,etc,plum Blossom,octagonal
Surface Treatment: Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca Color: All The Color Chip Have,White,blue,Silver,golden
Product Name: Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh Thickness: 0.5-8mm,0.3MM- 8MM
Feature: Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance Width: 1m Or 1.22m,1.22 M Or Below
Usage: Etc.,decorative,oil/air Filter,food Length: 2m Or 2.44m
Size: Customized Size,standard Shape: Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch: 1.0mm-100MM,or As Request.
High Light:

galvanised grating

,

galvanised steel grating

Stainless Steel 2MM Grip Strut Grating 240 * 4020MM / Anti Slip Tread Plates​



Crocodile mouth hole antiskid plate suitable for sewage treatment,water supply,power plant and other industrial outdoor,anti-skid pedal,the vehicle train ladder,ladder step plate is also used for the anti-skid and interior slip.

The new type of factories and enterprises growing,people's safety consciousness is more and more high,a lot of factories for the company members pay work-related injury insurance premiums to avoid direct cause accident economic loss,but also can not effectively avoid work in the personnel injury rate,alligator cleat high antiskid effect,weight high,strong resistance to pressure the application,it reduces the damage,guarantee the safety of operation workshop.



specification about anti-skid perforated panel/antiskid plate :

Materials: Aluminum Alloy Plate, Staniless Steel Plate, Carbon Steel Plate, etc.

Surface: SS, hot dipped galvanized, electro-galvanized.

Shaped hole: alligator mouth hole, round, drum-type and so on

Thickness: 0.8mm-6.0mm
Width: 0.3m-1.5m
Length: 1m-6.5m



Production process of crocodile mouth skid plate: Generally, shearing bending-welding-forming according to different

purposes (iron plate can be used for hot-dip galvanizing and anti-rust treatment) This product has good anti-slip effect, long

service life and beautiful appearance. Characteristics



grip strut grating



Perforated Diamond Metal Grtp Strut GratingSpecification



Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard



2 Diamond / 9-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
2 Diamonds 9-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamond / 13-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
3 Diamonds 13-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamond / 23-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
5 Diamonds 23-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
6 Diamond / 27-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
6 Diamonds 27-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
8 Diamond / 36" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
8 Diamonds 36" 1-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")





pattern of grip strut grating





Applications of Grip Strut Plank

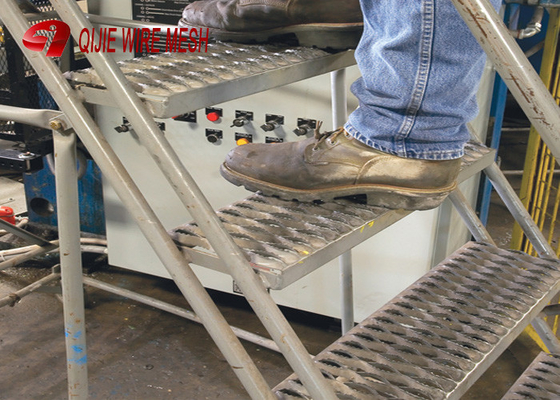

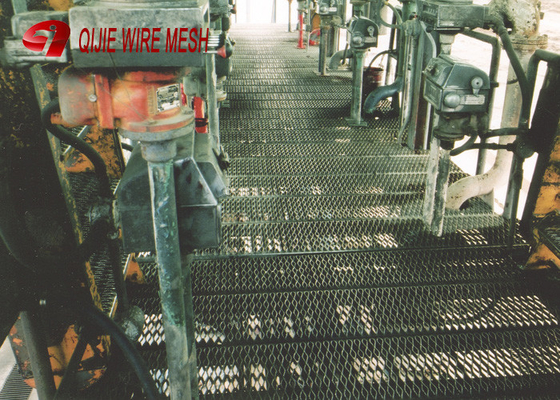

Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.

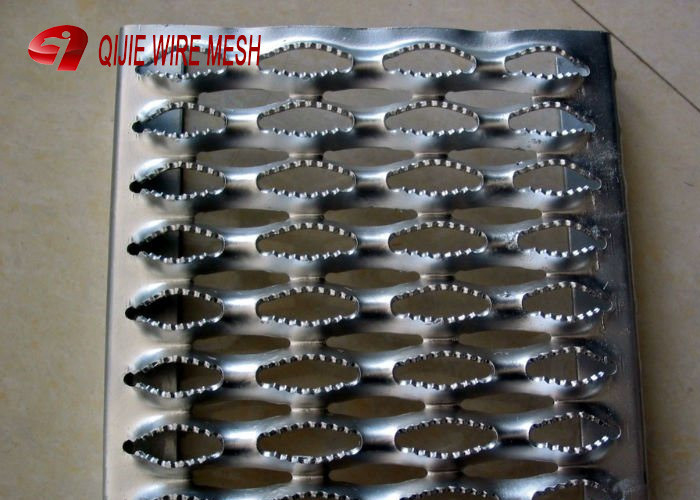

Characteristics of the perforated Grtp Strut Grating:



With non-slip, anti-rust, anti-corrosion, durable features and beautiful appearance. Punching hole type with raised herring

bone, raised crosswise, round, crocodilelips type, tear-type. These hole types are all CNC punching holes.



Advantages of grip strut grating

Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.

• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.

• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.

• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

• These light weight yet brawny panels permit substantial reduction in structural steel requirements.



Feature advance:

1, low cost, zinc plate is cheaper compare to after hot dipped galvanized

2, easy install, but need think about carrying capacity

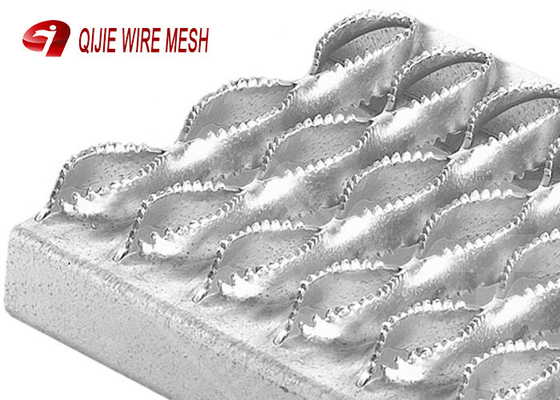

3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.

4, low maintain cost.



grip strut grating



grip strut grating grip strut grating
grip strut grating grip strut grating
grip strut grating grip strut grating
