SS304 Perforated Metal Mesh Grip Strut Grating Walkway For Construction Rust Proof

China SS304 Perforated Metal Mesh Grip Strut Grating Walkway For Construction Rust Proof supplier
SS304 Perforated Metal Mesh Grip Strut Grating Walkway For Construction Rust Proof supplier SS304 Perforated Metal Mesh Grip Strut Grating Walkway For Construction Rust Proof supplier

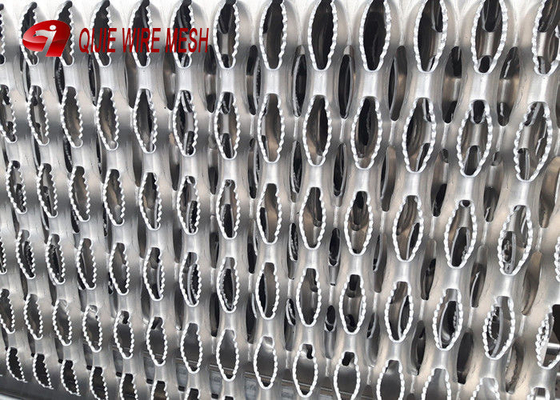

Large Image :  SS304 Perforated Metal Mesh Grip Strut Grating Walkway For Construction Rust Proof

Product Details:

Place of Origin: hebei,China
Brand Name: QIJIE
Certification: iso
Model Number: grip strut grating

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Material: Aluminum,Galvanized Steel Wire Products Name: Grip Strut Grating
Type: Perforated Mesh,Etching Or Stamping Technique: Perforated
Weave Style: Perforated,Punched,Punching Hole Shape: Round,diamond,etc,plum Blossom,octagonal
Surface Treatment: Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca Color: All The Color Chip Have,White,blue,Silver,golden
Product Name: Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh Thickness: 0.5-8mm,0.3MM- 8MM
Feature: Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance Width: 1m Or 1.22m,1.22 M Or Below
Usage: Etc.,decorative,oil/air Filter,food Length: 2m Or 2.44m
Size: Customized Size,standard Shape: Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch: 1.0mm-100MM,or As Request.

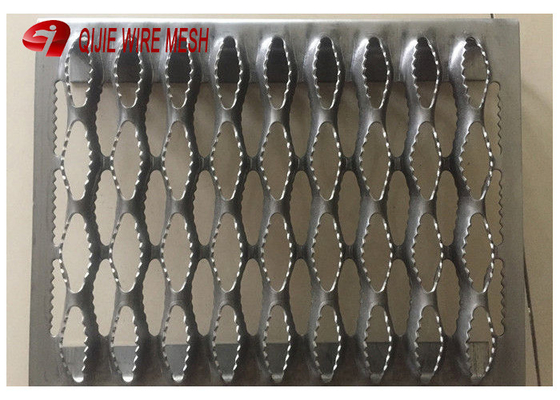

Stainless Steel 2MM Grip Strut Grating Sample For Exporting​



Stainless steel SS304 is very popular material of grip strut grating, the main character is good rust proof and good bearing capacity. The size of sample is 240mm width, bent 50mm and fold 25mm. With diameter 10mm round hole at two sides. Finished product is 4020mm length. We will stick film at plate surface before punching to avoid scratch.



specification about anti-skid perforated panel/antiskid plate :

Materials: Aluminum Alloy Plate, Staniless Steel Plate, Carbon Steel Plate, etc.

Surface: SS, hot dipped galvanized, electro-galvanized.

Shaped hole: alligator mouth hole, round, drum-type and so on

Thickness: 0.8mm-6.0mm
Width: 0.3m-1.5m
Length: 1m-6.5m



Production process of crocodile mouth skid plate: Generally, shearing bending-welding-forming according to different

purposes (iron plate can be used for hot-dip galvanizing and anti-rust treatment) This product has good anti-slip effect, long

service life and beautiful appearance. Characteristics



grip strut grating



Perforated Diamond Metal Grtp Strut GratingSpecification



Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard



2 Diamond / 9-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
2 Diamonds 9-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
9-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamond / 13-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
3 Diamonds 13-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
13-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamond / 23-1/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
5 Diamonds 23-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
23-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
6 Diamond / 27-3/4" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
6 Diamonds 27-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
27-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
8 Diamond / 36" Width
Diamond Pattern Width Channel Depth galvanized Aluminum
8 Diamonds 36" 1-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
36" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")





pattern of grip strut grating





Maximum lengths:

  • Untreated or galvanised steel: 6,000 mm.
  • Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
  • Aluminium: 6,000 mm.

Standard widths:



For the full range of materials and finishes: 120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm.



Standard height:



For the full range of materials and finishes: 40 mm / 50 mm / 75 mm.



Application of Perforated Diamond Metal Safety Grating


Because the diamond safety grating provides high slip resistance and has anti-rust and anti-corrosion properties, it is widely

used at sewage treatment, power, running water factory. It is also used for decoration against slipping, etc.



grip strut grating



grip strut grating grip strut grating
grip strut grating grip strut grating
grip strut grating grip strut grating
