Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Mesh Openning: | 1/2" X 1/2" |
|---|---|---|---|
| Size: | 1 X 20meters | Wire Diameter: | 2mm |
| Diameter Of The Wire: | From 0.3mm -15mm | Tensile Length Of The Wire:: | 1200MpA |
| Technique: | Woven,Weave | Application: | Screen,Filters,Woven Wire Mesh,mining,rail Road |
| Type: | Crimped Wire Mesh,Weave Wire Mesh,Wire Cloth | Weave Style: | Plain Weave,Dutch Weave,flat Top Crimped,twill Weave,intermediate Crimped |
| Product Name: | Screen Mesh,crimped Wire Mesh | Wire Diameter: | Requirement |
| Color: | Silver,customized | Usage: | Screening,vibrating Screen,Liquid Filter,Mineral |
| Feature: | Anti-corrosion,high Durability,abrasion Resistance,Durable,impact Resistance | ||
| High Light: | vibrating sieve screen,vibrating screen wire mesh |
||

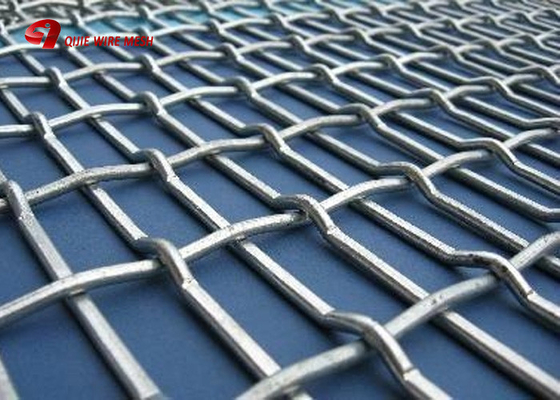

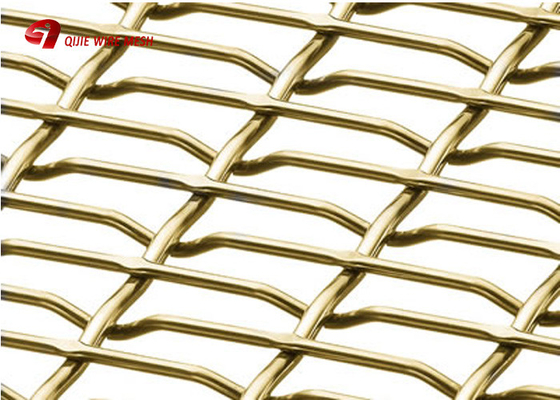

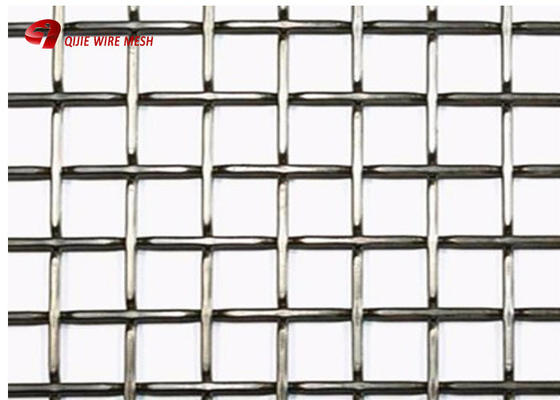

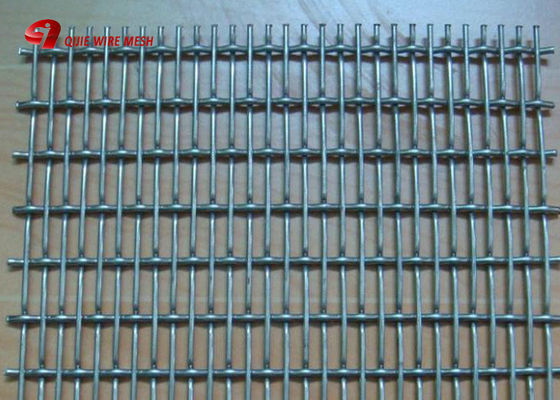

woven aluminum wire Lock Crimped Wire Mesh for balcony railings and stair railings
Lock crimped wire mesh/screen is produced on looms by weaving previously crimped wires. This type of wire mesh prevents materials from slipping down and is commonly used as heavy duty wire mesh in the mining and architectural applications.
Lock crimped weave is a more modern crimp style, the warp wire and weft wire are crimping at the points of intersection and have clear bumps, while the wires on a lock crimp are straight between intersections.
We can offer lock crimped wire mesh in the standard specifications, opening sizes range from 4.0 mm to 100.0 mm, while wire diameters range from 0.8 mm to 4.8 mm, and the manufactured width is between 1 m and 4 m. The woven mesh are commonly constructed with materials of carbon steel and stainless steel.
Benefits
Greater precision
Particularly smooth surface
Keep the wires in a specific position
Wear resistance and firm structure
strong and durable, long life
Lock crimped wire mesh materials
Lock crimped wire mesh is available in five different series of wire materials:
Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel
Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Other available, please ask
Application
Usage of lock crimped wire mesh includes:
In the architectural & decorative industries, for the screen of window, fence and ceiling.
In the mining & aggregate industries, for the quarrying screen of vibrating machine.
In the petrochemical & chemical industries, for test sieve.
Lock crimped wire mesh rolls
Roll width 1 m, 1.22 m, 1.5 m to 4 m
Roll length 15 m, 30 m to 60 m
Other rolls size on request
Lock crimped wire mesh panels
Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m
Panel length: 1 m, 1.22 m, 1.5 m to 6 m
Other sheets size on request
Crimp styles
Technical parameter
Lock crimped wire mesh data sheets
| Crimped Wire Mesh | ||
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
When ordering or requesting a quote for lock weave crimped wire mesh, please specify:
Number of length 30 m for 1 m wide rolls or size required
Crimp style eg. Lock crimp weave
Aperture eg. 30 mm
Diameter of wire eg. 3.5 mm
Material eg. Carbon steel
|
|
|
|
|
|
