High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting

China High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting supplier
High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting supplier High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting supplier High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting supplier High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting supplier

Large Image :  High Temperature Lock Stainless Steel Crimped Wire Mesh Weaving After Crimpting

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 1/2"x1/2"

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 100rolls per week
Contact Now
Detailed Product Description
Material: Aluminum 5052 Mesh Openning: 1/2" X 1/2"
Size: 1 X 20meters Wire Diameter: 2mm
Diameter Of The Wire: From 0.3mm -15mm Tensile Length Of The Wire:: 1200MpA
Width: 1.2m Length: 20m
Application: Screen,Filters,Woven Wire Mesh,mining,rail Road Type: Lock Crimped Wire Mesh

High Temperature Lock Crimped Wire Mesh Weaving After Crimpting



We are one of the leading manufacturers and supplier of Pre Crimped Wire mesh made with pre-crimped wire can be made with extra roll length for special uses. Using the precision machine, the intermediate crimped wire is pre-crimped by the rotary dies. The pre-crimped wire can assure the spacing of the wires. When the wires are woven together, the structure can ensure the wires will lock firmly together at the intersections.

This kind of extra wide crimped mesh is mostly woven of stainless steel wire materials. Our range of pre-crimped wire mesh is consisted of accurate openings and is woven much tighter than the normal weave. It is usually ideal for vibrating screens and many other applications where sizing becomes significant. Crimped mesh is made in the opening forms of square mesh or rectangular mesh. Rectangular opening crimped mesh refers normally to heavy type crimped mesh for mining, coal plant or pig breeding which require big loading capacity.



1. Material: galvanized steel wire or stainless steel wire.

2. Weaving: Weaving after crimping.

3. Uses: crimped wire mesh in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.

4. Specifications of Crimped Wire Mesh:



Crimped Wire Mesh
Wire Gauge(SWG) Wire Diameter(mm) Mesh/Inch Aperture(mm) Weight(kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2



Flat top crimped
Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in the vibrating screen.
Lock crimped
Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.
Double crimped
Double crimped is also called plain weave. Different from the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimp in warp and weft wire. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.
Intermediate crimped
Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. The double intermediate crimped means both the weft wire and warp wire is pre-crimped and then woven together.
Pre-crimped process
Using the precision machine, the intermediate crimped wire is pre-crimped by the rotary dies. The pre-crimped wire can assure the spacing of the wires. When the wires are woven together, the structure can ensure the wires will lock firmly together at the intersections.

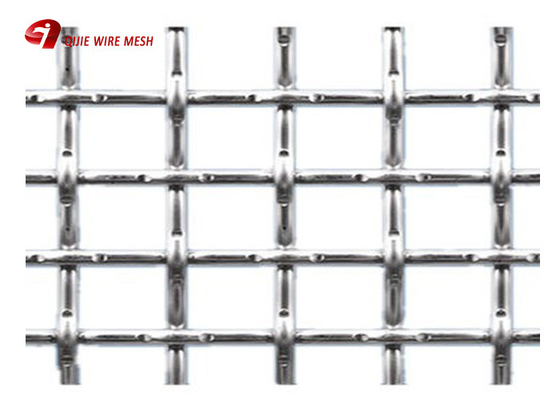

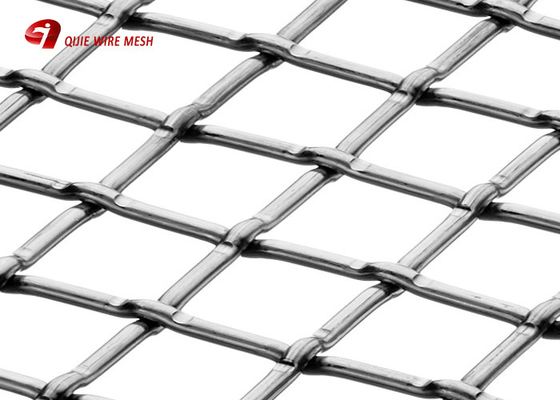

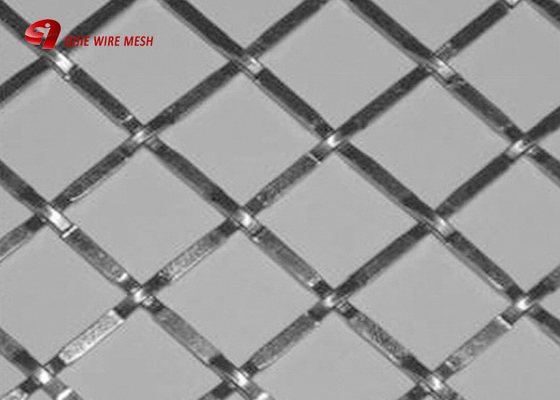

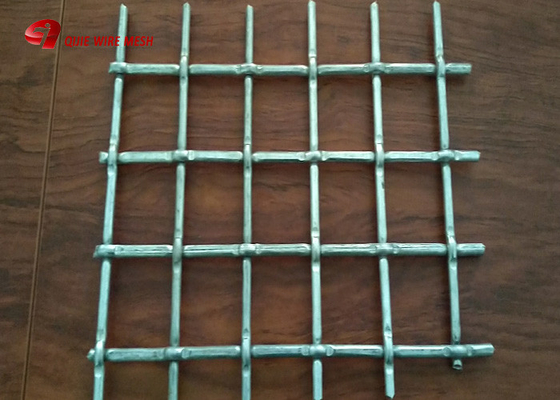

lock crimped wire mesh lock crimped wire mesh
lock crimped wire mesh lock crimped wire mesh
lock crimped wire mesh lock crimped wire mesh
