Light Weight Small Hole Aluminum Expanded Metal Mesh With LWD Max 20mm

China Light Weight Small Hole Aluminum Expanded Metal Mesh With LWD Max 20mm supplier

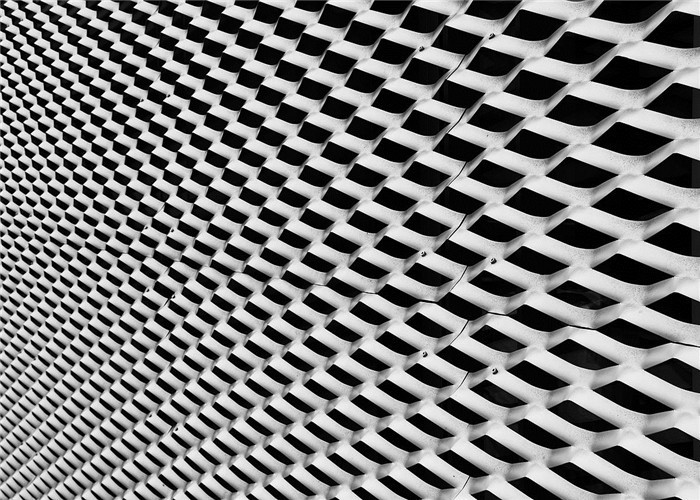

Large Image :  Light Weight Small Hole Aluminum Expanded Metal Mesh With LWD Max 20mm

Product Details:

Place of Origin: Hebei, China
Brand Name: QIJIE
Certification: ISO, SGS
Model Number: QJ-EMS01

Payment & Shipping Terms:

Minimum Order Quantity: 300 square meters
Price: USD 0.5-8/M2
Packaging Details: pallets
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 30000 m2/month
Contact Now
Detailed Product Description
Material: Stainless Steel/Aluminum,galvanized Plate Type: Expanded Mesh
Surface Treatment: Hot Dipped Galvanized,powder Coating Product Name: Expanded Metal Mesh,Aluminum Expanded Metal
Hole Shape: Diamond Hole Width: Customers' Requirement
Feature: Corrosion Resistance,Durable,Easily Assembled Usage: Construction,Curtain



Light Weight Expanded Metal Small hole Expanded metal with LWD max 20mm





Material: galvanized panel, stainless steel panel, Aluminum steel panel

Hole size shape: diamond size, hexagonal size, horse hoof shape size.

Surface dealing: galvanized plating after weaving, chromium plating after weaving

Hole size: 1.0X2.0mm, 2.0X3.0mm, 2.0X4.0mm, 3.0X6.0mm, 4.0X8.0mm, 5.0X10.0mm, 6.0X10.0mm, 7.0X10.0mm, 7.0mmX12.0mm

Feature: small hole expanded metal have all of the characteristic of big hole expanded metal, besides, it have its own feature such as light weight and firm, easy handing, visible, high tensile strength, low cost.

Usage: such small hole expanded metal widely used on filter element, furniture, electronic products, ventilation, fence, decoration, barbecue, medical apparatus and instruments, art craft, ceiling and so on.





Material Thickness SWD LWD Strand Width W/SQF W/SQM
Inch MM Inch MM Inch MM Inch MM Pounds KG
0.0197 0.50 0.1181 3.00 0.2362 6.00 0.0197 0.50 0.27 1.31
0.0197 0.50 0.1260 3.20 0.3150 8.00 0.0236 0.60 0.30 1.47
0.0197 0.50 0.1969 5.00 0.3937 10.00 0.0276 0.70 0.23 1.10
0.0197 0.50 0.2362 6.00 0.4921 12.50 0.0315 0.80 0.21 1.05
0.0197 0.50 0.2756 7.00 0.5512 14.00 0.0354 0.90 0.21 1.01
0.0197 0.50 0.3150 8.00 0.6299 16.00 0.0394 1.00 0.20 0.98
0.0197 0.50 0.3543 9.00 0.7874 20.00 0.0433 1.10 0.20 0.96
0.0197 0.50 0.4724 12.00 1.1811 30.00 0.0531 1.35 0.18 0.88
0.0197 0.50 0.3937 10.00 0.9843 25.00 0.0441 1.12 0.18 0.88
0.0315 0.80 0.3937 10.00 0.9843 25.00 0.0441 1.12 0.29 1.41
0.0315 0.80 0.4724 12.00 1.1811 30.00 0.0531 1.35 0.29 1.41
0.0315 0.80 0.5906 15.00 1.5748 40.00 0.0661 1.68 0.29 1.41
0.0394 1.00 0.3937 10.00 0.9843 25.00 0.0441 1.12 0.36 1.76
0.0394 1.00 0.4724 12.00 1.1811 30.00 0.0531 1.35 0.36 1.77
0.0394 1.00 0.5906 15.00 1.5748 40.00 0.0661 1.68 0.36 1.76
0.0472 1.20 0.3937 10.00 0.9843 25.00 0.0445 1.13 0.44 2.13
0.0472 1.20 0.4724 12.00 1.1811 30.00 0.0531 1.35 0.43 2.12
0.0472 1.20 0.5906 15.00 1.5748 40.00 0.0661 1.68 0.43 2.11
0.0472 1.20 0.7087 18.00 1.9685 50.00 0.0799 2.03 0.44 2.12
0.0591 1.50 0.5906 15.00 1.5748 40.00 0.0665 1.69 0.54 2.65
0.0591 1.50 0.7087 18.00 1.9685 50.00 0.0799 2.03 0.54 2.66
0.0591 1.50 0.8661 22.00 2.3622 60.00 0.0972 2.47 0.54 2.64
0.0591 1.50 1.1417 29.00 3.1496 80.00 0.1280 3.25 0.54 2.64
0.0787 2.00 0.7087 18.00 1.9685 50.00 0.0799 2.03 0.73 3.54
0.0787 2.00 0.8661 22.00 2.3622 60.00 0.0972 2.47 0.72 3.53
0.0787 2.00 1.1417 29.00 3.1496 80.00 0.1283 3.26 0.72 3.53
0.0787 2.00 1.4173 36.00 3.9370 100.00 0.1594 4.05 0.72 3.53
0.0787 2.00 1.7323 44.00 4.7244 120.00 0.1949 4.95 0.72 3.53
0.1181 3.00 1.4173 36.00 3.9370 100.00 0.1594 4.05 1.09 5.30
0.1181 3.00 1.7323 44.00 4.7244 120.00 0.1949 4.95 1.09 5.30
0.1181 3.00 2.1654 55.00 5.9055 150.00 0.1965 4.99 0.88 4.27
0.1181 3.00 2.5591 65.00 7.0866 180.00 0.1811 4.60 0.68 3.33
0.1575 4.00 0.8661 22.00 2.3622 60.00 0.1772 4.50 2.63 12.85
0.1575 4.00 1.1811 30.00 3.1496 80.00 0.1969 5.00 2.14 10.47
0.1575 4.00 1.4961 38.00 3.9370 100.00 0.2362 6.00 2.03 9.92





Light Weight Small Hole Aluminum Expanded Metal Mesh With LWD Max 20mm

1)Q:Are you Trading company or Manufacturer?



A: We are an Industry&Trade Company .Our factory name is Anping Jiufu Metal Wire Mesh Co., LTD



2) Q:What type of production equipment do you have?

A: A sincere commitment to contract and service has helped us to expand quickly in the past years to become a big factory with 26 sets of stainless steel wire drawing machines, 15 sets of iron wire drawing machines, 30 sets wire mesh weaving machines and four production lines of wire galvanizing.

3) Q:Why should I choose you? What's your advantages? Industries you are serving?



A: We are a professional manufacturer and have 15 years production and management experience in the field of wire mesh .Our factory is now also ISO 9001 certified.

We can provide our customers with a good solution in the area of production design, production process,packaging and after-sale service.Customer satisfaction is our sole pursuit.
