Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh

Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh
Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh

Large Image :  Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certification ISO2019030
Model Number: SGS2019030
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter/Square Meters
Price: Discuss
Packaging Details: Wooden case packing, pallet packing
Delivery Time: within 7-30 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 4000 Square Meter/Square Meters per Week
Detailed Product Description
Material:: Stainless Steel Wire Aluminium Plate, Perforated Plate, Aluminum Application:: Protecting Mesh, Industrial, Agricultural And Medical Apparatus An
Weave Style:: Plain Weave Technique:: Perforated
Process:: Puching Color:: Customized
Length:: 1-6m Hole Shape:: 0.5-200mm
High Light:

perforated metal screen

,

perforated mesh panels

  Perforated panels round/ square/ diamond,expanded metal mesh punching hole mesh



Product Description

1. Perforated metal material:
Stainless steel plate, steel plate, copper plate, aluminum plate, nickel plate, Al-Mg plate
2. Perforated metal surface treatment:
Electro galvanized, hot-dipped galvanized, PVC coated.
3. Specifications:
Coil1x20m, flat 1x2m, can also be customized according to customer needs processing
Production process: Mould-Punching-Cutting-Edge trimming-Leveling-Cleaning
4. Perforated metal hole pattern:

Round hole, square hole. Slot hole round ends, slot hole, triangle hole, hexagonal hole, scale hole. Rectangular hole, Cross, Diamond

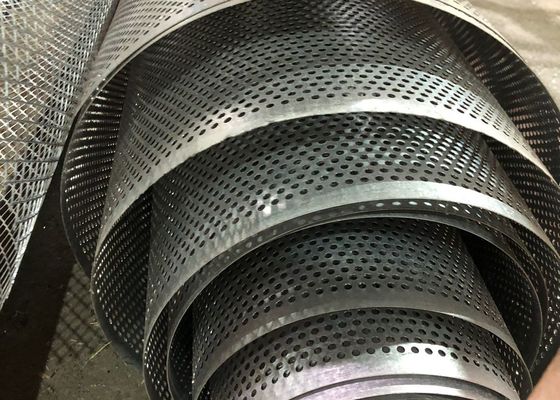

Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh 0

Round hole: Plate thickness 0.4-6.0mm
Hole size: 1.0-25mm
Center to center distance: 3-34mm
Opening rate: 23%-49%
Square holes: Plate thickness 0.8-3.0mm
Hole size 3.0-50.0mm
Center to center distance: 5.0-100.0mm
Opening rate: 16%-64%
Slot holes round ends: Plate thickness: 0.5-3.0mm
Hole size: 1.0x1.0mm - 10 x 45mm
Center to center distance: 4.0 X6.0 - 20 x 60mm
Opening rate: 18%-76%

5.Perforated metal characteristics:
1). Various kind of hole patterns.
2). Accurate hole s, bending resistance, corrosion resistance.
3). Easy to process and install, good sound absorption
4). Durable and long service life.
5). Attractive appearance and wide range of thickness available.

6. Perforated metal application:
1). Noise control barrier wall construction objects, generator room, factories,
2). Can also be used in the building ceiling, wall of sound-absorbing material;
3). Can be used for building stairs, balconies, tables and chairs in the beautifully decorated plate of Environmental protection;

7. Perforated metal packing:
Perforated metal appears in roll type and flat type. They are packed in wooden pallets generally and wrapped with plastic film. We can also pack according to customer requirements.

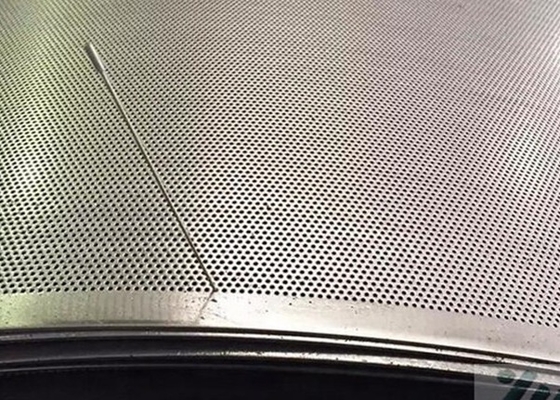

Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh 1

Opening (mm) Center type(mm) Thickness of sheet(mm)
min-max
Size (mm) Stainless
Steel
Iron Aluminium
2×10 ≥3 0.4-2 1220×2440
2×15 ≥3 0.4-2 1220×2440
2×20 ≥3.5 0.4-2 1220×2440
1.5×15 ≥3.5 0.4-2 1220×2440
3×10 ≥4 0.4-2.5 1220×2440
2.5×10 ≥3.5 0.4-2.5 1220×2440
3.5×10 ≥4.5 0.4-3 1220×2440
4×5-25 ≥5 0.4-3.5 1220×2440
5×5-25 ≥6.5 0.4--4 1220×2440
10×10 ≥12 0.5--4 1220×2440
12×15 ≥14 0.5-4 1220×2440
15×16 ≥18 0..6--4 1220×2440
20×20 ≥23 0.8---4.5 1220×2440
22×23 2≥5 0.8-4.5 1220×2440
Above specifications for reference only,specifications can be customized according to user needs.



Products Show

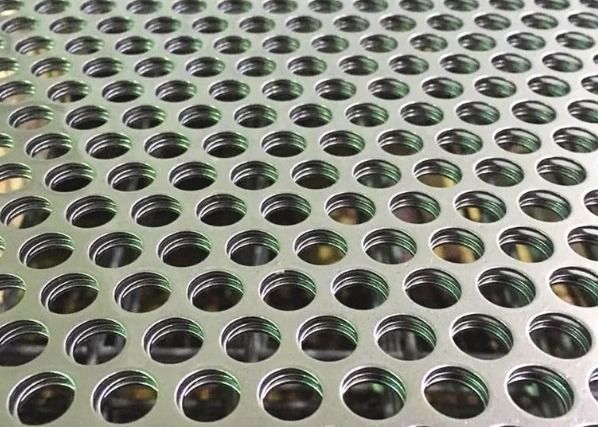

Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh 2

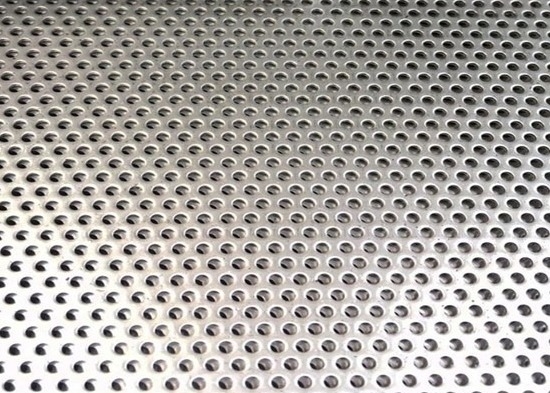

Round / Square / Diamond Expanded Perforated Metal Mesh , Punching Hole Mesh 3

Our Service



Inspections:

Hebei QiJie Can meet SGS, CE, CCIC, CCOV, COC, SONCAP, BV Inspection, etc.

1. Inspect materials by Handheld XRF
2. Inspection items
Materials: Chemical elements, Zinc thickness/Weight Brightness, Thickness of Plate, etc.
Finished products: Hole size, Zinc thickness, Thickness of Plate, Width, Length, Weight, Hope Shape, Surface should be uniform etc.

Guarantee:

The goods can be returned or make compensation if you are not satisfied with the quality.



Payment Term



Payment:T/T(30%T/T in advance and 70% against B/L copy within 5 days), 100% irrevocable L/C at sight.


Other payment term could be negotiatory.
FAQ

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance against of BL copy within 7days.
If you have another question, pls feel free to contact us.
