Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface

China Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface supplier
Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface supplier Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface supplier Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface supplier

Large Image :  Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface

Product Details:

Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008, SGS, CE
Model Number: MFG-0031

Payment & Shipping Terms:

Minimum Order Quantity: 100 Sqm
Price: USD5.30-USD35.30
Packaging Details: Iron or wooden pallet or wooden case with waterproof cloth.
Delivery Time: 10-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sqm/per day
Contact Now
Detailed Product Description
Material: Carbon Steel,aluminum,stainless Steel,galvanized Steel Type: Expanded
Application: Protecting Screen,decorative Mesh Processing: Press
Name: Expanded Aluminium Mesh Sheet Length: As Required
Hole Shape: Diamond,square,hexagonal,honeycomb,sunshade,viking,network,galaxie Ect. Finish: Anodized,powder Coated,pvdf

Heavy Duty Expanded Metal Grating Durable Ramps/Platforms Aluminum Sheet Lightweight Surface



Expanded Grating is milled in a similar manner to expanded metal. The difference is in the thickness of the strand. Expanded grating, because of the thicker strand gauge, has better load bearing characteristics and therefore lends itself to a wider variety of applications. It has features of lightweight, strong and durable surface for industrial stairs, platforms or ramps. Heavy-duty expanded metal grating from Xmesh can meet your requirements. This type of industrial grating is made from aluminum, stainless or carbon steel sheet and plate, ensuring it can hold up well in even the most demanding work environments. Each sheet consists of one single piece of steel that is completely free of joints or welds. Heavy duty expanded metal grating is wildly used in:

  • Catwalks, ramps, stairs, platforms
  • Maintenance platforms
  • Elevated walkways
  • Mezzanines and heavy duty shelving
  • Truck-cab safety screens, vehicle flooring and transport protection
  • Cold storage
  • Ship and offshore rig flooring
  • Partitions where high security is important
  • Industrial stairs, window protection and doors
  • Infill panels

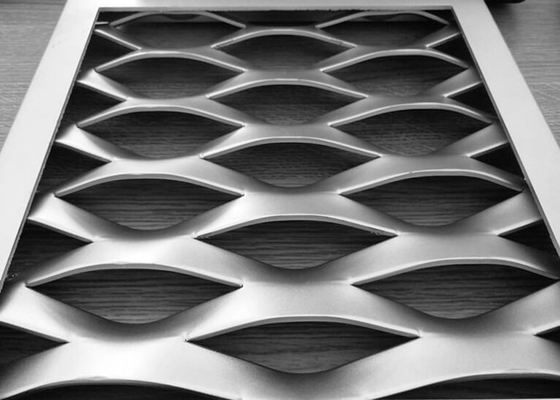

​​Product Image

Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface

Product Dimension

Aluminum Flat Standard
Style Design size/In Strand/In

Overall

Thickness/In



%Open Area
SWD LWD WIDTH
3/16" 0.032 0.2 0.5 0.095 0.040 55
1/2" 0.051 0.5 1.270 0.104 0.040 61
1/2" 0.081 0.5 1.270 0.105 0.060 58
3/4" 0.051 0.923 2.125 0.122 0.040 72
3/4" 0.081 0.923 2.125 0.143 0.070 70
3/4" 0.125 0.923 2.125 0.187 0.095 62
3/4" 0.187 0.923 2.000 0.221 0.180 61
1-1/2" 0.081 1.333 3.150 0.143 0.081 81
1-1/2" 0.125 1.333 3.150 0.181 0.120 76



Carbon Steel Flat Standard
Style Design size/In Strand/In

Overall

Thickness/In

%Open Area
SWD LWD WIDTH
3/16" #22 0.226 0.500 0.058 0.027 49
3/16" #20 0.226 0.500 0.063 0.032 44
1/4" #20 0.250 1.050 0.079 0.030 35
1/4" #18 0.250 1.050 0.080 0.040 35
5/16" #20 0.333 1.030 0.075 0.032 60
5/16" #18 0.333 1.030 0.099 0.040 45
1/2" #20 0.500 1.250 0.079 0.029 65
1/2" #18 0.500 1.250 0.097 0.039 60
1/2" #16 0.500 1.250 0.096 0.050 63
1/2" #13 0.500 1.250 0.107 0.070 52
3/4" #16 0.923 2.100 0.111 0.048 74
3/4" #14 0.923 2.100 0.105 0.061 74
3/4" #13 0.923 2.100 0.106 0.070 74
3/4" #10 0.923 2.100 0.160 0.070 68
3/4" #9 0.923 2.100 0.165 0.120 63
1" #16 1.000 2.500 0.098 0.050 78
1" #14 1.000 2.300 0.125 0.070 80
1" #12 1.000 2.300 0.156 0.085 74
1" #10 1.000 2.300 0.160 0.110 58
1 1/2" #12 1.410 3.200 0.116 0.085 85
1 1/2" #10 1.330 3.200 0.188 0.110 63
1-1/2" #16 1.330 3.200 0.119 0.048 83
1-1/2" #13 1.330 3.200 0.116 0.070 80
1-1/2" #9 1.330 3.200 0.158 0.110 75

Our range of precision engineered Expanded Metal Flat are well known for its durability, beautiful appearance, lightness in weight and good ventilation.These expanded metal sheets are manufactured using high grade raw material such as aluminum, stainless steel and carbon steel. Xmesh's expanded metal sheets are used for designing, fencing and concrete reinforcements. Manufactured as per customer''s requirements, our range can be availed at competitive rates.

Features:

  • Ideal for safety guards on equipment or machinery
  • Economical and wear-resistance
  • Designed by expert quality team

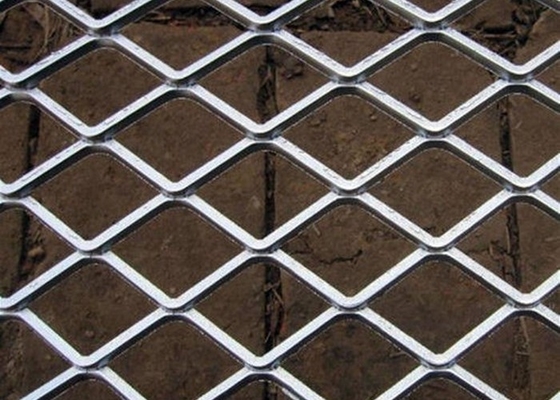

Hole shape

Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface

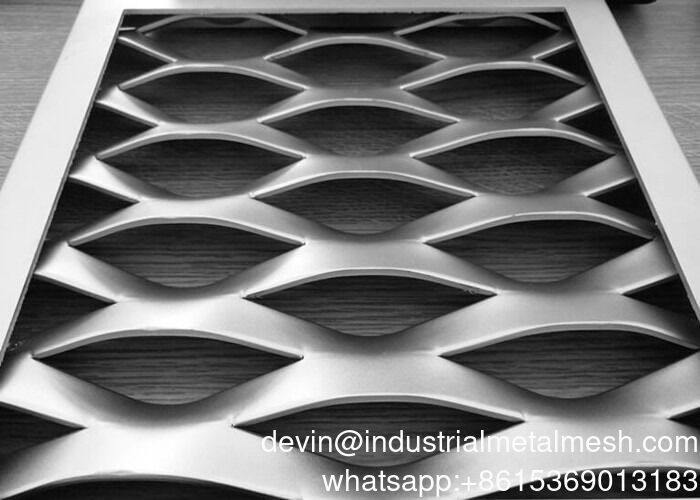

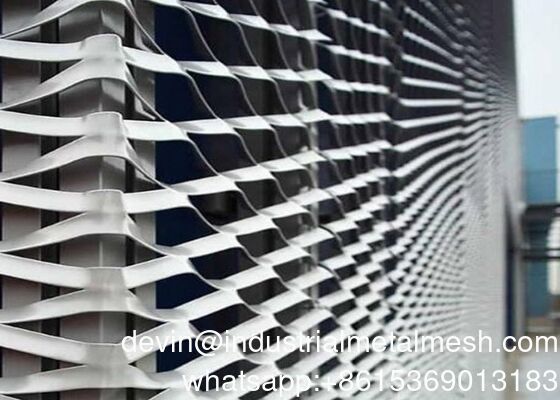

Application

Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface

Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface Heavy Duty Expanded Metal Grating Durable Ramps / Platforms Aluminum Flat Surface
