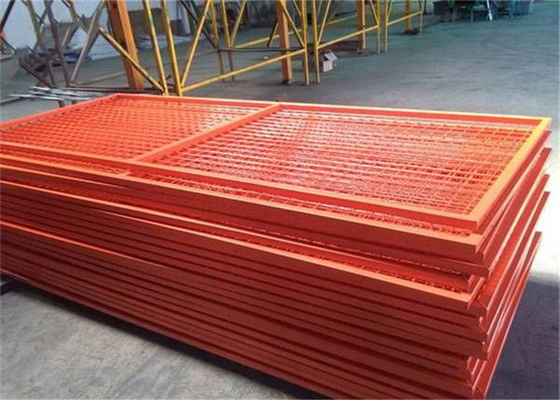

Red Temporary Mesh Fencing With Plastic Feet And Iron Feet For Construction Site

Red Temporary Mesh Fencing With Plastic Feet And Iron Feet For Construction Site
Red Temporary Mesh Fencing With Plastic Feet And Iron Feet For Construction Site Red Temporary Mesh Fencing With Plastic Feet And Iron Feet For Construction Site

Large Image :  Red Temporary Mesh Fencing With Plastic Feet And Iron Feet For Construction Site

Product Details:
Place of Origin: China
Brand Name: QiJie
Certification: Certification SGS20190055
Model Number: SGS20190055
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: Discuss
Packaging Details: 1. In bulk 2. On steel pallets and cartons 3. As your demands
Delivery Time: 15-30 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 sets every month
Detailed Product Description
Material: Low-Carbon Iron Wire, Low Carbon Steel Wire, Steel, Wire Diameter: 3mm, 4mm, 6mm, 2.5-6.0mm, 11.5ga
Mesh Size: 50*200mm, 60*150mm, 60*120, 50*10050*200mm, 60*150, 60*120, 50*100 Panel Size: 1.8*2.3m, 2.1*2.4m(popular), 2.1*2.4m;1.8*2.4m
Hole Shape: Square Temporary Fence Panel Wire Gauge: 2.5mm-4.0mm, 0.3-2.0mm
Color: Green,yellow,red,blue And So On Application: Fence Mesh, Residential, Construction, Private House, Commercial;
High Light:

temporary fence panels

,

crowd control fencing

Standard temporary fence with plastic feet and iron feet for construction site



Description:

6' × 8' CA temporary fencing owns 6' height and 8' width. Use high quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.

Besides,6' × 8' CA temporary fencing with wire diameter of 6.0 mm, frame outside diameter of 30 × 30 mm, superadd the middle horizontal pipe outside diameter of 25 × 25 mm, the finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.



Specifications:

Panel Specification
Dimensions
(H × W)
6' × 8' (equal to 1.8 × 2.4 m).
Wire diameter 4.0, 6.0 mm optional.
Mesh opening 50 ×100, 50 ×150, 75 ×150 mm optional.
Frame O.D. × TH 30 × 30 × 2, 40 × 40 × 2 mm optional.
Frame TH 2.0–2.5 mm.
Middle horizontal pipe O.D. 25 × 25 × 2 mm.
Surface treatment

Electric galvanized before powder coated.

Hot dipped galvanized after welding.

Color Dark green, yellow, red, blue, other RAL colors.
Fence feet Specification
Material Steel plate, steel solid rod, steel pipe.
Dimensions
(H × W × TH)
600 × 110 × 8, 900 × 80 × 7 mm optional.
Hole size O.D. 19 mm.
Interior round steel rod/pipe 30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe 30 × 30 × 150 mm.
Rod space 30 mm.
Surface treatment Electric galvanized before powder coated.
Top Clips Specification
Material Steel plate, steel solid rod, steel pipe.
Coupler top plate/pipe 110 × 40 × 8 mm.
Left round steel rod/pipe 30 mm O.D. × 150 mm H.
Right square steel rod/pipe 30 × 30 × 150 mm H.
Surface treatment Electric galvanized before powder coated.
Clamp Specification
Clamp center distance 80, 90, 100 mm optional.
Applied post O.D. 25, 28, 32, 38, 40, 42 mm optional.
Clamp TH 4 mm.
Bolt Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut 15.9 mm, 17 mm optional.
Surface Treatment Hot dipped galvanized.
Weight 0.42 kg/set.
Accessory List 2 pieces clamps with 1 bolt and 1 nut.






We also can supply professional drawing

Two different styles are available. We provide following two types of top clips for your standard and special demand. Warm Tip: the pipe leg can be replaced by a round rod by your request.

CAT-24: Top clip with round steel pipe


CAT-25: Top clip with round & square pipe


Production progress

Galvanized steel wire – Straighten & cut short – Welded – Parkerising – PVC coated/sprayed – Packing – Shipment

Low carbon steel wire – Straighten & cut short – Welded –Hot-dipped galvanized – Packing – Shipment

Packaging & Shipping

Canada welded temporary fencing panels are delivered in steel pallets, different loading quantity according to different goods and container sizes.



Packed in Steel Pallet
1 × 40' HC for 6' × 10' 294 sets (1 panel + 1 fence feet + 1 top clips/1 set of clamp with bolt and nut).
1 × 40' HC for 6' × 8' 408 sets (1 panel + 1 fence feet + 1 top clips/1 set of clamp with bolt and nut).
FAQ

1. Why customer choose you?

1) Safety packing

2) Short lead time

3) Reasonable price

4) High quality

5) Long-life using

2. What payment terms you usually do?

We usually accept T/T payment, and we also accept L/C payment.

3. What’s your MOQ and delivery time?

The MOQ of our products is 50 pcs, sample is available, the delivery time is

About 15 days after receiving your down payment.
