Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM

China Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM supplier
Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM supplier Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM supplier Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM supplier Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM supplier

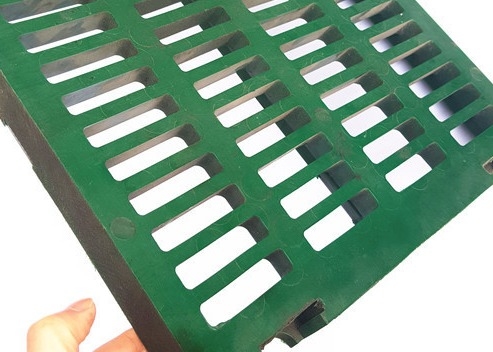

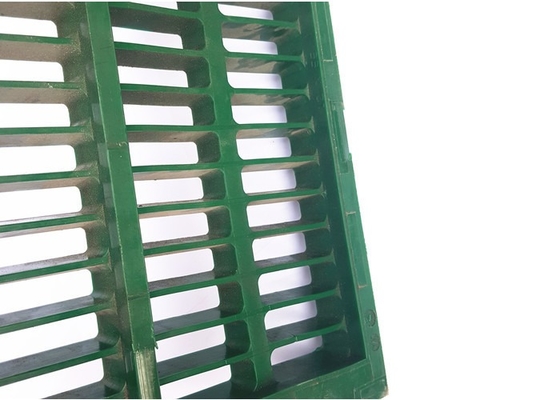

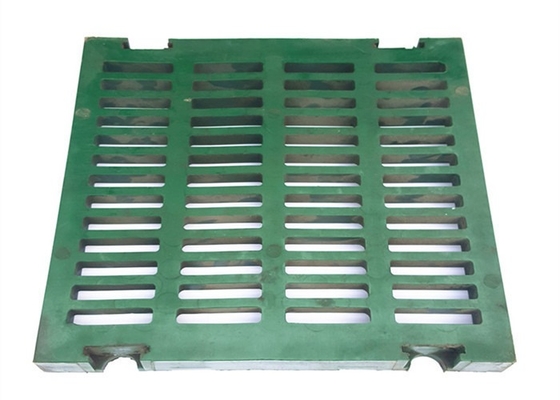

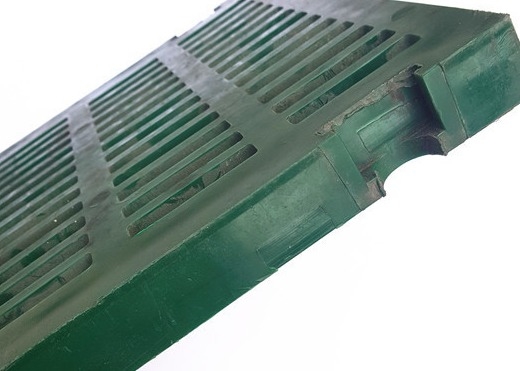

Large Image :  Self Cleaning Modular Mining Screen Mesh For Gabbor Aggregate 1000X300MM

Product Details:

Place of Origin: Hebei
Brand Name: Qijie
Certification: SGS
Model Number: QJ-PUSCREEN

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs permonth
Contact Now
Detailed Product Description
Material: Polyurethane, Polyurethane Name: Modular Polyurethane Screen Mesh
Application: Mining Feature: Wear Resistant
Color: Red,Yellow Hardness:: 45 ~ 85 Shore A

Self Cleaning Modular Polyurethane Screen Mesh For Gabbor Aggregate 1000X300MM​



Modular polyurethane screen mesh is manufactured from specially formulated polyurethane and high tensile embedded steel frame. Combined with wear resistance urethane and high tensile strength steel frame, modular polyurethane screen mesh possesses excellent performance in separating and screening industry.

Similar as polyurethane dewatering screen, modular polyurethane screen also has various connection types, including the bolts connection type, mosaic connection type, press bar connection type and hook connection type. Various connection types can fit different machines and different applications. It is the most versatile and cost effective modular system.

Specifications

  • Material: polyurethane material and embedded steel frame.
  • Thickness: 30mm - 60mm.
  • Aperture type: square, rectangular and round.
  • Aperture size: 5mm - 50mm.
  • Connection type: mosaic connection, bolts connection, press bar connection and hook connection.



Specification:
Panel Size:

610mm x 300mm (24" x 1113/16")

305mm x 305mm (12" x 12")
Aperture Size:

0.35mm x 80mm
(1/70" x 31/8")



Product name Polyurethane screen panels for mining with PU screen panel 1067*737*30mm
Wire mesh material SS304,SS316 or customized as customers demands
Size 1067*737mm
Weight 30 kgs
Screen layers 2 or 3 layers
Mesh count 20-325mesh
Advantage

1. Heat-resisting

2. Higher flow rate

3. Good performance

4. Conductivity (powder) liquid

5. Technical expertise



Used for:
Mining Industry
Steel Plants
Cement Plants
Mineral Beneficiation Plants
Coal Washeries
Power Plants



Applications:
Secondary Tertiary & Final Screenings



Features

  • Polyurethane materials for wear resistance.
  • Self-cleaning apertures reducing pegging and blinding.
  • Wide range apertures suit most applications.
  • Various panel sizes to suit all vibrating screens.
  • Different connection type for easy installation and replacement.
  • High screening performance.
  • Low noise.
  • Long service life and durable.



Polyurethane Dewatering Screen has following characteristics:

1, polyurethane dehydration sieve plate with high wear resistance, and good water resistance, corrosion resistance, long service life

2, polyurethane dehydration sieve plate sieve above the small, the following large, fine mesh, not easy to plug, high screening efficiency

3, the module sieve plate with assembled structure, single sieve plate area is small, light weight, easy installation, if the polyurethane sieve plate is damaged, only need to replace the damaged parts, do not need a large area of replacement, cost savings.

4, the installation of a variety of ways: Nail-type, bolt-type, rail-type, pressure bar, the customer can be customized according to the needs of vibration sieve installation of different sieve plate.



Advantages of polyurethane screen mesh




  • High wear resistance. The polyurethane surface supplies an outstanding wear and impact resistance performance. The polyurethane screen mesh can maintain a good condition during the frequent usage, in addition, it can also ensure the durability and long service life of screen mesh.
  • Smooth surface. The polyurethane screen mesh has a smooth surface compared to woven vibrating screens. The smooth surface can reduce pegging and blinding. Additional, the various aperture types can fit different materials, so it can improve the screening and separating efficiency.
  • Flexible. Flexible is the most outstanding feature of polyurethane screen mesh. It has various connection types, which can supply easy and fast installation and fixation. The interlocking system of polyurethane trommel screen is superior to the bolting connection type. Besides, the interlocking system make the replacement of worn screens be fast and need no efforts.
  • Various application. The polyurethane screen mesh has various aperture sizes and types, which can be used for different sizes of materials as well as wet or dry materials. In addition, the polyurethane screen mesh has various connection types which can be installed onto various vibrating screens, crushers and trommels.

Five different connection types of polyurethane screen mesh.



PU Screen
