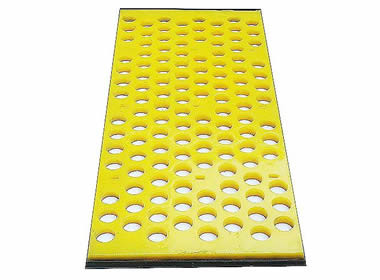

No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering

Certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
Customer Reviews
Yes we have received the reinforcing mesh and we are pretty happy with the quality. Many thanks! Chris

—— Chris Johnson

I have been ordering powder coated T 316 fly screen mesh from Qijie; unlike others, they never cut orders and always supply quality material to me.

—— Michael Jr. Venida

I had very bad purchasing experience with the previous supplier, for they always postpone shipment time. To my excitement, Qijie is always punctual.

—— Susan Miller

Your product good

—— Jatuporn Tae-Ngug

I'm Online Chat Now

No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering

No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering
No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering

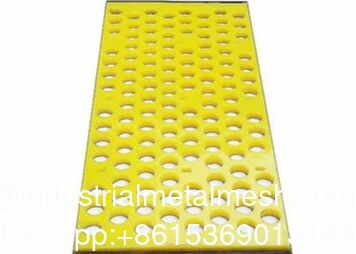

Large Image :  No Pegging Or Blinding Polyurethane Mining Screen Mesh Specially For Dewatering

Product Details:
Place of Origin: Hebei
Brand Name: Qijie
Certification: SGS
Model Number: QJ-PUSCREEN
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pcs permonth
Detailed Product Description
Material: Polyurethane, Polyurethane Name: Modular Polyurethane Screen Mesh
Application: Mining Feature: No Pegging Or Blinding
Color: Red,Yellow Hardness:: 45 ~ 85 Shore A
High Light:

vibrating sieve screen

,

vibrating screen wire mesh

No Pegging or Blinding Polyurethane Dewatering Screen - Specially for Dewatering

Similar as the modular polyurethane screen, tensioned polyurethane screen is made of polyurethane materials and embedded with steel frame. Tensioned polyurethane screen has a special designed fastening hooks which can clamp screens into the separator. The hooks can be transverse tensioning and longitudinal tensioning.
Tensioned polyurethane screen is lightweight and easy to install in screening situations where material specifications are frequently changed.
Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial. The various opening sizes ensure the high separating and screening efficiency and the smooth surface and polyurethane materials make the screen has much lower noise than the woven vibrating screen mesh or perforated vibrating screen mesh.
Specifications

  • Material: polyurethane material and embedded steel frame.
  • Thickness: 30mm - 60mm.
  • Aperture type: square, rectangular and round.
  • Aperture size: 5mm - 50mm.
  • Connection type: mosaic connection, bolts connection, press bar connection and hook connection.

 pu screen mesh
Specification:
Panel Size:

610mm x 300mm (24" x 1113/16")
305mm x 305mm (12" x 12")
Aperture Size:
0.35mm x 80mm
(1/70" x 31/8")


Product name Polyurethane screen panels for mining with PU screen panel 1067*737*30mm
Wire mesh material SS304,SS316 or customized as customers demands
Size 1067*737mm
Weight 30 kgs
Screen layers 2 or 3 layers
Mesh count 20-325mesh
Advantage

1. Heat-resisting
2. Higher flow rate
3. Good performance
4. Conductivity (powder) liquid
5. Technical expertise



Standard aperture sizes of the Modular Polyurethane Screen Mesh - No Pegging or Blinding
Size of aperture W
Overall height BH
Height of the screenin area SF
Effective open screening area %
3
30
7
20.3%
3.15
30
10
14.6
4
30
10
16.8
5
30
10
26.3
6.3
30
13
26.7
7
30
11
27.7
8
30
10
29
9
30
18
24
10
30
12
29
11
30
16
27
12
30
17
33
13
30
17
28
14
30
19
25
15
30
19
26
16
30
17
27
18
30
20
34
18
40
24
24
19
30
19
37
20
30
20
30
22
30
20
36
24
30
20
32
25
30
22
26
27
30
21
35
30
30
19
27
32
40
30
27
34
40
30
25
35
40
30
22
36
40
40
24
38
30
20
30
40
40
31
29
42
40
31
33
45
35
30
37
50
50
30
30
55
40
40
34
60
40
40
35
63
40
40
30
65
40
40
25
65
50
50
27
67
38
38
35
70
40
40
29
80
40
40
34


Used for:
Mining Industry
Steel Plants
Cement Plants
Mineral Beneficiation Plants
Coal Washeries
Power Plants

Applications:
Secondary Tertiary & Final Screenings

Features

  • Polyurethane materials for wear resistance.
  • Self-cleaning apertures reducing pegging and blinding.
  • Wide range apertures suit most applications.
  • Various panel sizes to suit all vibrating screens.
  • Different connection type for easy installation and replacement.
  • High screening performance.
  • Low noise.
  • Long service life and durable.


Polyurethane Dewatering Screen has following characteristics:
1, polyurethane dehydration sieve plate with high wear resistance, and good water resistance, corrosion resistance, long service life
2, polyurethane dehydration sieve plate sieve above the small, the following large, fine mesh, not easy to plug, high screening efficiency
3, the module sieve plate with assembled structure, single sieve plate area is small, light weight, easy installation, if the polyurethane sieve plate is damaged, only need to replace the damaged parts, do not need a large area of replacement, cost savings.
4, the installation of a variety of ways: Nail-type, bolt-type, rail-type, pressure bar, the customer can be customized according to the needs of vibration sieve installation of different sieve plate.


Advantages of polyurethane screen mesh




  • High wear resistance. The polyurethane surface supplies an outstanding wear and impact resistance performance. The polyurethane screen mesh can maintain a good condition during the frequent usage, in addition, it can also ensure the durability and long service life of screen mesh.
  • Smooth surface. The polyurethane screen mesh has a smooth surface compared to woven vibrating screens. The smooth surface can reduce pegging and blinding. Additional, the various aperture types can fit different materials, so it can improve the screening and separating efficiency.
  • Flexible. Flexible is the most outstanding feature of polyurethane screen mesh. It has various connection types, which can supply easy and fast installation and fixation. The interlocking system of polyurethane trommel screen is superior to the bolting connection type. Besides, the interlocking system make the replacement of worn screens be fast and need no efforts.
  • Various application. The polyurethane screen mesh has various aperture sizes and types, which can be used for different sizes of materials as well as wet or dry materials. In addition, the polyurethane screen mesh has various connection types which can be installed onto various vibrating screens, crushers and trommels.

Tensioned Polyurethane Screen
Tensioned Polyurethane Screen​

Tensioned polyurethane screens longitudinal tensioning.



polyurethane screen mesh



tensioned polyurethane screen mesh
