Product Details:
Payment & Shipping Terms:
|
| Material: | Q195 Iron Wire | Color: | Green |
|---|---|---|---|
| Type: | Fencing, Trellis & Gates | Frame Material: | Metal |
| Wire Diameter: | 3-6mm | Application: | Garden Fence/highway/airport |
| Package: | Pallet | Frame Finishing: | Powder/PVC Coated |
| High Light: | curved metal fence panels,curved wrought iron fence |
||

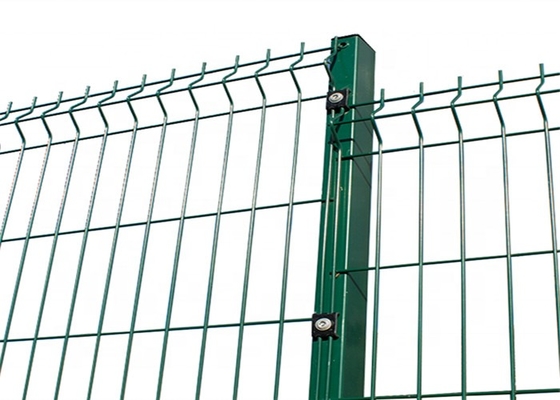

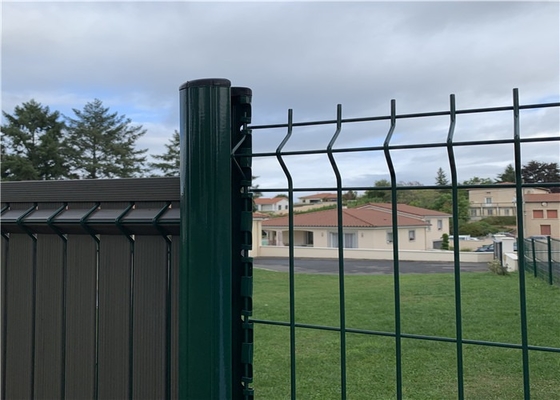

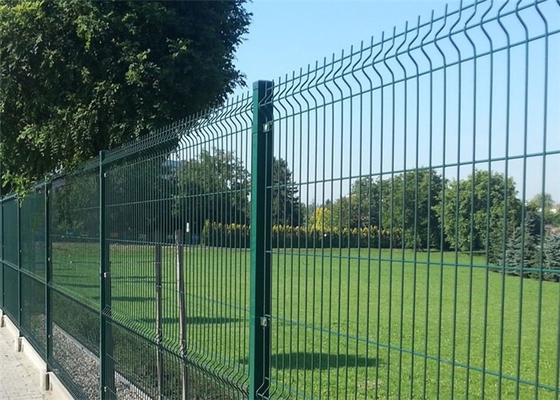

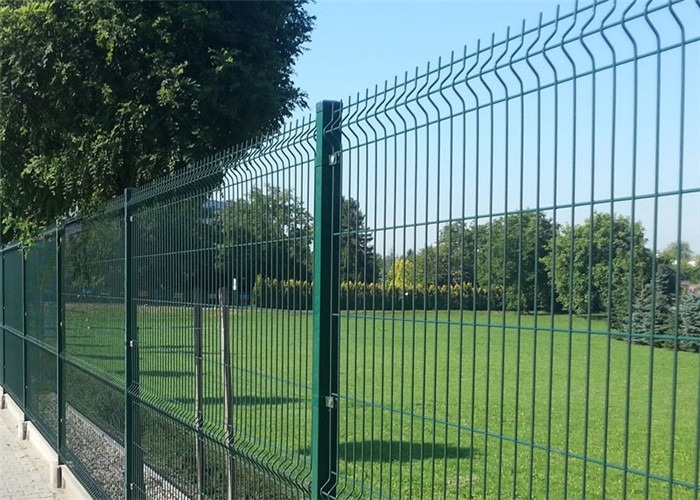

Green PVC Coated Welded Wire Mesh Fence/3D Curved Wire Mesh Fencing
The panels of 3D curved wire mesh fence are welded from high quality cold drawn steel wire and welded to the panel by hot dip galvanizing or cold wire drawing and then galvanized. For galvanized wire boards, it is necessary to check the zinc layer, etc., and only apply qualified items. It includes powder coating or PVC / PE dip coating. Then the product can be used for 15 years.
Panel with bends is not only refinedly and scientific, but also stable and durable. It can reduce the wire's diameter by suing the bends, and the fastness of the panel won't be debase, then the cost can be reduced. It also can match with many kinds of post, and it's well suitable for a wide range of application and easy for installation.
Specification Information:
| Materail | Low-carbon iron wire,iron wire,galvanized steel wire |
| Color | Silver,galvanized,dark green or as your requirement. |
| Opening | 50x200mm / 55x200mm / 50x150mm / 55x100mm or as your requirement |
| Wire Diameter | 3-6mm or as your requirement |
| Surface treatment | Hot dipped galvanized;Hot dipped galvanized then PVC coated;hot dipped galvanized then powder coated;electro galvanized;electro galvanized then PVC coated;electro galvanized then powder coated |
| Usage | Industry,agriculture,farming,construction,transportation,mining |
| Packing | Waterproof paper & Shrink film:pallet or as your requirement |

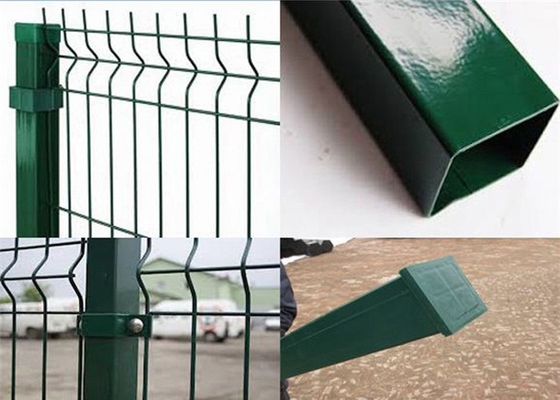

Post Specification:
|
Fence post |
Peach post |
Profile:50×70mm,60×90mm,70×100mm Wall Thickness:1.2mm,1.5mm |
| Square tube |
Profile:50×50mm,60×60mm Wall Thickness 1.5mm-4.0mm |
|
| Rectangle tube |
Profile:60×40mm,80×40mm Wall Thickness:1.5mm-4.0mm |
|
| Round pipe |
Profile:φ48,φ60,φ75 Wall Thickness:1.5-3.2mm |
|
| Post height | According to fence panel height(Normal 0.65-4m) | |
| Finish | Galvanized and Electrostatic polyester powder coated | |
| Accessories | post cap, clamps, bolts and nuts,etc | |
| Fence color | Dark green(RAL6005),other RAL colors,also available as requests,uv available. | |
Our Services
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
