| Metal Type: | Iron | Frame Finishing: | Hot-dipped Galvanized, PVC Coated |
|---|---|---|---|
| Wire Diameter: | 3mm, 4mm, 5mm, 6mm, Or As Customers Demand | Application: | Security |
| Feature: | Eco-friendly | Common Color: | Green |
| High Light: | curved wrought iron fence panels,curved metal fence panels |
||
BRC Bending Top Fence Heavy Gauge Rigid BRC Curved Metal Fencing For Security

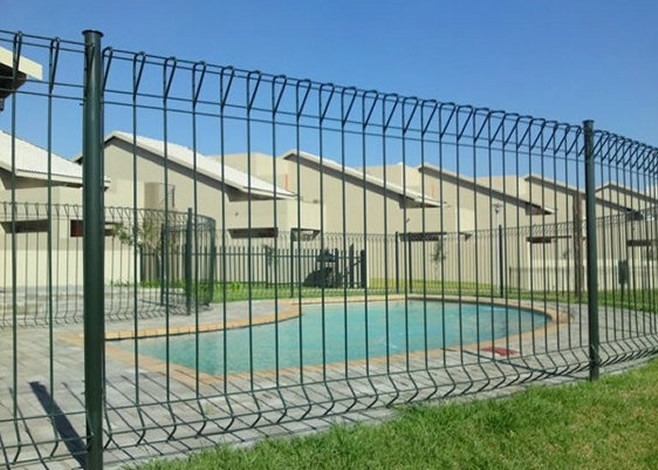

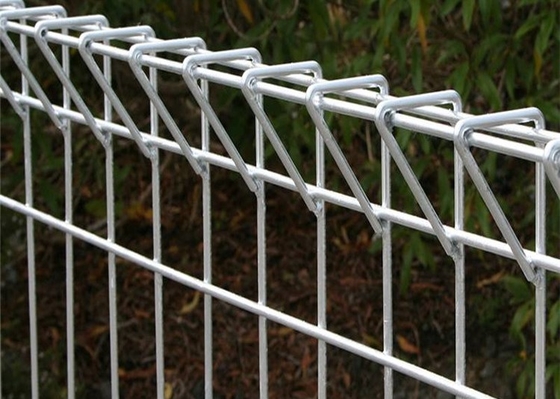

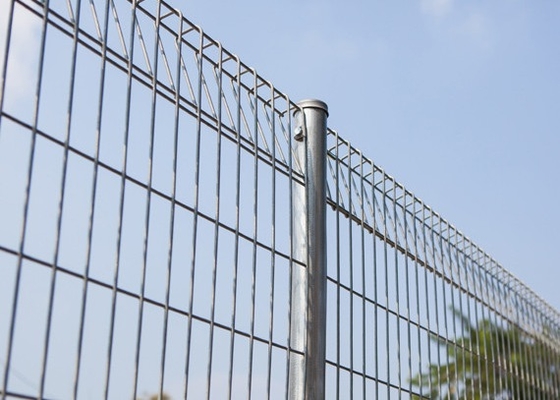

Roll Top Fence is a welded mesh panel fence that has a rolled top and bottom edge for enhanced safety and rigidity.
The panels have a unique and “user friendly” closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.
Features:
Aesthetic appearance
High rigidity
Excellent through vision
Wide range of color options
Available as a complete system
BRC Metal Wire Mesh Fence Specification:
| Height (mm) | Length(mm) | Wire Diameter(mm) | Spacing | |
| Vertical (mm) | Horizontal(mm) | |||
| 900 | 2200 | 5 & 6 | 50 | 150 |
| 2400 | 5 & 6 | 50 | 150 | |
| 1200 | 2200 | 5 & 6 | 50 | 150 |
| 2400 | 5 & 6 | 50 | 150 | |
| 1500 | 2200 | 5 & 6 | 50 | 150 |
| 2400 | 5 & 6 | 50 | 150 | |
| 1800 | 2200 | 5 & 6 | 50 | 150 |
| 2400 | 5 & 6 | 50 | 150 | |
| 2100 | 2200 | 5 & 6 | 50 | 150 |
| 2400 | 5 & 6 | 50 | 150 | |
Specifications (FB Series)
| Height (mm) | Length(mm) | Wire Diameter(mm) | Spacing | |
| Vertical (mm) | Horizontal(mm) | |||
| 900 | 2500 | 5 & 6 | 75 | Varies |
| 2400 | 5 & 6 | 75 | Varies | |
| 1200 | 2500 | 5 & 6 | 75 | Varies |
| 2400 | 5 & 6 | 75 | Varies | |
| 1500 | 2500 | 5 & 6 | 75 | Varies |
| 2400 | 5 & 6 | 75 | Varies | |
| 1800 | 2500 | 5 & 6 | 75 | Varies |
| 2400 | 5 & 6 | 75 | Varies | |
| 2100 | 2500 | 5 & 6 | 75 | Varies |
| 2400 | 5 & 6 | 75 | Varies | |
BRC Metal Fence Package:
Fence panel: plastic film + metal/wooden pallet
Fence post: plastic film +metal/wooden pallet
Fence accessories: plastic bag+carton boxs
Application :
Transport Infrastructural
Corporate / Residential Sector
Leisure Amusement Sector
Others Uses
