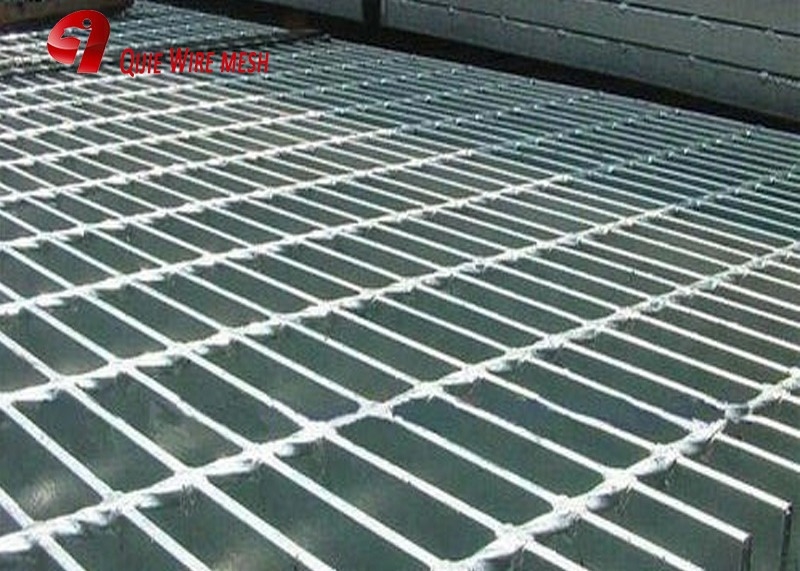

Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting

China Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting supplier
Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting supplier Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting supplier

Large Image :  Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting

Product Details:

Place of Origin: China
Brand Name: QIJIE
Certification: Certification ISO20200408
Model Number: SGS202004080086

Payment & Shipping Terms:

Minimum Order Quantity: 2 PCS
Price: Discuss
Packaging Details: Sea-worthy packing, ie stow wood with steel strip, or wooden tray with steel strip,etc
Delivery Time: 15-20 days
Supply Ability: 20000 PCS
Contact Now
Detailed Product Description
Material:: Galvanized Steel Wire Application:: Protecting Mesh
Weave Style:: Plain Weave Technique:: Welded Mesh
Model Number:: Galvanizing Steel Grating Brand Name:: QIJIE
Steel Grating Size:: 3'x20', 3'x24', 3'x30' Steel Grating Application:: Flooring Steel Grating, Drain Cover



High quality hot dipped galvanized steel grating mesh can customized

Product  details

Material:Low cardon steel,mild steel,stainless steel

Surface treatment:Hot dipped galvanized,painting

Size:3'*20',3'*24',3'*30',1000mm*1000mm,1000mm*5800mm,1000mm*6000mm.

Application:Industrial platform,flooring and walkway,traffic,steel structure.

Packing details:pallets in containers by steek straps other worthy export packing,or according to your packing requirements.

Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,steel grating generally use carbon steel production,appearance of hot dip galvanized,can serve to prevent the role of oxidation,can also be made of stainless steel .Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting

Standard for Steel Grate

A) China: YT/T4001.1-2007

B) U.S.A.: ANSI/NAAMM (MBG531-93)

C) U.K.: BS4592-1:1995

D) Australia: AS1657-1992

E) Japan: JJS

General information of steel grating

Bearing bar - A flat bar withstanding the main load is in consistent with the span direction .

bearing bar pitch - the distance center to center of the two bearing bars.

Cross bar - the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars .

Cross bar pitch - the distance center to center of the two adjacent cross bars.

Length (span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the baering bars .

Width - the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.

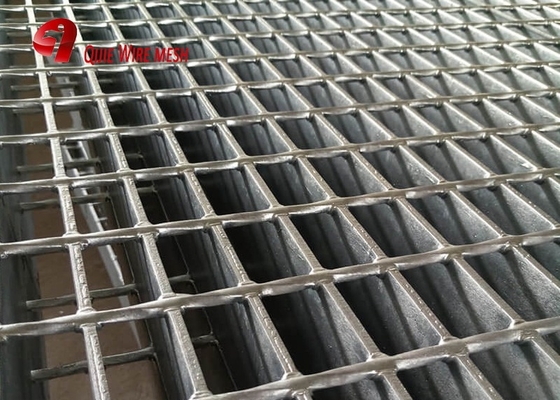

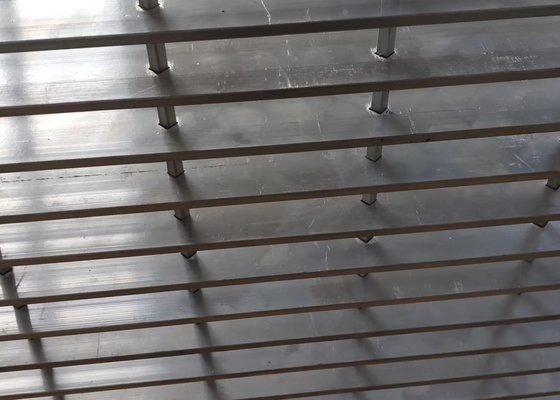

Type of Steel Grating

Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting



Welded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting



Common spesification :



Bearing bar pitch Cross-bar Pitch Specification of bearing bar (width×thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G203/60/50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross-bar Pitch Specification of bearing bar (width×thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50




Steel grating Surface Treatment

1.Hot dipped galvanized :According to GB/T13912-92 standard :the average zinc thickness is more than 610g/m²(flat bar ≥5mm) and 460g/m²(flat bar <5mm)

2.Painting :According to the clients' requirement, choose japanning dipped coating

3.No surface treatment

Steel grating application

Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc

Packing&shipping

Packed in bundle then fixed by steel belt onto metal pallets as the general export package and customers' requirement is accepted .

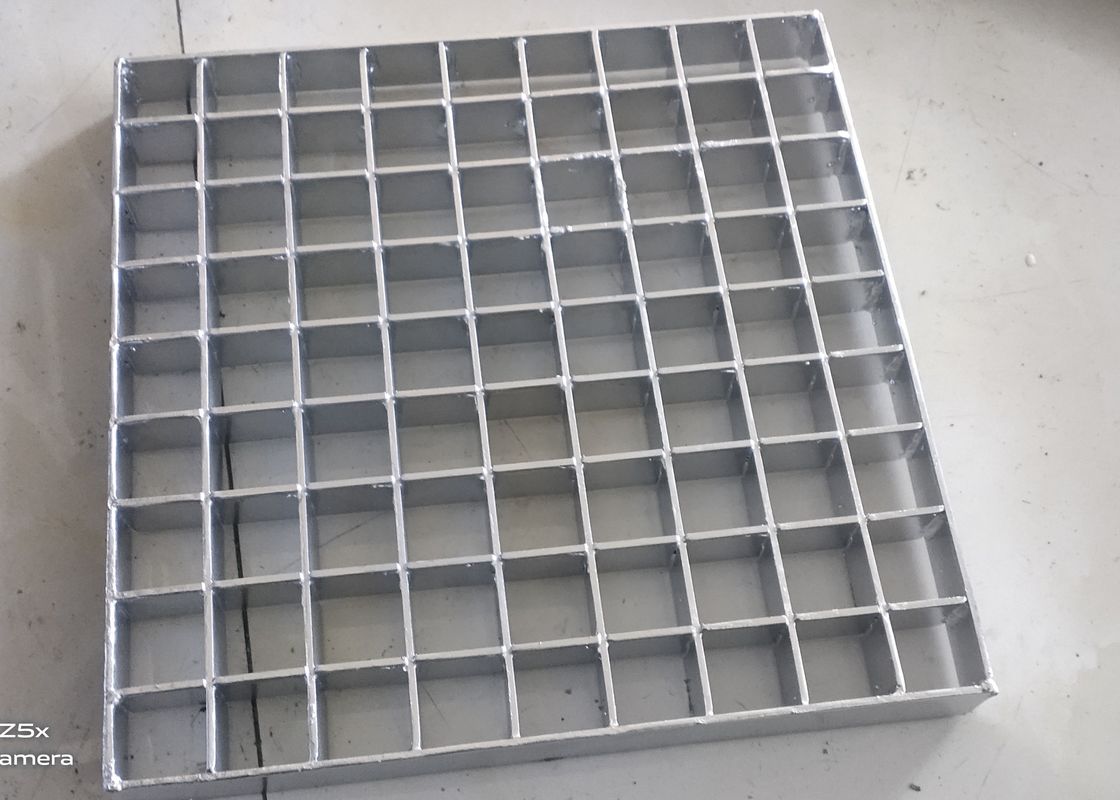

Welded Hot Dipped Galvanized Steel Grating Mesh Customized For ProtectingWelded Hot Dipped Galvanized Steel Grating Mesh Customized For ProtectingWelded Hot Dipped Galvanized Steel Grating Mesh Customized For ProtectingWelded Hot Dipped Galvanized Steel Grating Mesh Customized For Protecting

Export Market Distribution:

Market Revenue(Previous Year) Total Revenue (%)
North America USD 1,638,000 18.0
South America USD 910,000 10.0
Eastern Europe USD 182,000 2.0
Southeast Asia USD 1,365,000 15.0
Africa USD 910,000 10.0
Oceania USD 910,000 10.0
Mid East USD 1,365,000 15.0
Eastern Asia USD 182,000 2.0
Western Europe USD 182,000 2.0
Central America USD 182,000 2.0
Southern Europe USD 273,000 3.0
South Asia USD 910,000 10.0
Domestic Market USD 91,000 1.0
