Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei, China | Brand Name:: | QIJIE |
|---|---|---|---|
| Model Number:: | QJ-0090 | Material:: | Low-Carbon Iron Wire, Low-Carbon Iron Wire |
| Type:: | Hexagonal Mesh | Application:: | Cages, Building Oil Chemical Industry Breed Plant Protection |
| Hole Shape:: | Hexagonal | Wire Gauge:: | 0.6mm To 4.4mm |
| High Light: | stainless woven mesh,stainless woven wire mesh |
||
20 Ga Chicken Stainless Steel Woven Wire Mesh Poultry Mesh Hexagon Hole 3/4"
Product Description
Stainless steel chicken wire also called stainless steel poultry netting, made of high quality stainless steel wire 304 and then woven into continuously regular hexagonal mesh. Compared with galvanized chicken wire, the stainless steel chicken wire has better corrosion and rust resistance. It is the most durable type in all of the poultry netting types.
|
Specification List of Hexagonal Wire Mesh
|
|||
|
Specification in Metric Unit
|
Specification in Inch
|
Wire Diameter in BWG
|
Technical Note
|
|
1.5cm
|
1/2"
|
22
|
Max. roll width:
2m,single or double edge |
|
24
|
|||
|
2cm
|
3/4"
|
20
|
Max. roll width: 2m,single, double edge,or reinforced
|
|
22
|
|||
|
24
|
|||
|
1.8cm
|
5/8"
|
21
|
Max. roll width: 4', single or double edge
|
|
23
|
|||
|
25
|
|||
|
2.5cm
|
1"
|
19
|
Max. roll width: 2m, straight or reverse twist
|
|
21
|
|||
|
23
|
|||
|
3cm
|
1.25"
|
19
|
Max. roll width: 2m, straight or reverse twist
|
|
21
|
|||
|
4cm
|
1.5"
|
18
|
Max. roll width: 2m
|
|
20
|
|||
|
22
|
|||
|
5cm
|
2"
|
18
|
Max. roll width: 2m
|
|
20
|
|||
|
22
|
|||
Standard Specification

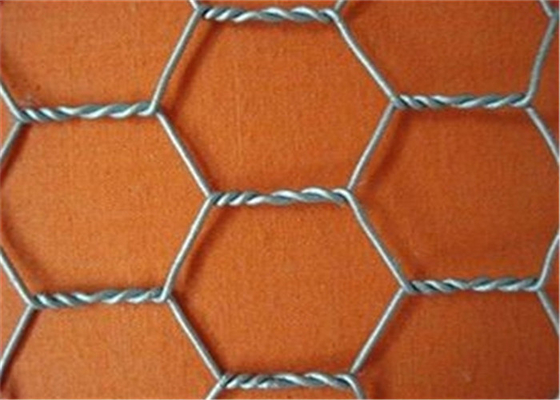

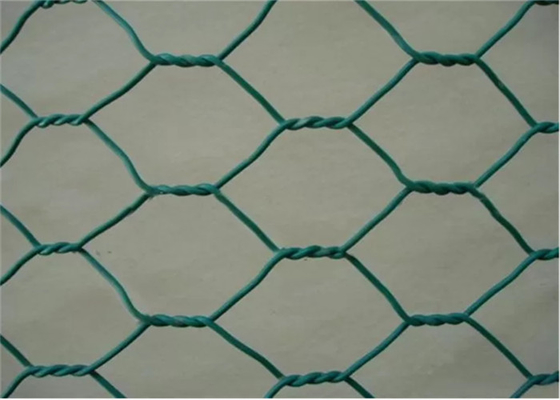

Hexagonal wire is made of metal wire braided mesh (hexagonal) made of wire mesh, the use of metal wire diameter is based on the size of the hexagonal and different. Also known as twist network, insulation net, soft side net.
Material: low carbon steel wire, stainless steel wire, PVC wire, copper wire
Weaving: twisting, twisting, two-way twist, the first series after plating, the first plating after the series, and sub-hot galvanized, zinc-aluminum alloy, electro-galvanized, PVC plastic and so on.
Features: rugged, flat surface, with good anti-corrosion, anti-oxidation and so on
Uses: for raising chickens, ducks, geese, rabbits and zoo fence, machinery and equipment protection, highway guardrail, sports venues fence, road green belt protection network. The screen can be used to protect and support seawalls, slopes, roads and bridges, reservoirs and other civil engineering, and is a good material for flood control and flood protection.
| Wire Diameter | Mesh | Weight | ||
| SWG | MM | INCH | MM | KGS/M2 |
| 22 | 0.71 | 1/2 | 12.7 | 0.52 |
| 23 | 0.61 | 3/4 | 19.05 | 0.29 |
| 24 | 0.56 | 3/4 | 19.05 | 0.23 |
| 25 | 0.50 | 3/4 | 19.05 | 0.19 |
| 18 | 1.2 | 1 | 25.4 | 0.86 |
| 19 | 1.0 | 1 | 25.4 | 0.65 |
| 20 | 0.9 | 1 | 25.4 | 0.50 |
| 21 | 0.81 | 1-1/4 | 31.75 | 0.34 |
| 22 | 0.71 | 1-1/4 | 31.75 | 0.25 |
| 17 | 1.4 | 1-1/2 | 38 | 0.79 |
| 18 | 1.2 | 1-1/2 | 38 | 0.62 |
| 19 | 1.0 | 1-1/2 | 38 | 0.43 |
| 19 | 1.0 | 2 | 50 | 0.32 |
| 20 | 0.9 | 2 | 50 | 0.25 |
| 21 | 0.8 | 2 | 50 | 0.20 |
| 22 | 0.71 | 2 | 50 | 0.15 |
Typical Use of Chicken wire
1. breeders of birds and animals.
2. In some constructions can be used as support frieze.
3. Cages for fishing lobsters and crabs.
4. In the industrial sector as a coating.
5. To fabricate insulating material.
Features of Stainless Steel Chicken Wire
Application
Package&Loading
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
