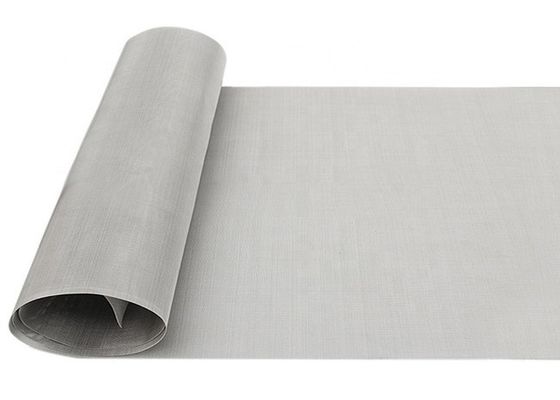

Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters

China Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters supplier
Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters supplier Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters supplier Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters supplier Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters supplier

Large Image :  Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters

Product Details:

Place of Origin: China
Brand Name: QIJIE
Certification: ISO9001
Model Number: QJ-001

Payment & Shipping Terms:

Minimum Order Quantity: 50 rolls
Price: discuss
Packaging Details: as requirement
Delivery Time: 15-20 days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 1000 rolls per week
Contact Now
Detailed Product Description
Product Name: Stainless Steel Woven Wire Mesh Technique: Woven
Application: Woven Wire Mesh,Filters Type: Weave Wire Mesh
Weave Style: Plain/twill/dutch Weave Material: Stainless Steel Wire
Color: Silver Length: 30m Per Roll Or As Required
Usage: Liquid Filter,chmical Industry Mesh Count: 1x1-635x635mesh/inch



304, 316 Stainless Steel Woven Wire Mesh Square Wire Mesh Used For Filters



Material: Stainless steel wire in AISI, SUS302,304,316,304L or 316L

Weaving and Features: Plain weave, twilled weave, Dutch weave, etc. It offers good property against acid, alkali and heat, it is also wear resistant.
Uses: Stainless steel wire mesh is used for mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries.
We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.



Stainless Steel Wire Mesh Specification

Stainless Steel Plain / twill weave wire mesh
Mesh/inch Wire diameter Aperture Open area(%) Weight(KG/mm)
  Inch mm Inch mm
4 0.047 1.2 0.203 5.16 81.2 2.7
5 0.041 1.04 0.159 4.01 79.5 2.6
10 0.024 0.6 0.076 19.4 74.9 1.8
12 0.02 0.5 0.064 1.62 75.9 1.5
14 0.02 0.5 0.052 1.314 71.9 1.75
16 0.018 0.45 0.045 1.137 71.2 1.6
18 0.016 0.4 0.04 1.01 69.4 1.4
20 0.009 0.24 0.04 1.03 76 0.57
30 0.012 0.3 0.0215 0.547 63.9 1.35
40 0.0098 0.25 0.015 0.385 36.74 1.25
50 0.0079 0.2 0.0121 0.308 36.7 1
60 0.0059 0.15 0.0107 0.273 64.5 0.65
80 0.0047 0.12 0.0078 0.198 38.7 0.58
100 0.0039 0.1 0.006 0.154 59.8 0.5
120 0.0027 0.07 0.0056 0.142 67.7 0.29



Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters

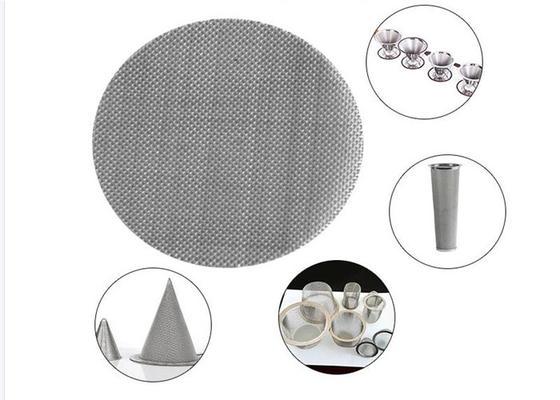

Applications:

Stainless steel woven wire mesh is widely used for filtering, protection, printing, and decorating.

  • Stainless steel woven wire mesh can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.
  • The stainless steel woven wire mesh can be used in the architectural buildings as the decorative woven wire mesh.
  • Stainless steel woven wire mesh screen can be used for window screen and door screen to prevent insects from entering the houses.
  • The stainless steel woven wire cloth is widely used in printing of electronics, textiles, ceramics, glass and other industries.

Silver 304 316 Square Wire Mesh , Stainless Woven Mesh Use For Filters
