| Material: | Galvanized Steel Wire | Technique: | Woven,Weave |
|---|---|---|---|
| Type: | Weave Wire Mesh | Hole Shape: | Hexagonal Shape |
| Feature: | Easily Assembled | Surface Treatment: | PVC Coated,Hot Dipped Galvanized |
| High Light: | metal mesh panels,metal mesh screen |
||

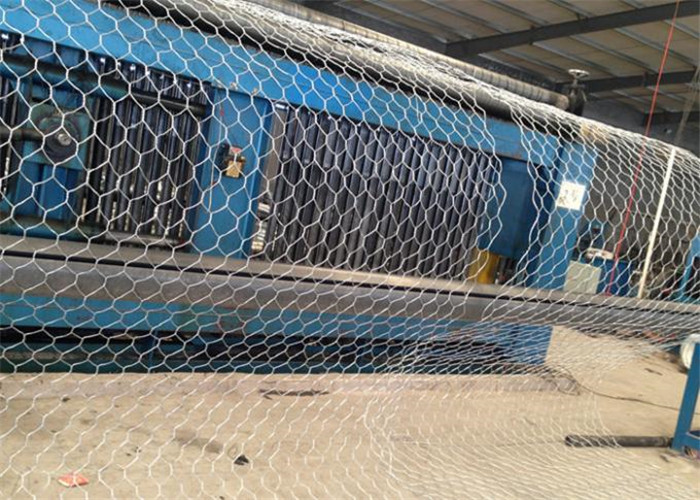

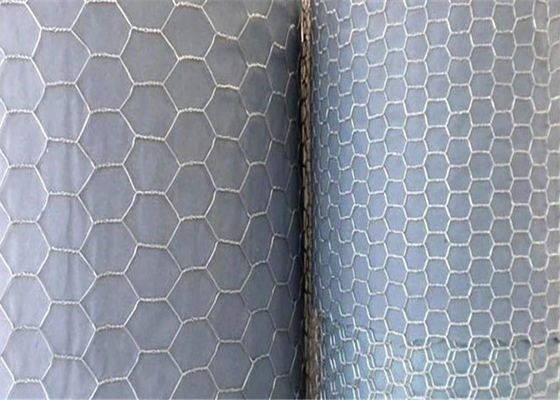

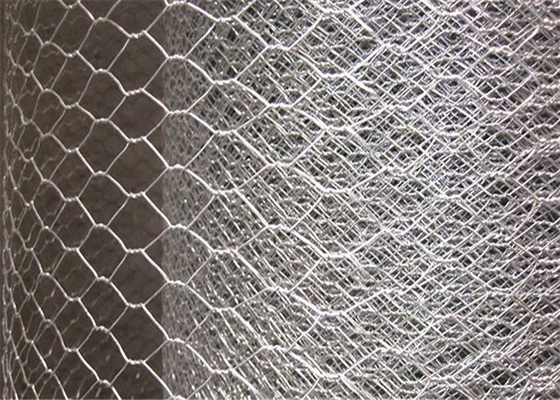

Galvanized Hexagonal Wire Mesh Metal Fabric Wire Mesh Chicken Wire Mesh
Hexagonal Wire Mesh Chicken Mesh
Material : low carbon steel wire , galvanized steel wire, galvanized redrawing wire
Woven type : Continuous Twist and Reverse Twist
Wire diameter: bwg27 (0.4mm) – bwg14 (2.1 mm)
Roll size : 0.5-2m width x 10m/20m/30m/50m/100m/800m length
Surface treatment: galvanized( hot dipped galvanized or electro galvanized),pvc coated .
Hole size: 60*80mm, 80*100mm, 100*120mm, 120*150mm and so on
Surface Treatment: Galvanized / PVC coating
Function: used as animal cages
Materials: Low carbon steel wire
Net weight: accrding to your wire detail
Package: Customers' requirement
Packing: waterproof paper / craft paper
Deliver Time : 15 – 20 days upon the quantity
Port:Tianjin port
Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
Weaving: positive twist, reverse twist, two-way twist, after the first braiding plating, plating after the first braiding, hot dip galvanized, zinc aluminum alloy, galvanized, PVC plastic package, etc.
3.Features: strong structure, smooth surface, good corrosion resistance, oxidation resistance and other characteristics
4.Usage: used for raising chickens, ducks, geese, rabbits and zoo fences, protection of mechanical equipment, highway guardrails, sports venues fence, road greenbelt fence.The screen in the production of box-like containers, such as stones filled with nets, can be used to protect and support seawalls, mountain slopes, roads and Bridges, reservoirs and other civil engineering, flood control and flood material.
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |

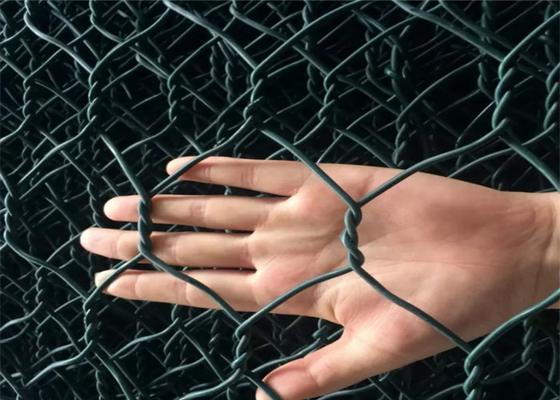

| Hex. wire netting PVC-coated (width of 0.5M-2.0M) | ||
| Mesh | Wire Dia(mm) | |
| Inch | mm | |
| 1/2" | 13mm | 0.9mm,0.1mm |
| 1" | 25mm | 1.0mm,1.2mm,1.4mm |
| 1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
| 2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |
