Product Details:
Payment & Shipping Terms:
|
| Type:: | Welded Mesh | Material:: | Low-Carbon Iron Wire, Low-Carbon Iron Wire |
|---|---|---|---|
| Application:: | Construction Wire Mesh | Hole Shape:: | Square |
| Wire Gauge:: | 0.5mm-14mm | Surface Treatment:: | PVC Coated |
| Color:: | Green | Usage:: | Protection |
| High Light: | 0.5mm welded mesh fencing,14mm welded mesh fencing,50mm x 75mm welded mesh fencing |
||
PVC Welded Wire Mesh Fence/ Plastic Coated Holland Fence Euro fence
PVC Coated Welded Mesh
Green Color PVC Coated Euro Holland Welded Wire Mesh fence for Farm
1.Welded wire mesh material
Low-carbon steel wire,stainless steel wire.
2.Welded wire mesh surface treatment
Galvanized.
3.Welded wire mesh type

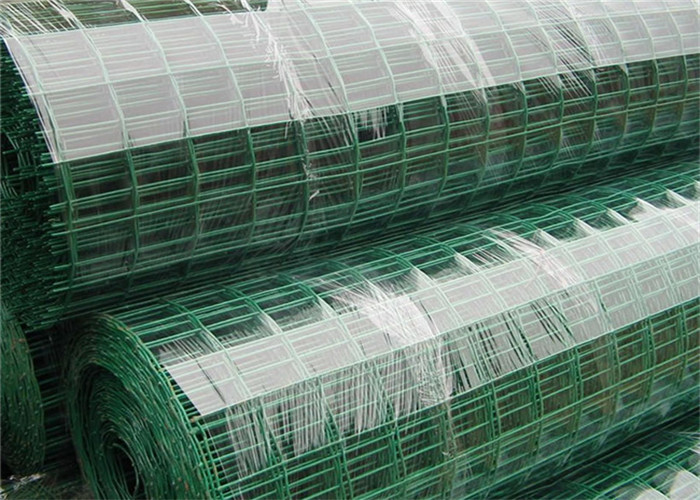

Welded wire mesh panel and roll.
4.Welded wire mesh Specification
Welded wire mesh panel
|
Wire diameter (mm) |
Vertical spacing (mm) |
Horizontal spacing(mm) |
Length (m) |
Width (m) |
| 10 | 100-500 | 30-300 | 1-8 | 0.5-3 |
| 9 | 100-500 | 30-300 | 1-8 | 0.5-3 |
| 8 | 100-500 | 30-300 | 1-8 | 0.5-3 |
| 7 | 50-200 | 20-300 | 1-8 | 0.5-3 |
| 6 | 50-200 | 20-200 | 1-8 | 0.5-3 |
| 5 | 50-200 | 10-200 | 1-8 | 0.5-3 |
| 4 | 30-200 | 10-200 | 1-8 | 0.5-3 |
| 2-4 | 25-100 | 10-100 | 1-6 | 0.5-3 |
| 1 | 33 | 15-80 | 2.2 | 28 |

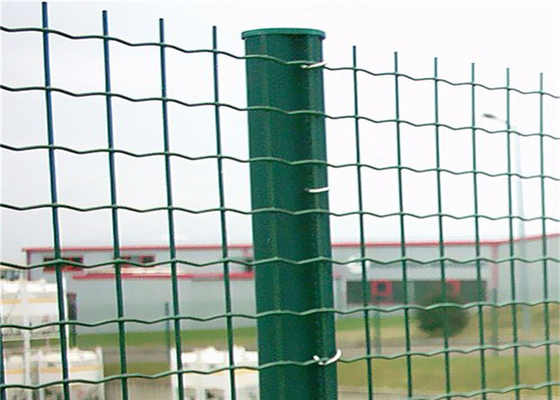

Euro wire fence holland garden fence roll
Euro fence is also called Holland wire mesh fence. the horizontal wire is wavy so that the resistance more stronger. Installation for Dutch post with special circle clamps, or for round post. Using high quality iron rod as raw material, the welded panel or rolled fence, after Galvanization, PVC Powders dipped coating; it can resist the corrosive and ultraviolet radiation very strongly.Selection of high-quality wire welded together, the PVC or PE, PP powder after curing the surface of the coating, with strong adhesion, corrosion resistance, bright color and so on.Manufacturing process: steel wire after the plastic coating, but also a separate plating, hot-dip and plastic coating. The warp bended beforehand is welded with the weft and the surface treated by galvanized, hot galvanizing, PVC coating, PVC plating and passivating. The product has such characteristics as beautiful appearance, smooth mesh, firm welding, good beforehand bending property, steadiness, good anticorrosion and resistance to aging.
welded wire mesh specifications
galvanized welded wire mesh/welded wire mesh panel
| opening | opening | wire diameter (BWG) |
| in inch | in metric unit | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
PVC coated welded wire mesh/welded mesh panels
| opening | opening | wire diameter (BWG) |
| in inch | in metric unit (mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
welded wire mesh /panels sizes:
| opening | opening | wire diameter (BWG) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21 |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
1. Layer chicken Cage
2. 3-6 tiers on each side( total 2 sides) of the frame
3. 8-10 nests on each tiers
4. 4-5 chicken per nest
5. Each cage accessories: drinking water, feeding trough, cage frame, PVC pipe, clip, each row cage has 3-6 water tank.
Application:
They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg, basket, foodstuffs basket, etc.
Surface treatment :
Hot dipped galvanized after welding
Hot dipped galvanized before welding
Electric galvanized before welding
Electric galvanized after welding
PVC Coated after welding
Advantages
1.Simple structure, beautiful and practical.
2.High-quality low-carbon steel wire row welding made.
3.Easy to transport.
4.Price concessions, suitable for large-scale use.
5.Corrosion resistance is stronger
Widely used in industrial, agricultural, construction, transportation and mining industries, such as building insulation wall, protective cover, fence, cage, storage box, decoration, etc.
