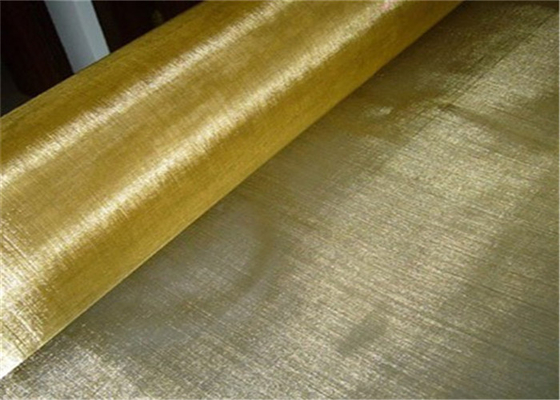

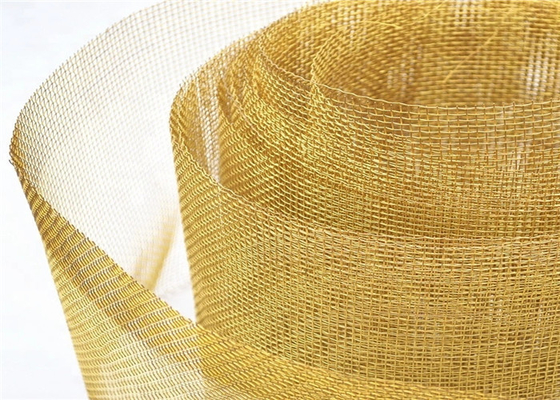

#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets

#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets
#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets #20 Copper Fuel Filter 0.04mm Brass Mesh Sheets

Large Image :  #20 Copper Fuel Filter 0.04mm Brass Mesh Sheets

Product Details:
Place of Origin: China
Brand Name: QiJie
Certification: Certification ISO20201113226
Model Number: SGS20201113226
Payment & Shipping Terms:
Minimum Order Quantity: 1 ROLL
Price: Discuss
Packaging Details: Pallet or according to customers special requirements
Delivery Time: 15-25 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 20000 ROLLS
Detailed Product Description
Material:: Brass Wire Mesh:: 1-250 Mesh
Weaving:: Plain Weaving Usage:: Printing Use, Shielding Use, Fltering Use Etc.
Mesh Count:: 1-250mesh Wire Diameter:: 0.04mm
Weave Type:: Plain Twill Weave Advantages:: Attractive Appearance
High Light:

0.04mm brass mesh sheets

,

brass 250 mesh sheets

Brass Mesh 1-250 Mesh Brass Mesh #20 Copper Brass Fuel Filter Mesh

Product   Description

brass wire mesh, brass wire cloth, brass/copper wire mesh,

brass wire mesh screen, brass woven wire mesh, brass knitted wire cloth,

has a yellow bright color. Brass is the alloy of copper and zinc. It contains 65% copper and 35% zinc. Brass wire is woven into fine woven meshes or coarse woven meshes. Compared with the red color of copper woven wire mesh, the brass woven wire mesh has yellow colors.

The brass wire mesh is also called paper making cloth, which is used in the paper making industry. Paper making cloth uses the phosphor bronze wires in the warp and brass wires in the weft. Brass woven wire cloth has outstanding acid and alkali resistance, so it is widely used for filtering applications.



material

brass wire, (65% brass,35%zn)

mesh

1-160mesh

weaving

plain weave,twill weave

specification

width of roll:1.0m,36inches, 48inches,

length of oll:30.0m,100inces

also we can customize

usage

usually can be use in the printing industry, filtering industry, can be used for shielding,

also can be used to make brass smoking pipe screen,etc.

Here are the specification we can supply

Phosphor copper mesh or cloth specification
Product code
Mesh/inch
Wire diameter
Opening (mm)
SWG
mm
Inch —
PCMCS-622
6
22
0.711
0.028
3.522
PCMCS-823
8
23
0.610
0.024
2.565
PCMCS-1025
10
25
0.508
0.020
2.032
PCMCS-1226
12
26
0.457
0.018
1.660
PCMCS-1427
14
27
0.417
0.016
1.397
PCMCS-1629
16
29
0.345
0.014
1.243
PCMCS-1830
18
30
0.315
0.012
1.096
PCMCS-2030
20
30
0.315
0.012
0.955
PCMCS-2230
22
30
0.315
0.012
0.840
PCMCS-2430
24
30
0.315
0.012
0.743
PCMCS-2631
26
31
0.295
0.012
0.682
PCMCS-2831
28
31
0.295
0.012
0.612
PCMCS-2831
28
31
0.295
0.012
0.612
PCMCS-3032
30
32
0.247
0.011
0.573
PCMCS-3233
32
33
0.254
0.010
0.540
PCMCS-3434
34
34
0.234
0.009
0.513
PCMCS-3634
36
34
0.234
0.009
0.472
PCMCS-3835
38
35
0.213
0.008
0.455
PCMCS-4036
40
36
0.193
0.008
0.442
PCMCS-4236
42
36
0.193
0.008
0.412
PCMCS-4437
44
37
0.173
0.007
0.404
PCMCS-4637
46
37
0.173
0.007
0.379
PCMCS-4837
48
37
0.173
0.007
0.356
PCMCS-5037
50
37
0.173
0.007
0.335
PCMCS-6036
60 x 50
36
0.193
0.008
-
PCMCS-6037a
60 x 50
37
0.173
0.007
-
PCMCS-6037b
60
37
0.173
0.007
0.250
PCMCS-7039
70
39
0.132
0.005
0.231
PCMCS-8040
80
40
0.122
0.005
0.196
PCMCS-8042
80
42
0.102
0.004
0.271
PCMCS-9041
90
41
0.112
0.004
0.170
PCMCS-10042
100
42
0.102
0.004
0.152
PCMCS-10043
100
43
0.091
0.004
0.168
PCMCS-12043
120 x 108
43
0.091
0.004
-
PCMCS-12044
120
44
0.081
0.003
0.131
PCMCS-12045
120
45
0.071
0.003
0.140
PCMCS-14046
140
46
0.061
0.002
0.120
PCMCS-15046
150
46
0.061
0.002
0.108
PCMCS-16046
160
46
0.061
0.002
0.098
PCMCS-18047
180
47
0.051
0.002
0.090
PCMCS-20047
200
47
0.051
0.002
0.076
PCMCS-22048
220
48
0.041
0.002
0.065
PCMCS-25048
250
48
0.041
0.002
0.061

Product   Show

#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets 0

#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets 1

#20 Copper Fuel Filter 0.04mm Brass Mesh Sheets 2
