Wire Diameter: | 5 Micron | Size: | 0.914m X 30m |
---|---|---|---|
Material: | AISI 304, 304L, 316, 316L. | Weave: | Dutch Woven |
Mesh: | 40mesh | ||
High Light: | AISI Stainless Steel Woven Wire Mesh,0.25mm stainless steel woven wire mesh,5 Micron woven wire mesh |

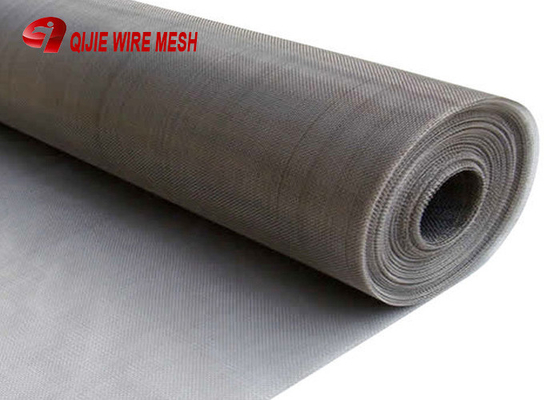

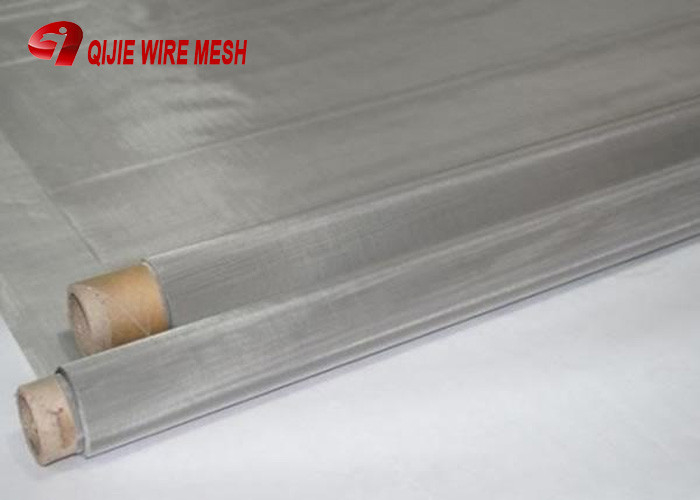

AISI 304, 304L, 316, 316L. Stainless Steel Mesh And Processed Filter Products
Description:
Stainless steel slip mesh could be produced as finished products. we can produce high and stable quality stainless steel strip mesh as per customer's requirement. Customzied size should be known as mesh size, wire thickness, strip width& length, packing etc.
Material: SS304, SS314L, SS316, SS316L,
Applications:
Stainless steel strip mesh products are good at suitable for various of adaptation, including medical equipment, food industry, construction material, kitchenware, electric equipment.
Other applications are as following:
Material: SS 302, SS 304, SS 304L, SS 316, SS316L, etc.
Size: The below is our general size, we can produce according to customers' size requirements.
Diameter: 0.1-0.25mm
Mesh: 14-24 mesh
Width: 0.3-2m
Length: 15-50m
Packaging: Plastic inside, then carton box, then pallet or wooden box. The packaing is suitable for exporting transport.
Specification list of Stainless Steel Wire Mesh | |||||
Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open Area, % |
||
Inches | mm | Inches | mm | ||
10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
10 x 10 | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
10 x 10 | 0.025 | 0.63 | 0.075 | 1.90 | 56.3 |
12 x 12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
12 x 12 | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
12 x 12 | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
12 x 12 | 0.023 | 0.58 | 0.060 | 1.52 | 51.8 |
14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
14 x 14 | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
14 x 14 | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
14 x 14 | 0.020 | 0.5 | 0.051 | 1.30 | 51.0 |
16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
16 x 16 | 0.023 | 0.58 | 0.040 | 1.01 | 39.9 |
16 x 16 | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
18 x 18 | 0.020 | 0.5 | 0.036 | 0.91 | 41.1 |
18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
20 x 20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
20 x 20 | 0.020 | 0.5 | 0.030 | 0.76 | 36.0 |
20 x 20 | 0.018 | 0.45 | 0.032 | 0.81 | 41.0 |
20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
28 x 28 | 0.010 | 0.25 | 0.026 | 0.66 | 51.8 |
30 x 30 | 0.013 | 0.33 | 0.020 | 0.50 | 37.1 |
30 x 30 | 0.012 | 0.30 | 0.021 | 0.53 | 40.8 |
35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
35 x 35 | 0.010 | 0.25 | 0.019 | 0.48 | 42.4 |
40 x 40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
40 x 40 | 0.012 | 0.30 | 0.013 | 0.33 | 27.4 |
40 x 40 | 0.010 | 0.25 | 0.015 | 0.38 | 36.0 |
40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
80 x 80 | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
120 x 120 | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
150 x 150 | 0.0026 | 0.066 | 0.0041 | 0.10 | 37.4 |
165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
180 x 180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
200 x 200 | 0.0020 | 0.050 | 0.003 | 0.076 | 36.0 |
200 x 200 | 0.0016 | 0.040 | 0.0035 | 0.089 | 46.0 |
220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
230 x 230 | 0.0014 | 0.035 | 0.0028 | 0.071 | 46.0 |
250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
270 x 270 | 0.0014 | 0.040 | 0.0022 | 0.055 | 38.0 |
300 x 300 | 0.0012 | 0.030 | 0.0021 | 0.053 | 40.1 |
325 x 325 | 0.0014 | 0.040 | 0.0017 | 0.043 | 30.0 |
325 x 325 | 0.0011 | 0.028 | 0.0020 | 0.050 | 42.0 |
400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
