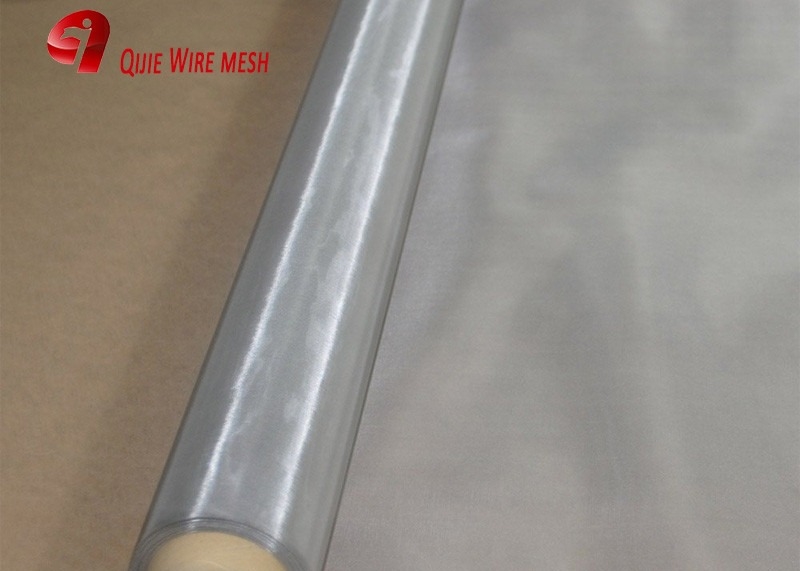

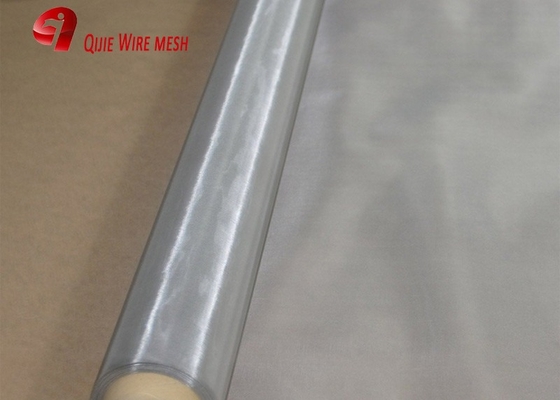

Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh

Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh
Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh

Large Image :  Plain Weave 304L 0.05MM Stainless Steel Woven Wire Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: Xmesh
Certification: SGS
Model Number: QJ-0205
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Wood case or pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100rolls per month
Detailed Product Description
Wire Diameter: 5micron Size: 0.914m X 30m
Material: 304,304L 316, 316L Weave: Dutch Woven
Mesh: 40mesh
High Light:

304l stainless steel woven wire mesh

,

304l stainless woven wire mesh

,

0.05mm stainless steel woven wire mesh

SS 302, SS 304, SS 304L, SS 316, SS316L SS Wire Cloth Stainless Steel Plain Weave Mesh​



1. Description:



Stainless steel Reverse Dutch Weave means the reverse of the Plain Dutch Weave. Manufactured using warp and weft wires with different wire thickness, the warp wire are thiner than weft wire.
By varying the combination of weft and warp wires, filtering openings from 14 to 100 microns can be available
crossing surface of 30-40%, the maximum yield in similar conditions.


Wide: We do at most 1m. any custom size within it would be acceptable.
Materials : S.S 304 &316 are the most popular materials.



Micron wire mesh usually refers to fine opening mesh cloth made with thin wire and precise apertures. We supply two types of micron filter mesh: woven wire micron mesh and sintered micron mesh.

Micron Wire Mesh Materials and Common Sizes:

Micron Stainless Steel Wire Mesh Material: stainless steel wire 201,202,304,304L, 316,316L, 321, 430, etc

Standard roll width: 1m to 48"

Standard roll length: 30m to 100"

Mesh: 1-635mesh

Wire diameter: 0.05-1.5mm(normally from 0.25-0.80mm)

Micron stainless steel wire mesh is a surface-filter type media. It is made by weaving specific wire in predetermined patterns to form apertures of different shapes and sizes. Plain square, twilled square, plain dutch, and twilled dutch are common weave patterns available.

Muti-layers micron metal mesh is sintered by two or more layers(2~12layers) of stainless steel wire mesh, which are compressed and sintered together in vacuum. Its micron rating ranges from 0.5micron to 300micron.



Properties: acid resistance, alkali resistance, high temperature resistance, tension and abrasion resistance, good filtration precision and high load strength.

USE: Stainless steel mesh is widely used in aerospace, petroleum, chemical industry, scientific research and transportation, etc, used in acid, alkali environment conditions screening and filter, oil industry as mud mesh, chemical fiber industry as screen mesh, plating industry as pickling nets

Specification: The standard roll width: 1m-2m. Standard roll length: 30-50m.

The steel mesh in special width and length can be produced according to customers` requirements.





The warp wire (D1) : all longitudinal braided lines.

The weft wire (D2) : all horizontal weaving lines.

Aperture (L1 and L2) : the distance between two meridians or two weft.

Mesh number:number of mesh holes per inch.

Thickness (T) : thickness of the net.



2. Specifications:



Special specifications can be produced by the customer's requirements.



Reverse dutch weave specification

Mesh count

Warp x weft

Wire diameter mm

Warp x weft


Open Area %

Micron rating
63x18 0.4x0.6 60 220
107x 20 0.24x0.6 58 210
132x 32 0.2x 0.4 55 105
170x 40 0.2x 0.45 58 130
171x 46 0.15 x0.3 54 85
290x 75 0.09x 0.2 53 55
615x 102 0.04x 0.16 41 42
615x 130 0.04x0.13 49 22
720x 150 0.036x 0.1 54 17

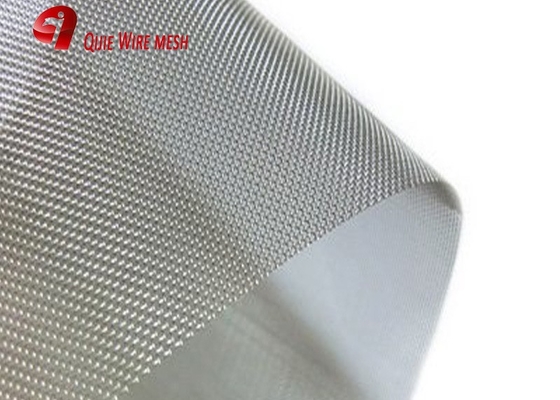

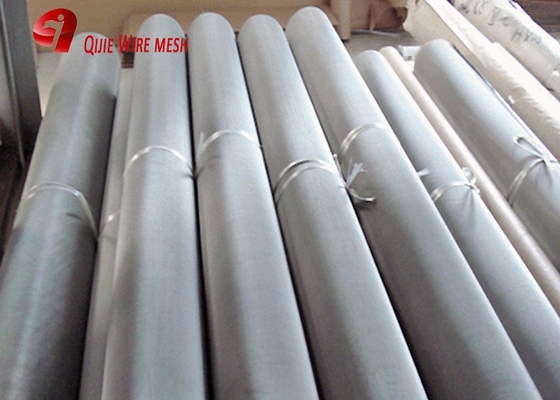

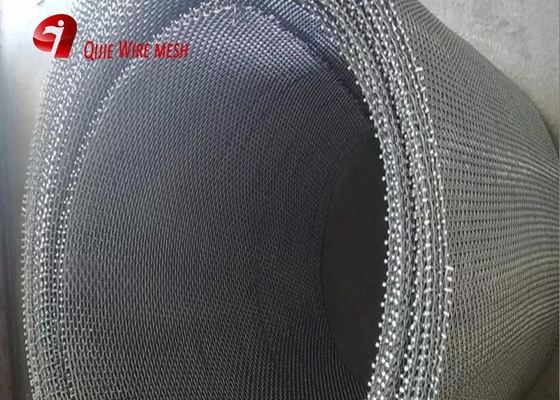

Stainless Steel  Wire Mesh Stainless Steel Dutch Wire Mesh
Stainless Steel Dutch Wire Mesh Stainless Steel Dutch Wire Mesh
