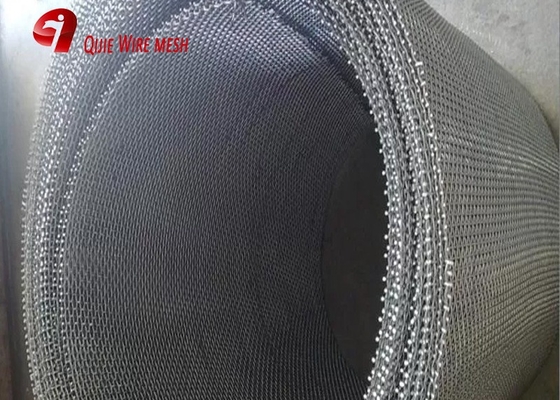

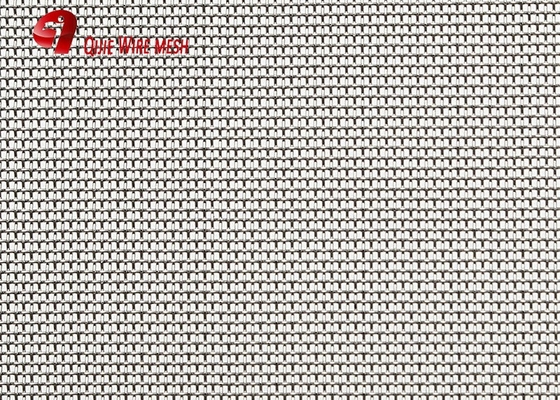

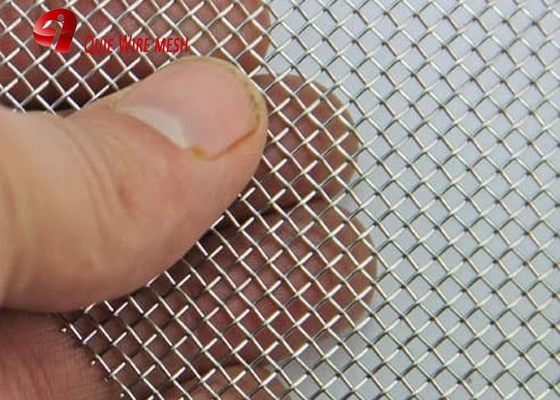

Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter

Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter
Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter

Large Image :  Twill Dutch Weave 2mm Stainless Wire Cloth For Oil / Gas Filter

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: aluminum crimped wire mesh
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets or wood case
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 meter per week
Detailed Product Description
Wire Diameter: 2mm Mesh Openning: 1/2" X 1/2"
Size: 1.20m Width X 100m Length Name: Aluminum Crimped Wire Mesh
Wire Materials:: Stainless Steel Wire General Use:: Screening In Mine
Products Name: 30 M Length Aluminum Alloy Woven Wire Mesh For Melting Layer And Filter
High Light:

2mm stainless wire cloth

,

2mm stainless wire filter cloth

,

1/2x1/2 stainless wire cloth

Twill Dutch Weave Stainless Steel Wire Cloth Mesh For Oil / Gas Filter





Stainless steel wire mesh has been widely used in chemical, petrochemical and oilexploration, transportation, nuclear industry, energy, textile, aerospace, electronics,food pharmaceutical paper and other industrial sectors, in certain areas or may notbecome an indispensable substituted metal material. In addition, the sub-mesh sta-nless steel and decorative and easy to clean and antbacterial properties, in the con-sumer sector it has been widely used, such as construction and decoration, kitchenutensils, cutlery, metal and other civil.



Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.



Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.



The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.



Stainless Steel is one of the most common material used to create woven wire mesh,because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned.

Common stainless steel materials used to create woven wire mesh include:304,304L,316,316L,430 etc.



Stainless steel Reverse Dutch Weave means the reverse of the Plain Dutch Weave. Manufactured using warp and weft wires with different wire thickness, the warp wire are thiner than weft wire.The filtering openings from 14 to 100 microns can be available. Crossing surface of 30-40%, the maximum yield in similar conditions.

Wide:The maxmium width is one meter, or any customized size within a meter would be acceptable.
Materials : S.S 304 &316 are the most popular materials.



Features of Stainless Steel Wire Mesh

Sturdy construction

Extremely commonly

Easy to install

Low resistance to wind loads

Easily cut to fit

Available in many materials, such as stainless steel 304 and 316



Stainless Steel Wire Mesh Weave Pattern/Style:

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.




















Stainless Steel Wire Mesh Application:

Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications.Examples of common applications include:

1. Used in Acid,Alkali environment screening mesh and filtration filter

2. For a slurry net Petroleum industry

3. Chemical fiber industry

4. Filtering liquid and gas

5. Used for Mechanical accessory security etc.

Packing: wrapped with water-proof paper, then in wooden cases or pallet

Stainless Steel Wire Mesh Note:

1. Standard roll length 30m,Width 1m,1.2m,1.5m,2.0m etc.

2. Packing: water-proof paper, woven bag and also can be made as per client’s requirement.

3. Mesh counts: 1 mesh to 635 mesh.
