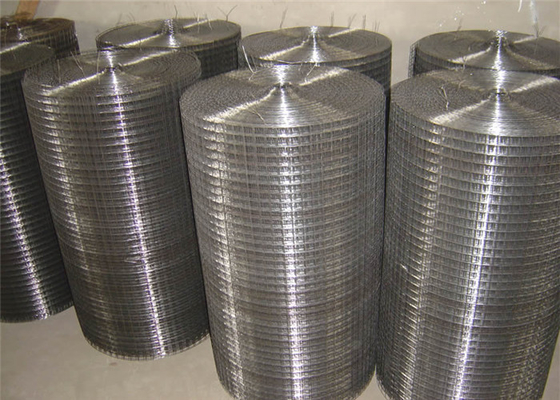

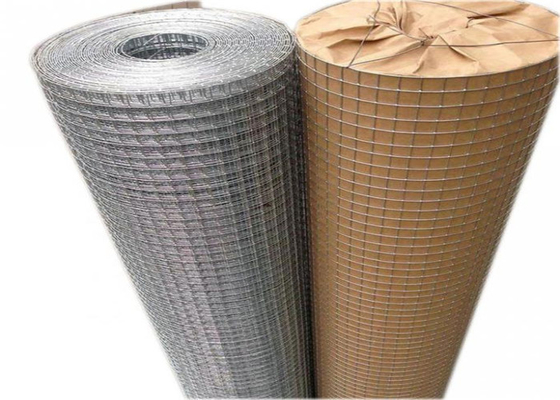

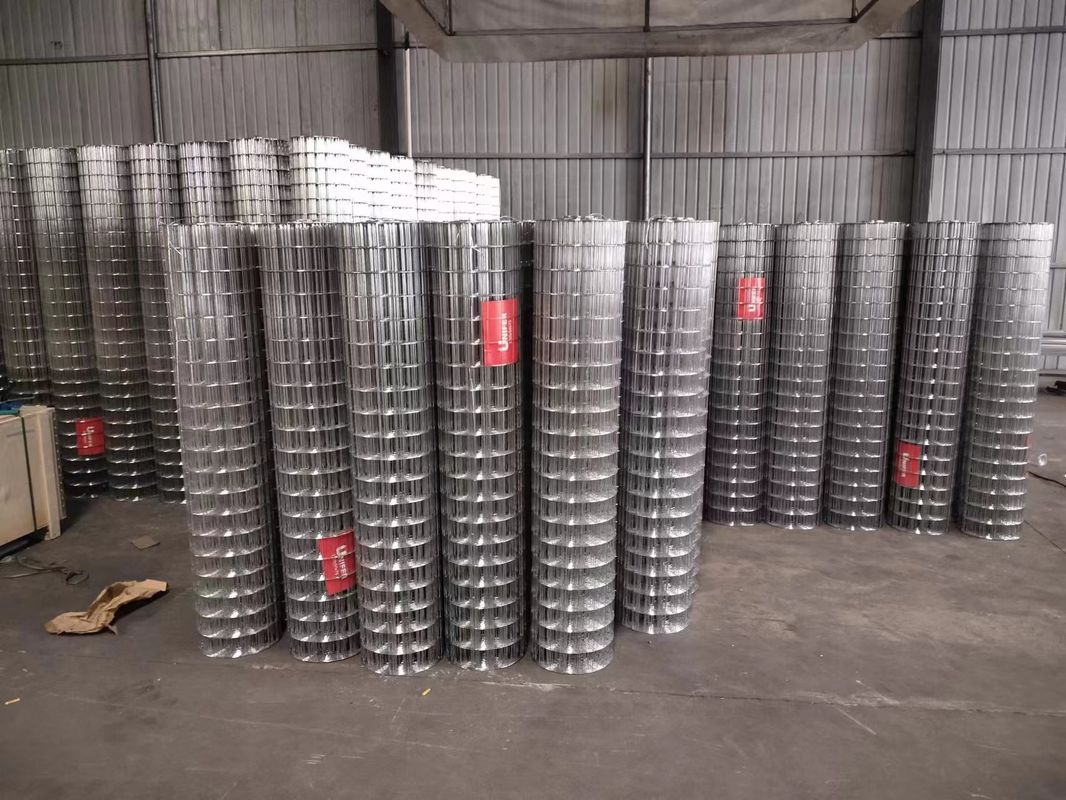

25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh

25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh
25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh 25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh 25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh

Large Image :  25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh

Product Details:
Place of Origin: CHINA
Brand Name: QiJie
Certification: ISO9001:2008, SGS, CE
Model Number: 01WWM
Payment & Shipping Terms:
Minimum Order Quantity: 50 rolls
Price: USD9.90-USD45.90
Packaging Details: Plastic film or water proof paper
Delivery Time: 10-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 rolls/per day
Detailed Product Description
Material: Carbon Steel Wire Mesh Opening: 12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter: 0.4mm - 1.5mm Roll Width: 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length: 15M,30M,50M Ect Surface Treatment: Hot Dipped Galvanized Or Electric Galvanized
Model Number: Xx-01001 Application:: Fence Mesh
High Light:

25x25mm Galvanized Welded Wire Mesh

,

25x25 Galvanized Welded Wire Mesh

,

HDG Welded Wire Mesh

25x25mm Mesh Hole Hot Dipped Galvanized Welded Iron Wire Mesh



Product Description:
Welded wire plaster mesh is made of low carbon steel wire or galvanized low carbon steel wire. Of course, the galvanized welded wire plaster mesh is your most suitable choice, its anti-corrosion materials avoid the appearance of red strips or spots on it surface. Welded mesh plastering plays a role in preventing wall cracking. It commonly used in indoor walls and outside plaster reinforcement.

 Material: Galvanized iron wire, low carbon steel wire, PVC coated wire, Stainless steel wire

Width: 24 inch, 36 inch, 1 Metre, 48 inch, 72 inch or 84 inch
Length:100 feet or 150 feet

Welded Wire Plaster Wall Mesh

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Specifications of plastering welded wire mesh:

Mesh size(mm) Wire diameter(mm) Roll width Roll length
10x10 0.4, 0.5, 0.55, 0.65, 0.7, 0.8, 0.9 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
12x12 0.5, 0.6, 0.8, 0.9 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
14x14 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
16x16 0.9, 1.0, 1.2 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
20x20 0.8, 0.9, 1.0. 1.2 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
20x12.5 0.8, 0.9, 1.0. 1.2, 1.3 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
25x25 0.8, 0.9, 1.0. 1.2, 1.3, 1.4 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
50x20 0.8, 0.9, 1.0. 1.2, 1.3, 1.4, 1.5 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m
50x50 0.8, 0.9, 1.0. 1.2, 1.3, 1.4, 1.5 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m >15m

Note: We can also customize for your required size.

Welded Wire Plaster Wall Mesh

25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh 6

Feature of plastering welded wire mesh:

1. economic and good looking

2. anti-corrosion and long service life

3. wide scope of using

25x25mm Hole Hot Dipped Galvanized Welded Wire Mesh 7

Welded Wire Mesh Welding style:

Hot dipped galvanized after or before welding

Electro galvanized after or before welding

Weaving and characteristics:

Hot dipped galvanizing after welding

Welding with hot dipped galvanized iron wire

Electric galvanizing after welding

Welding with electric galvanized iron wire

PVC coated welded wire mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
