| Type: | Welded Wire Mesh | Material: | Black Wire, |
|---|---|---|---|
| Wire Diameter: | 4-12mm | Surface Treatment: | Hot Dipped Galvanized Or Powder Coated |
| Feature: | Good Integrity And A Competitively Long Service Life | Aperture: | 1/2",1/4"-6" |
| High Light: | 1 inch galvanised mesh sheets,12mm galvanised mesh sheets,SGS galvanised mesh sheets |
||
Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh
1. Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh Description:
Welded wire mesh is also can be called welded wire mesh sheet or welded wire mesh roll according to its making methods. It is one of the most versatile of all wire mesh.
Widely used in industry, agriculture, building, mine, decoration etc.
Materials: high quality low carbon steel wire, stainless steel wire.
Coating style: Electro Galvanized before welding, Electro Galvanized after welding, Hot dipped galvanized before welding, Hot dipped galvanized after welding, PVC coated.
Zinc coating: 20-250g/m2
2.Main Features of Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh:
• Versatile, High strength, Easy cutting and shearing, Solid construction, Welding point stronger, Easy handling, corrosion- resisting, oxidation-resisting.

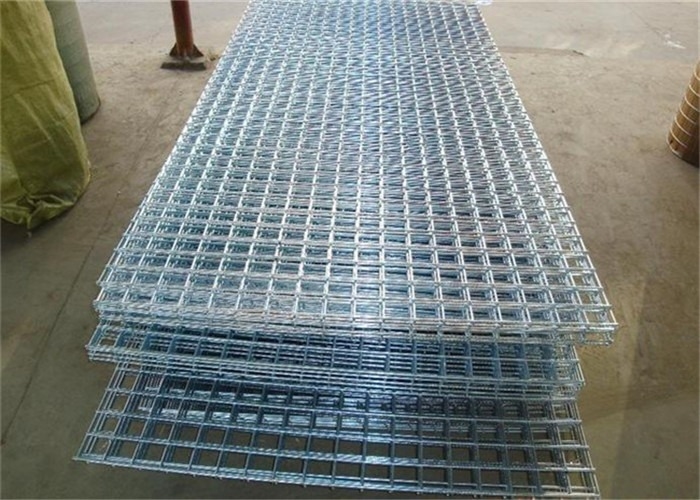

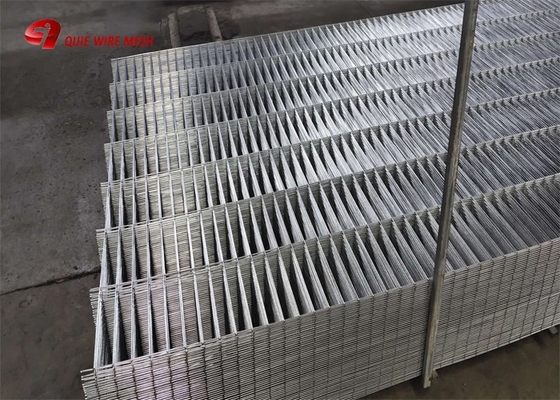

3. Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh Images
4.Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh Specification
| Specification List of Welded Wire Mesh | |||||||||
| Opening | Wire Diameter | ||||||||
| In inch | In metric unit(mm) | ||||||||
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | |||||||
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 | |||||||
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | |||||||
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, | |||||||
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | |||||||
| 1" x 1/2" | 254mm x 12.7mm | 16,17,18,19,20,21 | |||||||
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | |||||||
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 | |||||||
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | |||||||
| Technical Note: 1. Standard roll length: 30m, width: 0.5m to 1.8m 2. Special sizes available at request. 3. Packing: in waterproof paper in rolls. Custom packing available at request. |
|||||||||
| Specification of galvanized hexagonal wire mesh | |||||||||
| Specifications | Wire Diameter | Width | |||||||
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | BS | Metric | |||
| 3/8” | 10 | +0.5 | BWG27-23 | 0.40-0.6mm | 1”-6” | 0.1-2m | |||
| 1/2” | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m | |||
| 5/8” | 16 | +1.0/-2.0 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m | |||
| 3/4” | 20 | +1.0/-2.5 | BWG26-20 | 0.46-0.9mm | 1”-6” | 0.1-2m | |||
| 1” | 25 | +1.5 | BWG25-19 | 0.5-1.0mm | 1”-6” | 0.1-2m | |||
| 1-1/4” | 31 | -3.0 | BWG24-18 | 0.56-1.2mm | 1”-6” | 0.2-2m | |||
| 1-1/2” | 40 | +2.0/-4.0 | BWG23-16 | 0.6-1.65mm | 1”-6” | 0.2-2m | |||
| 2” | 51 | +2.0/-4.0 | BWG22-14 | 0.7-2.0mm | 1”-6” | 0.2-2m | |||
| 3” | 76 | +2.0/-4.0 | BWG21-14 | 0.8-2.0mm | 1”-6” | 0.3-2m | |||
| 4” | 100 | +2.0/-4.0 | BWG20-12 | 0.9-2.8mm | 1”-6” | 0.5-2m | |||
| Others we can do as your requirement | |||||||||
| Specification of PVC coated hexagonal wire mesh | ||
| Opening | Wire Diameter | |
| Inch | MM | MM |
| 1/2” | 13mm | 0.6mm-1.0mm |
| 3/4” | 20mm | 0.8mm-1.1mm |
| 1” | 25mm | 0.9mm-1.4mm |
| 1-1/4” | 30mm | 0.9mm-1.5mm |
| 1-1/2” | 40mm | 0.9mm-1.5mm |
| 2” | 50mm | 0.9mm-1.5mm |
| Others we can do as your requirement | ||
| Mesh/inch | Wire Dia. (mm) | Aperture (mm) |
| 2 | 1.60 | 11.10 |
| 4 | 1.20 | 5.15 |
| 5 | 1.00 | 4.08 |
| 6 | 0.80 | 3.43 |
| 8 | 0.60 | 2.57 |
| 10 | 0.55 | 1.99 |
| 12 | 0.50 | 1.61 |
| 14 | 0.45 | 1.36 |
| 16 | 0.40 | 1.19 |
| 18 | 0.35 | 1.06 |
| 20 | 0.30 | 0.97 |
| 30 | 0.25 | 0.59 |
| 40 | 0.20 | 0.44 |
| 50 | 0.16 | 0.35 |
5.FAQ
We have organized several common questions for our clients,may help you sincerely:
①How about your Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh?
One of the most biggest manufacturer & supplier of wires and wire mesh,is a large-scale professional UAE Market Electric Galvanised Wire BWG 20 0.7mm Hot Dipped Galvnised Wire factory in China. Annually more than 10000 tons wires and wire mesh are exported to markets all over the world. Different kinds of wires and mesh are available according to customer’s requirements.
②What is your Technical Information of Galvanzie Welded Wire Mesh Sheet 1inch mesh 2 inch mesh 4inch mesh?
1).Material: super carbon steel
2).Processing by drawing, hot-dip zinc-plating
3).Standard wire gauge from 8# to 24#
4).Thick zinc-coating layer
5).Super in corrosion resistance
6).Firm coating layer
7).Custom size available
