Hole Shape: | Square,rectangle | Wire Gauge: | 0.3mm-8.0mm |
---|---|---|---|
Application: | Construction Wire Mesh,building | Type: | Welded Mesh,Panel Or Roll |
Width: | 0.5m To 2.2m | Length: | 30m,50m,10m,25m |
Usage: | Building,construction | Packing: | Waterproof Paper,Pallet,In Roll,Panel |
Color: | Silver | Feature: | Waterproof,Anti-rust,Anti-corrosion |
Name: | Welded Wire Mesh Sheet | Hole Size: | 5/8'' As Customer Request |
Wire Diameter: | 1.0mm~4.50mm | ||
High Light: | iso galvanised steel mesh sheets,2.2m galvanised steel mesh sheets,2.2m galvanized steel mesh sheets |

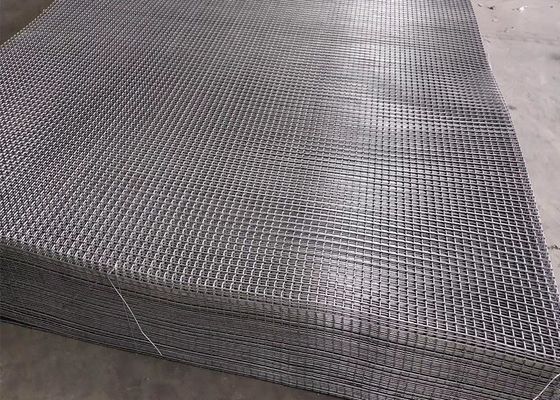

Building Construction Mesh Galvanized Welded Wire Mesh Panel
Galvanized welded wire mesh is made of high quality low carbon steel wire.welded wire mesh divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportionedmeshes,
Electro galvanized wire, hot-dipped galvanized.
We choose the best low carbon wire or stainless steel wire material available in China. The high quality & reasonable price product is from the right material.
[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²
2) production
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
Application
Galvanized welded wire mesh crack in thermal engineering plays a certain role, exterior wall paint and plaster mesh is divided into two kinds: one for hot dip galvanized welded wire mesh, long service life, strong anticorrosion performance);Another change for drawing wire net (economic incentives, smooth surface, white and glossy), in accordance with the requirements of area, the construction unit to make reasonable material selection, painting the construction welded wire mesh specifications are: 12.7 x 12.7 mm, 19.05 x19.05 mm, 25.4 mm x25.4, silk diameter between 0.4- 0.9 mm.
MESH | WIRE DIAMETER (BWG) |
WIDTH | LENGTH | |
(INCH) | (MM) | 24", 36", 48", 60",72" OR 0.5M, 0.6M, 0.7M, 0.8M, 1.0M, 1.2M, 1.5M, 1.8M, 2.0M |
10', 25', 50', 100', 150' OR 5M, 10M, 25M, 30M, 45M |
|
1/4 × 1/4 | 6.35 × 6.35 | 22,23,24,25 | ||
3/8 × 3/8 | 10.6 × 10.6 | 19,20,21,22 | ||
1/2× 1/2 | 12.7 × 12.7 | 16,17,18,19,20,21,22,23,24 | ||
5/8 × 5/8 | 16 × 16 | 18,19,20,21,22 | ||
3/4 × 3/4 | 19 × 19 | 16,17,18,19,20,21 | ||
1 × 1/2 | 25.4 × 12.7 | 16,17,18,19,20,21 | ||
1 × 1 | 25.4 x 25.4 | 14,15,16,17,18,19,20 | ||
1-1/2 × 1-1/2 | 38 x 38 | 14,15,16,17,18,19 | ||
1 X 2 | 25.4 × 50.8 | 14,15,16,17,18,19 | ||
2 × 2 | 50.8 × 50.8 | 14,15,16,17,18 | ||
2 × 3 | 50.8 x 76 | 14,15,16 | ||
4 × 4 | 101.6 x 101.6 | 12,14,15,16 | ||
6 × 6 | 152.4 x 152.4 | 10,12,14,16 |
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
