| Diameter: | 4mm | Height: | 1.8m |
|---|---|---|---|
| Mesh Openning: | 50*200mm | Width: | 2.5m |
| Color: | Green | Products Name: | 3d Curved Mesh Fence |
| Panel Size:: | 1.5*2.5m, 1.6*2.5m, 1.8*2.5m | ||
| High Light: | 1.8m tall curved metal fence,curved metal fence 1.8m tall,width 2.5m curved metal fence |
||

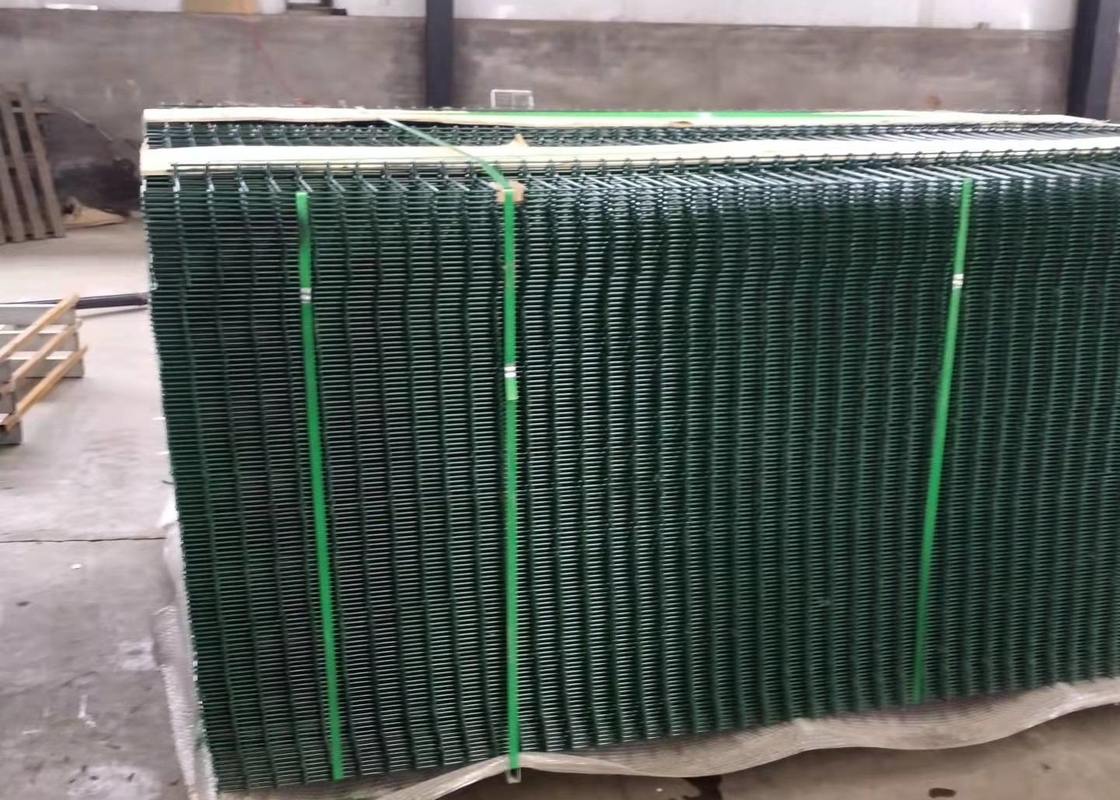

Best Selling Easy Installation Garden Security Perimeter Curved Wire Mesh Peach Shape Post Fence
Wire mesh Fence is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
Installation: Directly fill in the embedded installation on the wall or cement surface, and install the safety accessories through the flange. Elbowand barbed wire can be added to the fence, according to the safety protection requirements.
* Material: Low carbon steel wire & Hot dipped galvanized wire
* Processing mode: welded
* Surface treatment:
I. Black wire welded mesh +electro galvanized+ polyester powder & PVC coated;
II. Galvanized welded mesh + polyester powder & PVC coated;
III. Hot dipped galvanized welded mesh + polyester powder & PVC coated.
Process of curved mesh fence:
* Material (wire)
* Straightening & Cutting short
* Welding to panels
* Electro galvanizing
* Making folds (bends)
* Parkerizing
* Powder coating, or PVC coating
* Packing
* Container loading
* Shipping
Panel Styles Options:
2D plus mesh panel- Flat with additional wire
2D panel without curves
2D plus with one additional horizontal wire every 11 mesh
3D Mesh Panels.
Product Paramenters
|
Panel height
|
Panel Length
|
Wire Diameter
|
Mesh Size
|
|
0.6/0.63m
|
2.5m
|
Gal + Powder Coated
|
50*200mm
|
|
1.0/1.03m
|
3.85mm/4.0mm
|
55*200mm
|
|
|
1.2/1.23m
|
4.85mm/5.0mm
|
50*150mm
|
|
|
1.5/1.53m
|
|
55*100mm
|
|
|
1.7/1.73m
|
Gal + PVC Coated
|
|
|
|
1.8/1.83m
|
3.0mm/4.0mm
|
|
|
|
1.9/1.93m
|
4.0mm/5.0mm
|
|
|
|
2.0/2.03m
|
|
|
|
|
2.4/2.43m
|
Hot-dipped Gal.
|
|
Green PVC Coated Steel 358 Mesh High Security Fencing
Wire/Safety mesh fence made of steel wire;
Hot-dipped galvanized after welded (Zinc coated - Zn 40g/m, Powder coated
Panel heigh: 1225 or 1525 mm
Panel lengh: 2500 or 3000 mm
Wire diameter: 4mm X 1000 pieces and 5mm X 800 pieces
Mesh size: 200x55 mm
Folds number: 2 or 3

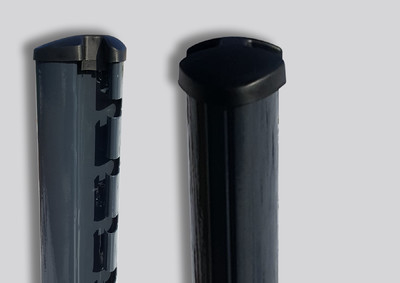

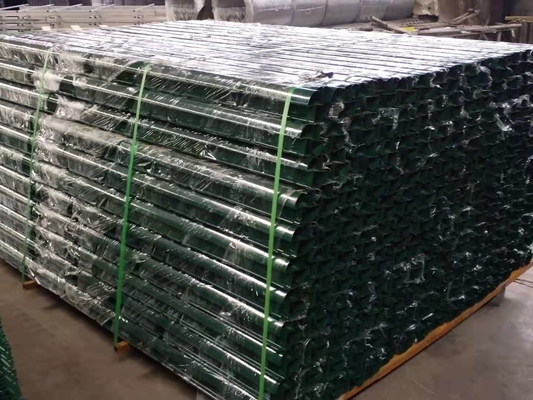

Post of 3D Curved Mesh Fence:
Post style:
quare post: 50*50mm, 60*60mm (popular)
peach post: 70*100mm (popular)
round post: 50mm O.D. (popular)
high security curved fence panels accessories
1. All the clips are metal, it is stronger than plastic.
2. Clips and screws are packed by sets, plastic film + carton box.
3. Carton Box Dimensions: 300*300*400mm
Advantage of 3D curved wire mesh fence:
Extraordinary and stylish design, easy to install. The baffle is connected to the column without any clips, which is simple and convenient. It can be inserted into a 40mm wide concrete base. There is usually a plastic cover on top of the column. The upper inspection and repair is very easy and the columns are easy to replace.
Application of 3D Curved Wire Mesh Fence:
