Product Details:
Payment & Shipping Terms:
|
Material: | Manganese Steel, 65mn, | Size: | 1400mm X 2400mm, 1200mmx1500mm 1500mmx2000mm 1500mmX2470mm |
---|---|---|---|
Wire Diameter: | 6mm, 5mm, 4mm, 3mm | Aperture: | 19.1mm, 12.7mm, 9.5mm, 6.0mm |
Hook: | 60 Degree | Mesh Type: | Square, Rectangle, |
Finish: | Anti Rust Oil | ||
High Light: | abrasion resistance woven vibrating screen mesh,65mn woven vibrating screen mesh,high tensile strength vibrating screen mesh |
Manganese Steel Mining Vibrating Screen has the wires pre-undulated with strict steps in order to obtain regularity in the mesh.
Due to its high percentage of screening surface, they are used to classify, with great precision and a high performance, materials that do not have a tendency to block. The high resistance to traction of the steel used allows obtaining a great resistance to vibration and a long service time.
Woven vibrating screen mesh. it is the most popular and widely used type of vibrating screen mesh. It contains high tensile spring steel vibrating screen mesh, manganese steel vibrating screen mesh and stainless steel vibrating screen mesh.
Woven vibrating screen mesh has different weaving method and various edge types.
Specifications
Features:
Application:
The Manganese Steel Mining Vibrating Screen can be used in the following fields as:
Chemical sheet of the main material | |||||||||
---|---|---|---|---|---|---|---|---|---|
Steel Grade | Chemical Composition (%) | ||||||||
China (GB - YG) | USA (AISI) | C | Mn | Si | S | P | Cr | Cu | Ni |
# 45 | 1045 | 0.42 - 0.50 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 50 | 1050 | 0.47 - 0.55 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 55 | 1055 | 0.52 - 0.60 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 60 | 1060 | 0.57 - 0.65 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 70 | 1070 | 0.67 - 0.75 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
65 Mn | 1566 | 0.62 - 0.70 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
Specification:
S/No | Hole size | Thickness | Panel size |
1 | 0.5mm | 0.3mm | 1200mmx1500mm 1500mmx2000mm 1500mmX2470mm 1600mmX3100mm 1600mmx2550mm 1630mmX2550mm 1750mmx4500mm 1850mmx2070mm 2000mmx3000mm 2030mmX2050mm 2070mmx2470mm ... Customized size is available. |
2 | 1.0mm | 0.75mm | |
3 | 1.5mm | 1mm | |
4 | 2.0mm | 1.5mm | |
5 | 3.0mm | 2mm | |
6 | 4.0mm | 2.5mm | |
7 | 5.0mm | 3mm | |
8 | 6.0mm | 3mm | |
9 | 7.00mm | 3mm | |
10 | 8.0mm | 3mm | |
11 | 9.0mm | 3.5mm | |
12 | 9.5mm | 3.5mm | |
13 | 10.mm | 4mm | |
14 | 11.0mm | 4mm | |
15 | 12.0mm | 4mm | |
16 | 12.5mm | 4mm | |
17 | 13.0mm | 4mm | |
18 | 14.0mm | 4mm | |
19 | 15.0mm | 4mm | |
20 | 16.mm | 4mm | |
21 | 17.mm | 4.5mm | |
22 | 18.mm | 5mm | |
23 | 19.mm | 5mm | |
24 | 20.0mm | 6mm | |
25 | 21.0mm | 6mm | |
26 | 22.0mm | 6mm | |
27 | 23.0mm | 6mm | |
28 | 24.0mm | 6mm | |
29 | 25.0mm | 6mm | |
30 | 26.0mm | 6mm | |
31 | 30.0mm | 6.5mm | |
32 | 32.0mm | 7mm | |
33 | 35.0mm | 7mm | |
34 | 38.0mm | 8mm | |
35 | 40.0mm | 8mm | |
36 | 45.0mm | 8mm | |
37 | 50.0mm | 8mm | |
38 | 55.0mm | 8mm | |
39 | 60.0mm | 8.5mm | |
40 | 65.0mm | 8.5mm | |
41 | 75.0mm | 9 mm | |
42 | 80.0mm | 9 mm | |
43 | 90.0mm | 9mm | |
44 | 100.0mm | 10MM |

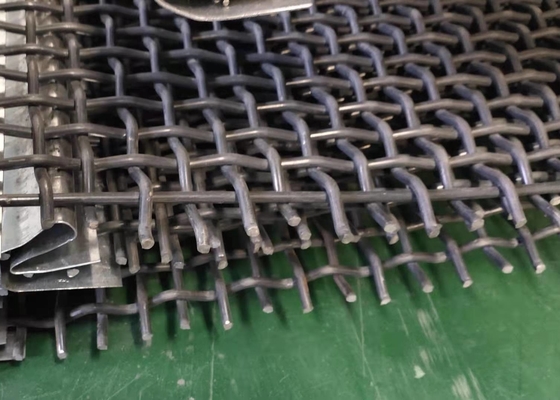

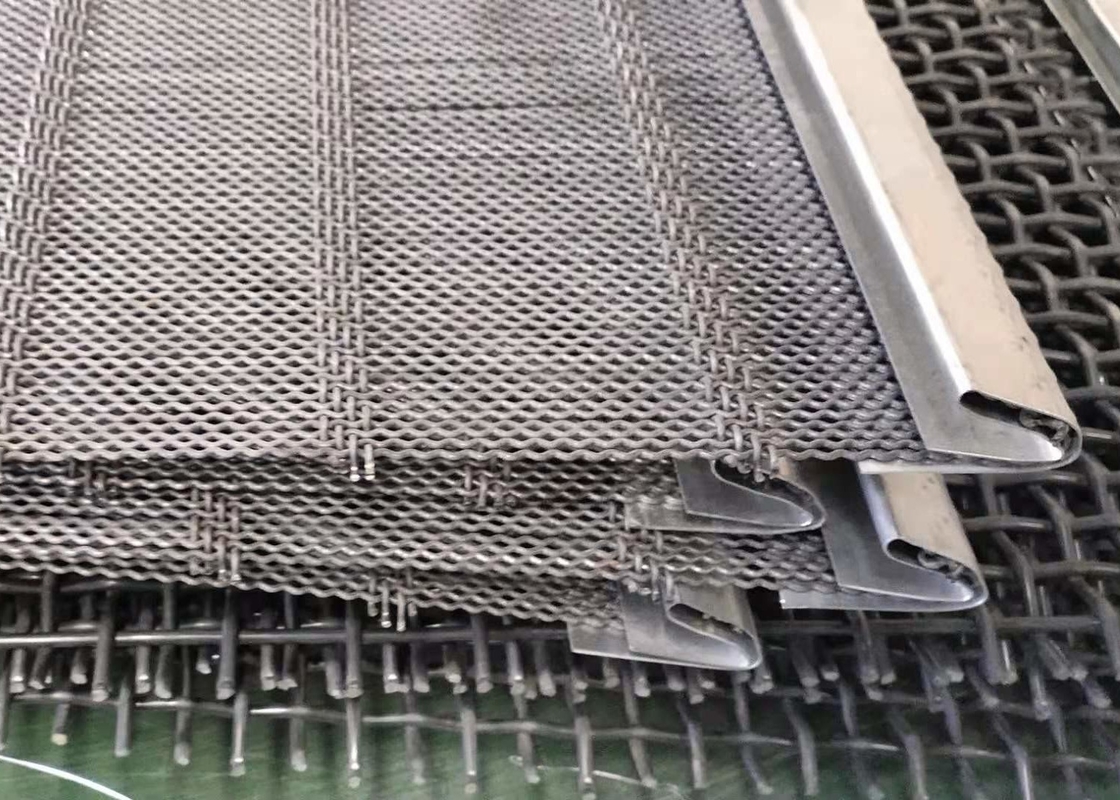

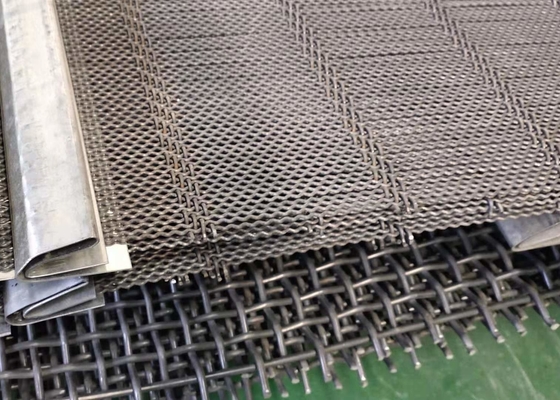

Photo:
