Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire | Mesh Opening: | 12 × 12, 20 × 20, 25 × 25, 12 × 25mm |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 1.5mm | Roll Width: | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m |
| Roll Length: | 15M,30M,50M Ect | Surface Treatment: | Hot Dipped Galvanized |
| High Light: | 316l welded wire mesh panel,hdg welded wire mesh panel,ss304 welded wire mesh panel |
||
High Quality Stainless Steel 304, 316, 316L Welded Wire Mesh Metal Panel Sheet
1.Welded Wire Mesh
The welded wire mesh is welded by excellent low-carbon steel wires and passivated and plasticized through
cold plating (electroplating), hot dipping and PVC plastic coating. With flat surface, even mesh count,
firm welding spots and stable structure, it features its strong completeness, partial good machining performance,
stability, excellent corrosion resistance and rush prevention.
1.Welded Wire Mesh Material: Low carbon steel wire, Stainless steel wire
2.Welded Wire Mesh Type:
Electro galvanized after or before welded wire mesh
Hot dippd galvanized after or before welded wire mesh
PVC coated welded wire mesh
Stainless steel welded wire mesh
Material |
SUS 304, 304HP,304N, 304L, 316, 316L, etc.( (Heat-Treated Yarn) |
| Dimensions | Customized. |
| Packing details | Waterproof paper inside,wooden crate outside. |
| Delivery time | Normally within 25-35 days after down payment. |
| Sample | Available,charges depend on different types. |
| Payment terms | Normally, by T/T, L/C,Paypal is also acceptable. |
| MOQ | 1 piece. |
| OEM & ODM | Acceptable. |
| Certifications | ISO9001,SGS,CE,etc. |
3. Advantage:
good corrosion resistance and oxidation resistance
4. Application:
Strengthen protection and temperature keeping materials in the form of mesh container, stone cage,
isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden
and food processing industries,building construction,General Use
5.Specification:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Features and Benefits
Fine acid proof and soda resisting.
Heat resisting and wear proof.
High tension,low elongation.
Better draingate and formation.
Easy for cleaning by ordinary.
Good corrosion resistance,filterableness.
Mesh accurate,high strength and structure uniform.
High efficency, cost saving and long life potential.
6.More products to choose
Applications
Mining industry
Oil,food industry.
Paper making industry.
Petroleum industry as mud mesh.
Plating industry as acid cleaning mesh.
Chemial fiber industry as screen mesh.
In acid,alkali environment conditions sieving and filtering.

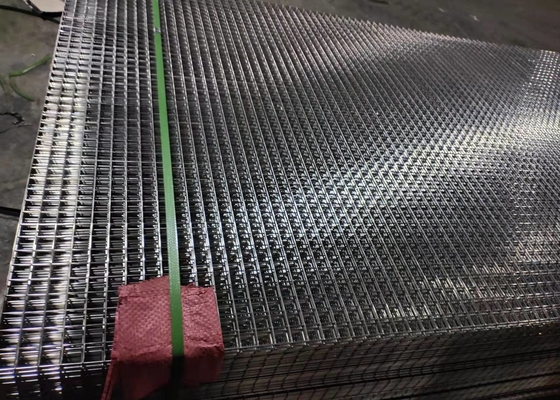

stainless steel welded wire mesh

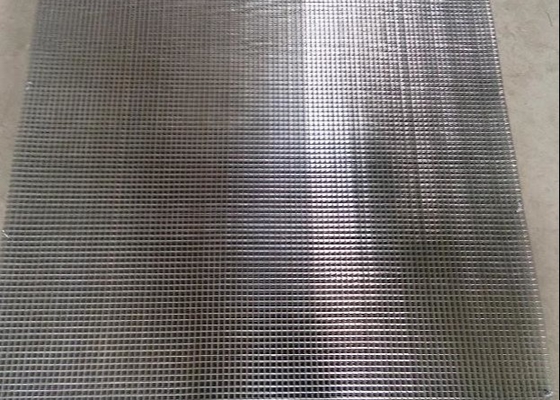

stainless steel welded wire mesh

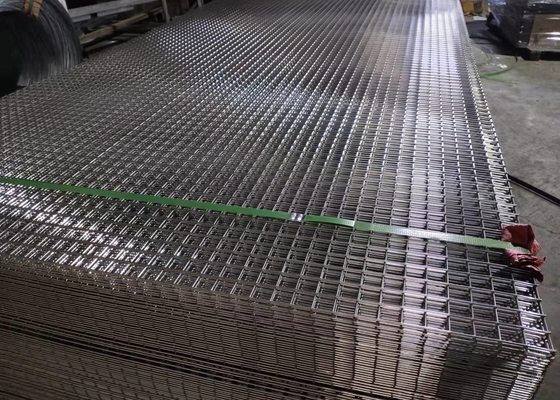

stainless steel welded wire mesh
stainless steel welded wire mesh
