Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Surface Treatment: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Wire Container | Loading Capacity: | 500kg |
| High Light: | 500kg metal wire mesh basket,hdg metal wire mesh basket,500kg collapsible wire mesh basket |
||

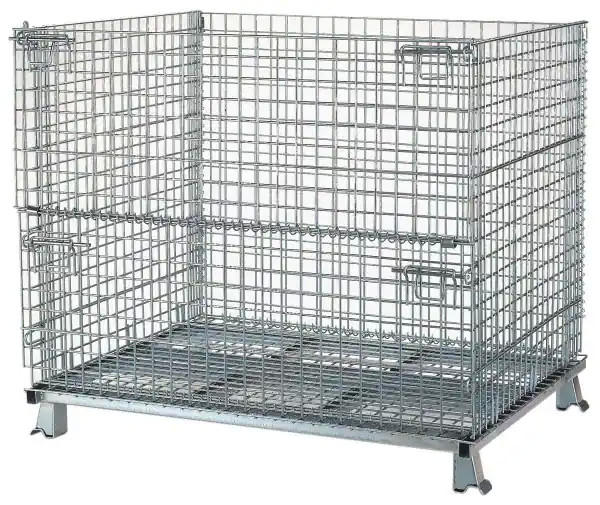

Industrial Collapsible Wire Mesh Metal Basket
Foldable rolling metal storage cage is a very important logistics storage and transportation of containers, and store items with fixed capacity, stacked neatly and stored at a glance, easy to the inventory, at the same time improve the effective utilization of warehouse space.When not used, can foldable and stackable to save storage space.
Storage cage commonly used three kinds: the first kind is storage cage with wheels ,the second
is storage cage with foot ,can stackable, the third is the combination of the wheels and foot.
Characteristic:
1. Made of high quality cold rolled steel welded together, high strength, large load capacity.
2. Sizes is unified, fixed capacity, storage of the goods at a glance, easy to inventory.
3. On the surface of galvanized, beautiful and oxidation resistance, long service life.

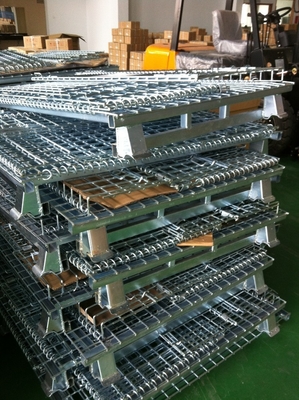

4. Can be stacked each other four levels, the realization of three-dimensional storage.
5. Surface treatment, environmental protection health immunization, flow, storage, recovery will not pollute the environment
6. Cooperate with forklift, elevator, crane equipment for efficient operation.
7. Folding structure, recovery of low cost, is the alternative products wooden packaging.
8. Can be installed the wheel at the bottom, the factory internal turnover is extremely convenient.
Specification of wire mesh stacking basket
| Same design, different sizes | |||||
| Model No. | Exterior dimension |
Wire Guage |
Dimension of Grid |
Loading capacity |
Loaded in 1*40'GP |
| LxWxH(mm) | mm | mm | kg | sets | |
| HML-W-1 | 1030x840x850 | 6 | 50*50 | 1300 | 470 |
| HML-L-1 | 1030x840x850 | 6 | 50*50 | 800 | 470 |
| HML-W-2 | 1230x1040x890 | 6.2 | 50*50 | 1700 | 320 |
| HML-L-2 | 1230x1040x900 | 6.2 | 50*50 | 1200 | 320 |
| HML-S-1 | 1230x1040x950 | 6.2 | 50*50 | 1700 | 320 |
| HML-W-3 | 1030x840x500 | 6 | 50*50 | 800 | 470 |
| Material | Mild steel Q235 | ||||
| Available design | Top lid/bar runner/forklift guide/with inner divider | ||||
| Available accessories | Wheels/inner PP sheet or PP hollow sheet/bag | ||||
| Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot-dip galvanized/powder coating | ||||
| Remark | Customized or OEM support | ||||
| Product Features |
1.Collapsible-save space when not in use, ideal for return journeys ventilation and cleanness. 5. Easily moved around by forklift, even when fully loaded |
||||
