| Material: | Hot Galvanized Wire | Wire Diameter: | 0.2 - 6.0 Mm |
|---|---|---|---|
| Zinc Coating: | 60 Grams | Coil Weight: | 25 Kgs |
| Packing: | Plastic Film Inside, Hessian Cloth Outside | Tensile Strength: | 350 - 550 MPa |
| Email: | Devin@industrialmetalmesh.com | Whatsapp: | +8615369013183 |
| Highlight: | annealed binding wire,binding wire gauge |
||
Standard galvanized binding wire features superior zinc coating compared to electro galvanized wire, providing enhanced corrosion resistance.
Mild carbon steel, high carbon steel

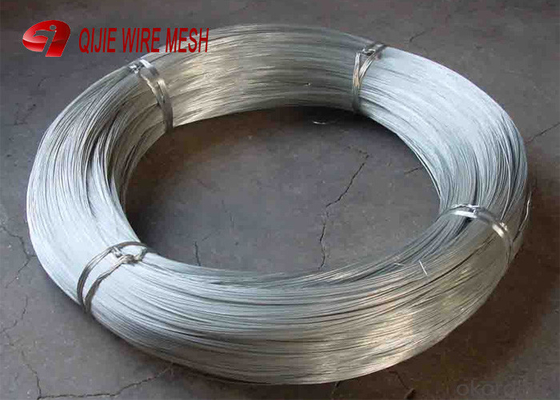

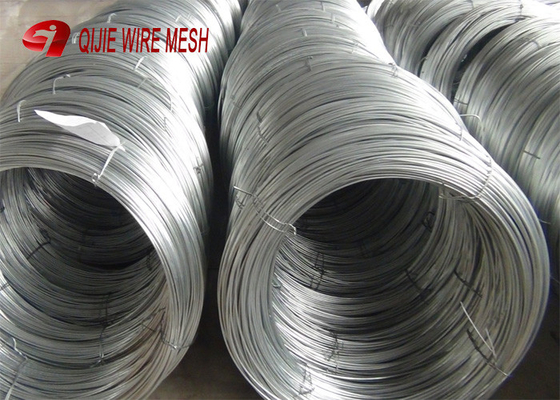

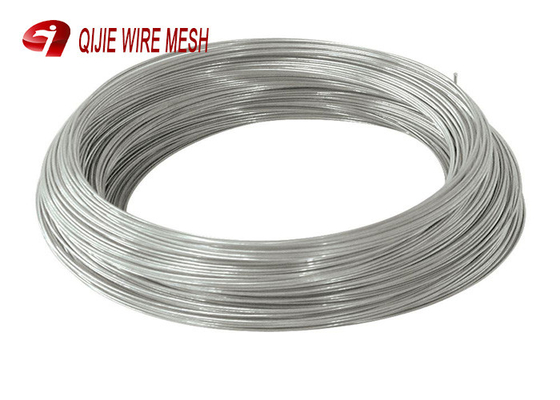

Available in coils ranging from 0.7kgs/coil to 800kgs/coil. Each coil is wrapped inside with PVC strips and outside with Hessian cloth or inside with PVC strips and outside with weaving bag.
| Product Specifications | |
|---|---|
| Steel Grade | Q195 |
| Coil Weight | 1kg-1000kgs/coil (customizable) |
| Diameter | 0.15-5.0mm |
| Zinc Coating | Electric: 8-20g/mm², Hot dipped: 60-300g/mm² |
| Tensile Strength | 350-550N/mm² (soft), 600-900N/mm² (hard) |
| Primary Applications | Construction binding, wire ties, wire mesh weaving |
| Standard Packing | Plastic film with woven bags or hessian cloth |
| Wire Gauge | SWG (mm) | BWG (mm) | Metric (mm) |
|---|---|---|---|
| 8 | 4.05 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | 4.00 |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | 2.50 |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.84 | 0.90 |
| 21 | 0.81 | 0.81 | 0.80 |
| 22 | 0.71 | 0.71 | 0.70 |
