Razor Wire Builds Better Security Barrier Fencing

Razor Wire Builds Better Security Barrier Fencing
Razor Wire Builds Better Security Barrier Fencing Razor Wire Builds Better Security Barrier Fencing

Large Image :  Razor Wire Builds Better Security Barrier Fencing

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: CBT65
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Inside waterproof paper , outside plastc weaving bags or carton box
Delivery Time: 15-25days
Payment Terms: 30%TT
Supply Ability: 100ton per week
Detailed Product Description
Surface Treatment: Hot Dipped Galvanized Type: BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28, BTO-30,CBT-60,CBT-65
Loops: 56 Loops , 33 Loops , 55 Loops , 144 Loops Clips: 5clips , 3 Clips , Without Clip
Packing: Inside Waterproof Paper Material: Hot-dipped Galvanized , Stainless Steel 430,
High Light:

annealed binding wire


galvanized tie wire

Concertina Razor Wire, Razor Wire Fence, Razor Barbed Wire

Razor wire and concertina wire are our feature products for security protection. Our products include razor concertina wire, flat wrap coils, welded, spiral razor wire and razor barriers security fencing. They are made out of galvanized wire, PVC coated wire, stainless steel mesh materials. Our anti-piracy razor wire blade includes fish-hook blade, long blade, tear blade, medium blade and short blade.
Manufacture process: First, galvanized steel coils and steel wire are prepared as the material. Then, cutting galvanized steel coils to barbed tape, after cutting, razor barbed tape tightly crimped around the steel wire forming razor wire. The following two images are the barbed tape and steel wire state of before crimped and after crimping.
Packing: simple packing and carton packing.
Simple packing: inside is water proof paper and outside is woven bags and then compression. It is mainly for BTO-10, BTO-12, BTO-22, BTO-30 and CBT-25.
Carton packing: razor mesh coils are loading into hard cartoon boxes, it is mainly application to CBT-65, CBT-60.
Razor wire fencing and concertina wire are ideal material to protect your fields and property. Our razor wire can be used to create effective barriers around various objects, and it is usually used in civil, military and special purpose. Our customers include military organization, electricity, water, mining industry, gas stations.
Concertina razor wire can be installed to erect a sturdy physical barrier with varying height, width and thickness. It is common installed on the ground or on the walls, as well as on welded wire fence and chain link fence. Razor wire fence installation styles are also in this website.
From this website, you will found all information about our products: from razor wire history to specification, from blade type to mobile razor wire security barrier, from concertina coil to razor fence installation, from production process to package, from selection to application.

Razor Wire Builds Better Security Barrier Fencing 0

The most popular products and specifications

  • Mobile security barriers with deploy from 75-300 m in 20-30 sec, 3 coils in pyramid shape (2 lower+ 1 upper), and heavy duty clips used to enforced spiral razor wire. It can deploy in straight, curved or zigzag line, and the razor wire coils can be deployed and recovered for many times of uses.
  • 15 m × 450 mm razor strip rolls used for a prison.
  • Concertina barbed wire -galvanized wire/stainless wire: CBT-65, BTO-12, BTO-18, BTO-22, Roll with diameter 300 mm/450 mm.
  • Concertina barbed tape ( with heavy duty clip 23.5 mm lay 19 mm wide blades stretch distance) 12.0 m coils, coil diameter before stretching 600 mm and after stretching 550 mm.
  • Concertina razor coils: BTO-22, 350 mm single coil, 500 mm cross type, 600 mm cross type.
  • Heavy galvanized concertina tape 450 mm coil diameter, 10 meter coils.

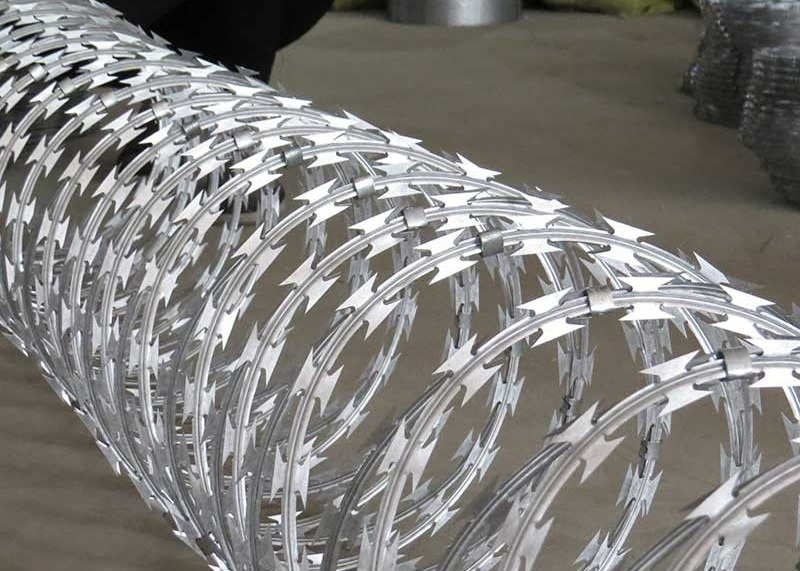

  • Galvanized razor fencing wire bto22 installed on the top of a rod iron fence.
  • 980 mm diameter stainless steel razor coil and flat concertina 900/22.
  • Hot-dipped galvanized single coil razor barbed wire Ø750 mm, wire diameter 2.5 mm ± 0.10 mm/thickness 0.5 mm ± 0.05 mm.

We manufacture razor concertina wire chiefly in following five blade:

Razor Wire Fish-hook Blade

Fish-hook blade
Fish-hook blade is the metal in the middle that has gone through the most gyrations. All hooks have an eye to tie your line to, a sharp tip to pierce the fish's mouth and a barb to hold it in place. Although there are a wide variety of innovations in point design, it's the shank & the bend that have changed the most.

Razor Wire Long Blade

Long blade
Razor wire long blade is a vicious product. It is usually used for prison fencing. Extra long blade razors provide maximum frightening effect.

Razor Wire Tear Blade

Tear blade
Tear blade is an hybrid of medium blade and long blade, more vicious than a medium blade and more economical than long blade.

Razor Wire Medium Blade

Medium blade
Concertina wire medium blade is an improvement on the short blade variety at a cost-effective price level. It is used widely for commercial and industrial applications. Medium blade concertina wire had a much sharper edge.

Razor Wire Flat Wrap

Short blade
Short blade is the original profile of razor wire barbed tape, developed for military applications. Although mostly replaced by medium blade, it is still preferred by some organizations.
All the specification and packing can be designed according to the customers need.

ModelThicknessWire diaBarb LengthBarbed Width
Barb Spacing
BTO-100.5+/-0.05 mm2.5+/-0.1mm10+/-1mm13+/-1mm26+/-1mm
BTO-120.5+/-0.05 mm2.5+/-0.1mm12+/-1mm15+/-1mm26+/-1mm
BTO-180.5+/-0.05 mm2.5+/-0.1mm18+/-1mm15+/-1mm38+/-1mm
BTO-220.5+/-0.05 mm2.5+/-0.1mm22+/-1mm15+/-1mm38+/-1mm
BTO-280.5+/-0.05 mm2.5+/-0.1mm28+/-1mm15+/-1mm53+/-1mm
BTO-300.5+/-0.05 mm2.5+/-0.1mm30+/-1mm21+/-1mm54+/-1mm
CBT-600.6+/-0.05 mm2.5+/-0.1mm60+/-2mm32+/-1mm102+/-1mm
CBT-650.3+/-0.05 mm2.5+/-0.1mm65+/-2mm21+/-1mm102+/-1mm
Outside diameterNo. of loopsThe utmost effective lengthTypeNotes
450 mm337 - 8 MCBT 60.65Single coil
500 mm5612 - 13 MCBT 60.65Single coil
700 mm5613 - 14 MCBT 60.65Single coil
960 mm5614 - 15 MCBT 60.65Single coil
450 mm568 - 9 M (3 CLIPS)BTO - type
500 mm569 - 10 M (3 CLIPS)BTO - type
600 mm5610 - 11 M (3 CLIPS)BTO - type
600 mm568 - 10 M (5 CLIPS)BTO - type
700 mm5610 - 12 M (5 CLIPS)BTO - type
800 mm5611 - 13 M (5 CLIPS)BTO - type
900 mm5612 - 14 M (5 CLIPS)BTO - type
960 mm5613 - 15 M (5 CLIPS)BTO - type
980 mm5614 - 16 M (5 CLIPS)BTO - type

welded razor wire mesh
