Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground

Certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
Customer Reviews
Yes we have received the reinforcing mesh and we are pretty happy with the quality. Many thanks! Chris

—— Chris Johnson

I have been ordering powder coated T 316 fly screen mesh from Qijie; unlike others, they never cut orders and always supply quality material to me.

—— Michael Jr. Venida

I had very bad purchasing experience with the previous supplier, for they always postpone shipment time. To my excitement, Qijie is always punctual.

—— Susan Miller

Your product good

—— Jatuporn Tae-Ngug

I'm Online Chat Now

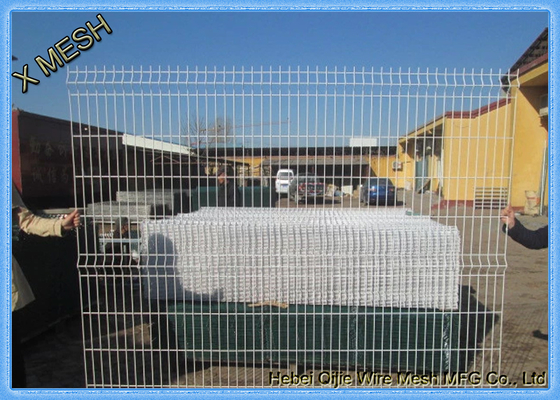

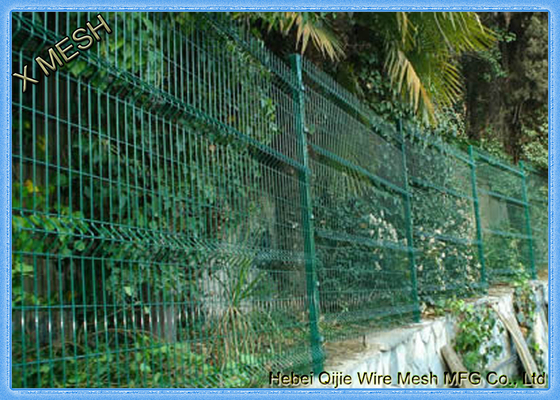

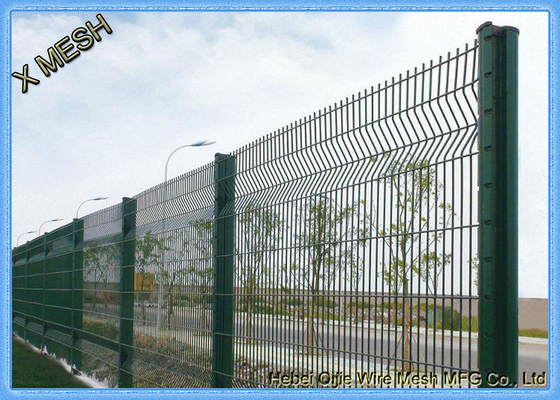

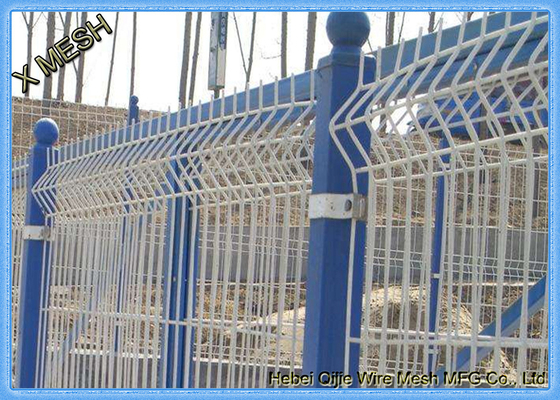

Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground

Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground
Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground

Large Image :  Green Vinyl Coated Decorative 3D Fence Panels Welded Wire Mesh For Playground

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-515
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loose packed or with steel pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: Galvanized Steel Core Wire Wire Diameter: 4.0mm, 4.5mm, 5.0mm
Mesh: 50x150mm, 50x200mm Finish: Powder Coated
Color: Green, Black, White, Orange Size: 2.5 X 1.8 M, 2.5 X 2.1 M, 3.0 X 2.0 M
Type: Fencing,Trellis & Gates,Welded Mesh Feature: Easily Assembled,Eco Friendly,Rodent Proof
Frame Material: Metal Pressure Treated Wood Type: Heat Treated
Surface Treatment: Galvanized+PVC Coated Application: Fence Mesh,Garden,Residential
Product Name: 2D Double Wire Fence 868 Mesh Fence Panels Manufacture,Powder Coating Or Hot Dipped Galvanized Wire Mesh Fence Mesh Size: 50x100mm,75x150mm,200mm*50mm / 150mm*50mm/100mm*50mm
Usage: Protection,Garden Decoration,building,Used,Garden Fence/highway/airport Width: 1500mm ~ 3000mm
Length: 2m/2.5m Or According To Your Request
High Light:

curved metal fence panels

,

curved wrought iron fence

Green Vinyl Coated Decorative Welded Wire Mesh 3D Fence Panels for Playground​


Product descriptions
Nylofor 3D fence are made of high quality steel ,covered with excellent anti corrosion coating to ensure the fence has long time use.

3D fence panels are made of high quality steel ,covered with excellent anti corrosion coating to ensure the fence has long time use.

The panels feature 'V' shaped beams at the top, centre and bottom edges, which not only enhance the appearance but also provide an integral support spanning between the posts.


Nylofor 3D fence is consist of wire mesh fence panel ,fence post and clamp and bolts.

Material: low carbon steel wire.
Colors : green, yellow, black, red ,dark brown etc .
Surface Treatment: electro galvanized, hot dipped galvanized,
pvc coated, powder coated
Application: used for fencing and protection for road, railway, airport,
residence district, seaport, garden, feeding and husbandry etc
Specification:

Appropriate bending creates the unique aesthetic effect of this product, and the surface is coated with various colors, such as yellow, green, red, and the different colors of the column and the mesh are pleasing to the eye. Most of the products use the chassis column, the installation only needs to lay the expansion bolts, which is very fast.



Nylofor 3D Fence Specification:

Material Low carbon steel, hot galvnaized steel
Height 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm
Post distance 2000mm, 2500mm
Wire diameter 4.0mm, 4.5mm, 5.0mm, 6.0mm
Mesh size 50 x 200mm
Post Square post: 50 x 50mm, 60 x 60mm, 80 x 80mm
Rectangle post: 40 x 60mm, 40 x 80mm, 50 x 70mm
Peach post: 50 x 70mm, 70 x 100mm
I post: 44 x 70mm, 55 x 100mm
Surface treatment Low carbon steel+hot dipped galvanized
Hot galvanized steel+powder coated
Hot galvanized steel+pvc coated
Color dark green, black, white, yellow, grey, blue and so on




Specifications of 3D Curved Welded Wire Fence

Height Above
Ground (m)
Panel Size
(mm)
Mesh Size
(mm)
Numbers of
Beams
Post Diameter
(mm)
1.2 1230x2500 50x100/50x200 2 50x70
1.8 1830x2500 50x100/50x200 3 50x70
2.0 2030x2500 50x100/50x200 4 70x100
We can also manufacture the weld mesh fencing as per your dimension of the specification


Drawing of 3D Curved Welded Wire Fence
Drawing of 3D Curved Welded Wire Fence
Drawing of 3D Curved Welded Wire Fence
Drawing of 3D Curved Welded Wire Fence


Curved mesh Panel of 3D curved Mesh Fence

Curved mesh Panel of 3D curved Mesh Fence
Curved mesh Panel of 3D curved Mesh Fence


 Post install of 3d curved mesh fence:



3d peach post
Peach post

square post
square post

Rectangular post
Rectangular post

round post
Round Post

 Post of 3d mesh fence



Install of 3D Security Fence
Install of 3D Security Fence

Benefits Of Nylofor 3D Fence:

Very high rigidity
The heavy wire 3D bend panel with 8mm horizontal wires provide added strenth and rigidity.

High degree of security
Nylofor 3D Super is recommended as fencing for applications where security is crucial as the small apertures and heavy wires give a high degree of security.

Durability
The galvanised heavy wire panel is sealed with an adhesion expoxy coating prior to the PVC coating ensuring a longer lifespan.

Long lifetime
The coating technology of Betafence guarantees an extra high longevity.
After galvanizing a special layer is applied for a perfect adhesion of the PVC coating.

Complete system
The system includes panels in different mesh apertures and heights, posts with adapted fixator systems and a large range of gates.
All components guarantee a fast and professional installation.

Aesthetics and Architecture
The design of the fence is appealing to upmarket and hi-tech architecturally designed applications. Its versatility and unique characteristics make this a superior system in a class of its own, never compromising on security or quality.



3D Curved Welded Wire Fence-C0001
3D Curved Welded Wire Fence-C0001

3D Curved Welded Wire Fence-C0002
3D Curved Welded Wire Fence-C0002

3D Curved Welded Wire Fence-C00033D Curved Welded Wire Fence-C0003

3D Curved Welded Wire Fence-C0004
3D Curved Welded Wire Fence-C0004




Perimeter Coated Welded Wire Fence Steel-P0005
Perimeter Coated Welded Wire Fence Steel-P0005

Perimeter Coated Welded Wire Fence Steel-P0006
Perimeter Coated Welded Wire Fence Steel-P0006

Perimeter Coated Welded Wire Fence Steel-P0007
Perimeter Coated Welded Wire Fence Steel-P0007

Perimeter Coated Welded Wire Fence Steel-P0008
Perimeter Coated Welded Wire Fence Steel-P0008
