Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh

Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh
Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh

Large Image :  Flattened Expanded Metal Mesh AISI304 And AISI316 Stainless Steel Stretched Sheet Decorative Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-708
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loosed packed or palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 5000 pcs one month
Detailed Product Description
Material: Mild Steel Sheet Thickness: 1.0 - 5.5 Mm
Mesh: 30 X 60 Mm, 50 X 100 Mm Surface Finish: PVC Coated
Hole Shape: Diamond Size: 1.0 X 2.0 M, 1.2 X 2.4 M, 1.0 X 30 M
High Light:

expanded metal lath

,

expanded mesh sheet

Flattened Expanded AISI304 and AISI316 Stainless Steel Stretched Sheet Decorative Mesh



Product descriptions

Expanded Stainless Steel Mesh has many advantages over expanded steel as it offers much better corrosion resistance and longer service life. SS expanded sheet and foils are widely used as battery netting, filtration sheet and decorative mesh uses. SS304 and 316 Expanded Meshes are new decorative mesh favored in modern architectural design.



Expanded Metal is a rigid, non-raveling piece of metal that has been slit and expanded. In the expanding process, metal can be expanded ten times its original size, lose up to 80% of its weight, becoming stronger and more rigid. No material is lost in the manufacturing process.



SS 304 and 316 Series Expanded Plates are supplied with a variety of openings:

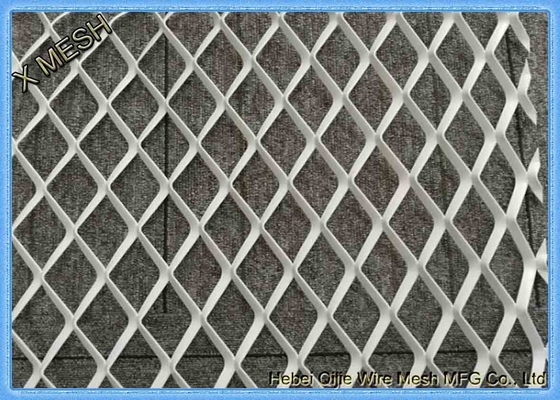

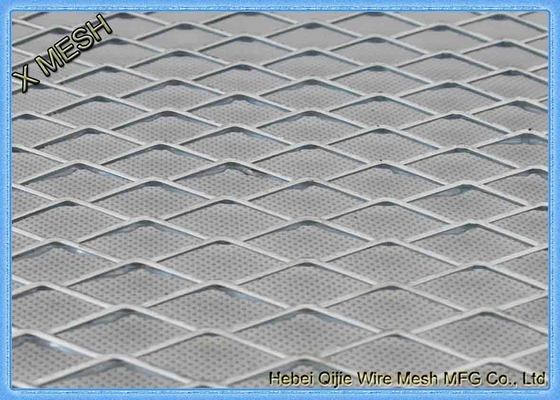

1, Standard Rhombic Shaped / Diamond Shaped

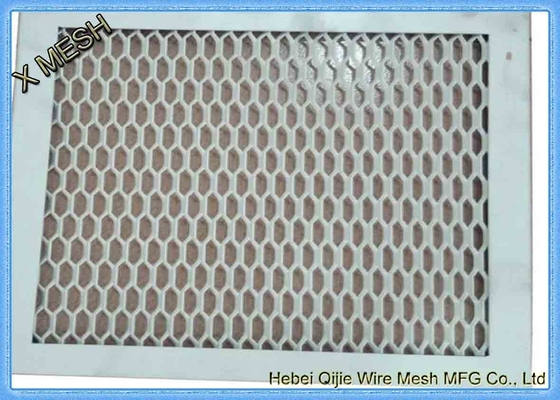

2, Heavy Type (Tortoise-shaped)
3, Flattended Type
4, Micron / Micro Opening
5, Special Type



expanded metal mesh



Features:
It is easily processing, has uniform stretched holes and has versatile applications.

Flat metal mesh sheet offers high rigidity in a variety of sizes and weights. The angles of the diamond strands allow maximum air circulation and distribute stress on the metal to supporting frames. The galvanized steel and black steel expanded diamond mesh is the most versatile expanded sheet materials. It can be made with different hole apertures and metal thicknesses to suit specific individual applications.



Uses: Standard Diamond Mesh fabricated from low carbon steel plates is ideal for use wherever a strong, durable, lightweight surface is needed, some of typical uses as following:

• Sunshade and Ventilation Screening effect - light and vision can be controlled
• Processed in forms of angle beads or corner beads. Working as A reinforcing agent - in concrete, plaster and wall buildings.
• Heat conduction and diffusion sheet - for grills and high temperature processing
• Security and safety - for fencing, cages and enclosures, machine guarding, shielding panels
• Architectural Cladding Panels - for protection and decoration of roof, wall, facade and interior and exterior partitions.



SS 304 and 316 Series Expanded Plates

SS 304 and 316 Series Expanded Plates





Specifications:

Sheet Thickness (mm) Opening in Width (mm) Opening in Length (mm) Stem (mm) Roll Width (mm) Roll Length (mm) Weight (kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26





Expanded Metal Mesh for Decoration-E0001

Expanded Metal Mesh for Decoration-E0001

Expanded Metal Mesh for Decoration-E0002

Expanded Metal Mesh for Decoration-E0002

Expanded Metal Mesh for Decoration-E0003

Expanded Metal Mesh for Decoration-E0003

Expanded Metal Mesh for Decoration-E0004

Expanded Metal Mesh for Decoration-E0004







304 Stainless Steel Expaned Mesh Netting

304 Stainless Steel Expaned Mesh Netting




SS 316,SS 304,SS Stainless Steel Flattened Expanded Metal

SS 316,SS 304,SS Stainless Steel Flattened Expanded Metal
