Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips

China Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips supplier
Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips supplier Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips supplier Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips supplier Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips supplier

Large Image :  Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: CBT65

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Inside waterproof paper , outside plastc weaving bags or carton box
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 100ton per week
Contact Now
Detailed Product Description
Surface Treatment: Hot Dipped Galvanized Type: BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28, BTO-30,CBT-60,CBT-65
Loops: 56 Loops , 33 Loops , 55 Loops , 144 Loops Clips: 5clips , 3 Clips , Without Clip
Packing: Inside Waterproof Paper Material: Hot-dipped Galvanized , Stainless Steel 430,

Stainless Steel Cbt-60 Crossed Razor Wire Security Fence



Razor wire
Also known as the blade stinging, snake belly, blade gill net, net scraper type stinging, accordion gill net, accordion stinging

Cross razor wire spiral is between two razor wire in stainless steel sheet and galvanized sheet steel strong clip, unfolds the cross shaped, beautiful and practical.

Straight razor wire, set up many ways to choose from, fast construction, save money, and can achieve the result that deter.

Barbed Tape Wire Specification
outside outside No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22

Cross typ




Product features: anticorrosion, prevent aging, sun resistance, weather resistance, etc. Corrosion forms of electroplating, hot dip.
Mesh:

Conductor material: high quality, hot dip galvanized high carbon steel wire, stainless steel wire, etc.

Blade material: high quality, hot dip galvanized steel plate, stainless steel plate.

Process: it USES the steel plate (dao) package attached stamped on the hot dip galvanized steel wire (core), made the blade sharp Angle of galvanized steel or stainless steel sheet, high tensile steel wire do a mix of conducto

Features:
Razor wire and stinging scraper type, is a kind of protective developed in recent years, the capability of isolation of new fence products. A sharp knife stab type by double occurs after snapping into shape, are beautiful and chilling. Has played a very good deterrent effect. Beautiful and practical

USES:
Countries around the world have razor wire is widely used in military stronghold, prison, government agencies, Banks, and residential fence, private house, villa walls, doors and Windows, highway, rail barrier and border to security protection



Razorwire Specs – Stainless Steel 304

RAZORWIRE DIAMETER 730MM 500MM
LENGTH EXT 10M 10M
RAZOR WIRE DESIGN CONCERTINA CONCERTINA
MATERIAL STAINLESS STEEL 304 STAINLESS STEEL 304
BLADE STYLE BTO 22 BTO 22
BLADE THICKNESS 0.5MM 0.5MM
WIRE DIAM 2.5MM 2.5MM
BARB LENGTH 22MM 22MM
BARB WIDTH 15MM 15MM
BARB SPACING 34MM 34MM
LOOPS PER COIL 54/55 54/55
CLIPS PER LOOP 5 3





Razorwire Specs – Galvanised Steel 200g/m2

RAZORWIRE DIAMETER 900MM 730MM 450MM
LENGTH EXT 10M 10M 10M
RAZOR WIRE DESIGN CONCERTINA CONCERTINA CONCERTINA
MATERIAL GALVANISED 200G/M2 GALVANISED 200G/M2 GALVANISED 200G/M2
BLADE STYLE CBT65 CBT65 CBT65
BLADE THICKNESS 0.6MM 0.6MM 0.6MM
WIRE DIAM 2.5MM 2.5MM 2.5MM
BARB LENGTH 65MM 65MM 65MM
BARB WIDTH 21MM 21MM 21MM
BARB SPACING 100MM 100MM 100MM
LOOPS PER COIL 54/55 54/55 54/55
CLIPS PER LOOP 5 5 3

Choosing your Razor wire

The bigger the diameter the more of an obstacle and deterrent the Razor wire is. 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 730mm or even 900mm diameter will require specially made brackets for the installation.

If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razorwire or alternatively stack smaller diameter Razorwire on top of each other either vertically or in a pyramid fashion.



Stainless Steel Cbt-60 Crossed Razor Wire Security Fence with Clips





Points to note when selecting Razor Wire

  • The core wire diameter:
    2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
  • The number of loops per coil
    This determines the amount of Razorwire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razorwire.
  • Stainless Steel or Galvanised?
    The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is considerably more expensive but offers greater durability especially in salt air environments and over time will outlast Galvanised therefore making it the best long term option in salt air. However Galvanised is more than adequate for most UK regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
  • Blade type
    Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent, larger blade profiles such as CBT65 (65mm) are much more effective but the blade type will also be reflected in the price.
  • Blade thickness
    0.5mm is the industry standard, anything less is likely to bend easily.





razor wire loading

razor wire loading

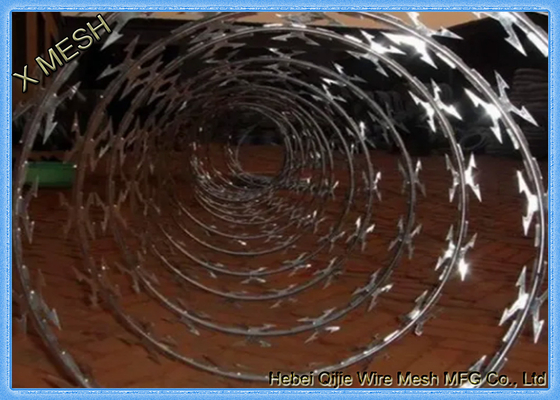

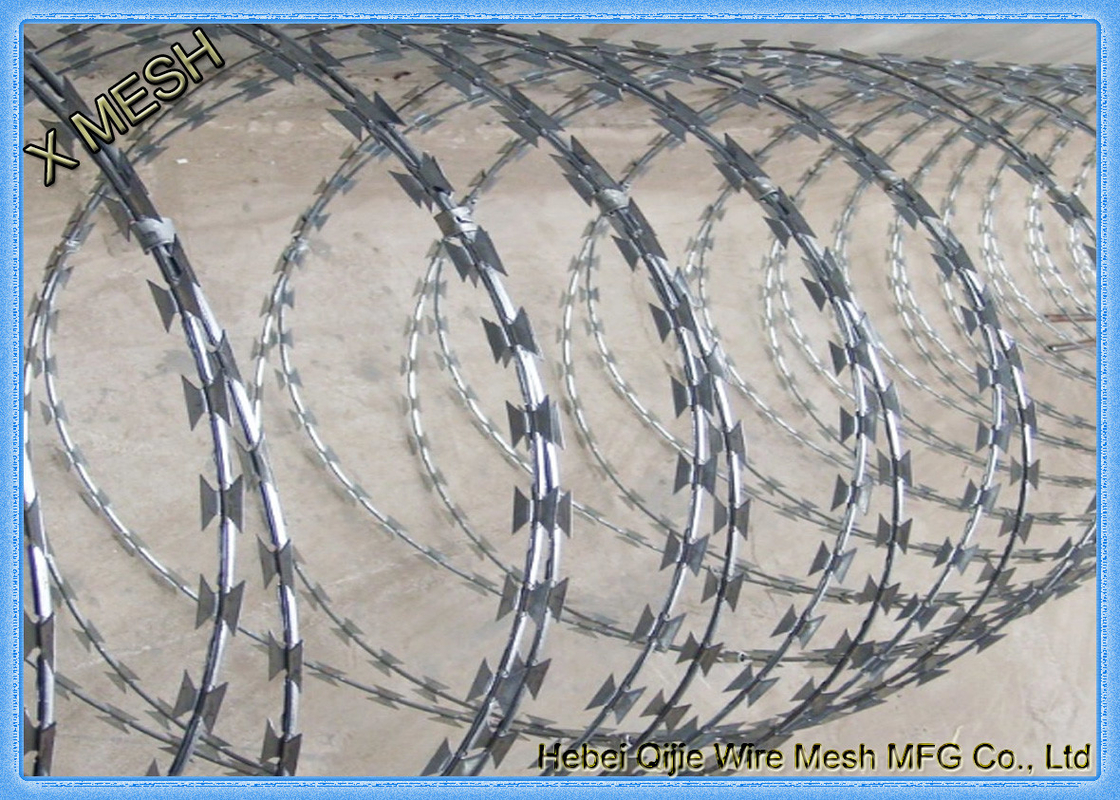

concertina razor wire when pull open

concertina razor wire when pull open

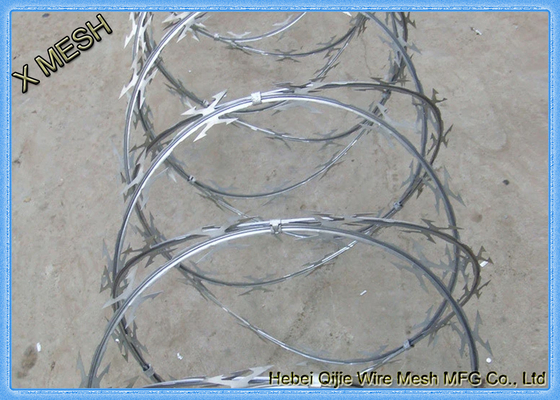

razor wire with clips

razor wire with clips
